2016 Kawasaki Z800 ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

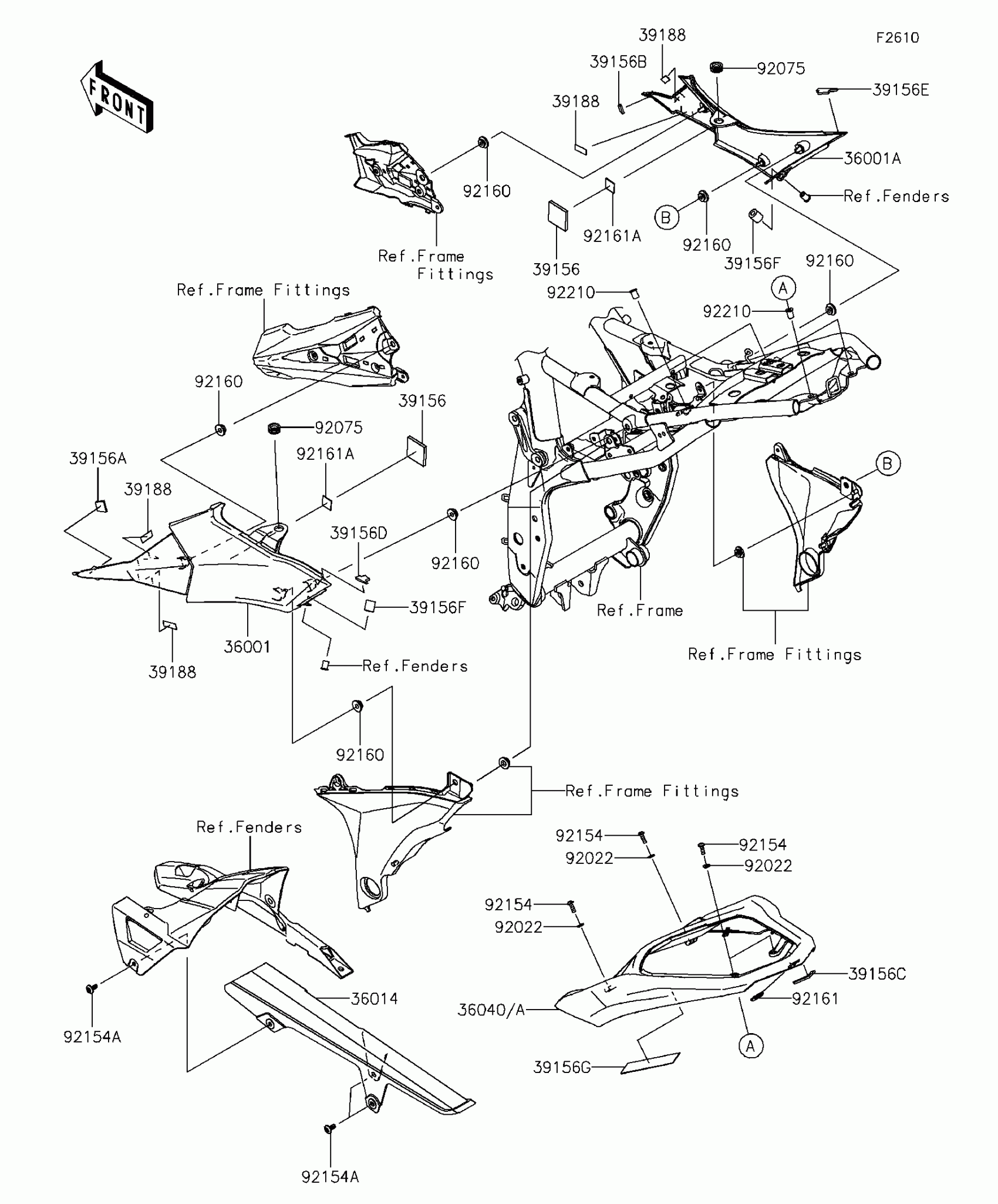

2016 Kawasaki Z800 ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH

36001-0596

1
Out of stock

36001A

COVER-SIDE,RH

36001-0597

1
Out of stock

36014

CASE-CHAIN

36014-0025

1
Out of stock

36040

COVER-TAIL,M.S.BLACK

36040-0139-660

1
Out of stock

36040A

COVER-TAIL,C.P.BLUE

36040-0139-723

1
Out of stock

39156

PAD

39156-0292

1
Out of stock

39156A

PAD,SIDE COVER,LH,R END

39156-0970

1
Out of stock

39156B

PAD,SIDE COVER,RH,R END

39156-0971

1
Out of stock

39156C

PAD,TAIL COVER,END

39156-0972

1
Out of stock

39156D

PAD,SIDE COVER,LH,EDGE

39156-1723

1
Out of stock

39156E

PAD,SIDE COVER,RH,EDGE

39156-1724

1
Out of stock

39156F

PAD,8X16X17

39156-1725

1
Out of stock

39156G

PAD,35X110

39156-1764

1
Out of stock

39188

TAPE,10X30X0.5

39188-0559

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0026

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,20X20,T1.0

92161-1431

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock
