2005 Kawasaki Z750S Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

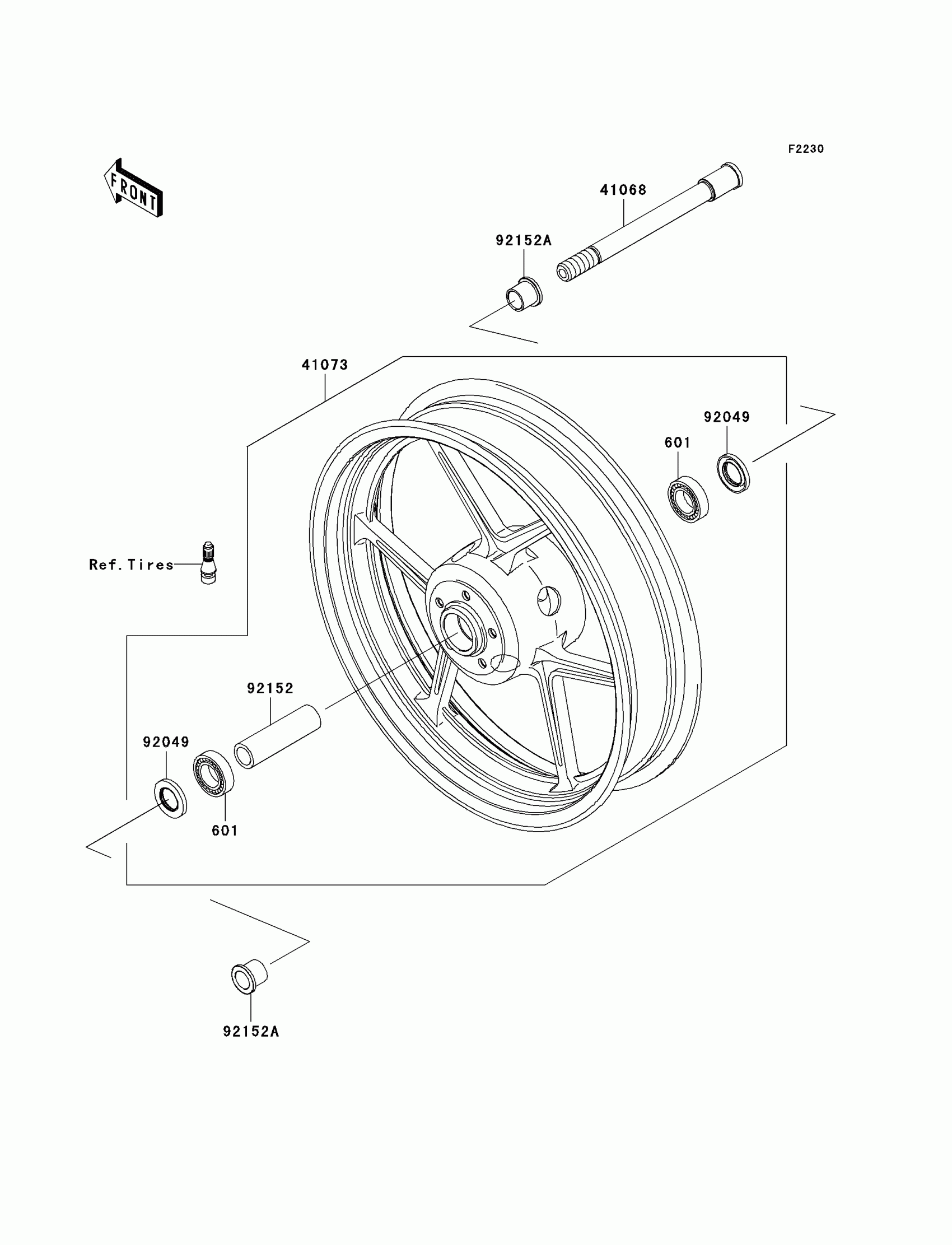

2005 Kawasaki Z750S Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

1

$26.40

In stock

41068

AXLE,FR

41068-0038

1
Out of stock

41073

WHEEL-ASSY,FR,GRAYSTONE

41073-0015-2A

1

$1,115.37

In stock

92049

SEAL-OIL,BJNC2 25425

92049-1203

1
Out of stock

92152

COLLAR,FR HUB,L=98

92152-0068

1

$20.14

In stock

92152A

COLLAR,FR AXLE,L=24

92152-0069

1

$8.58

In stock
← Front Fork Handlebar →
