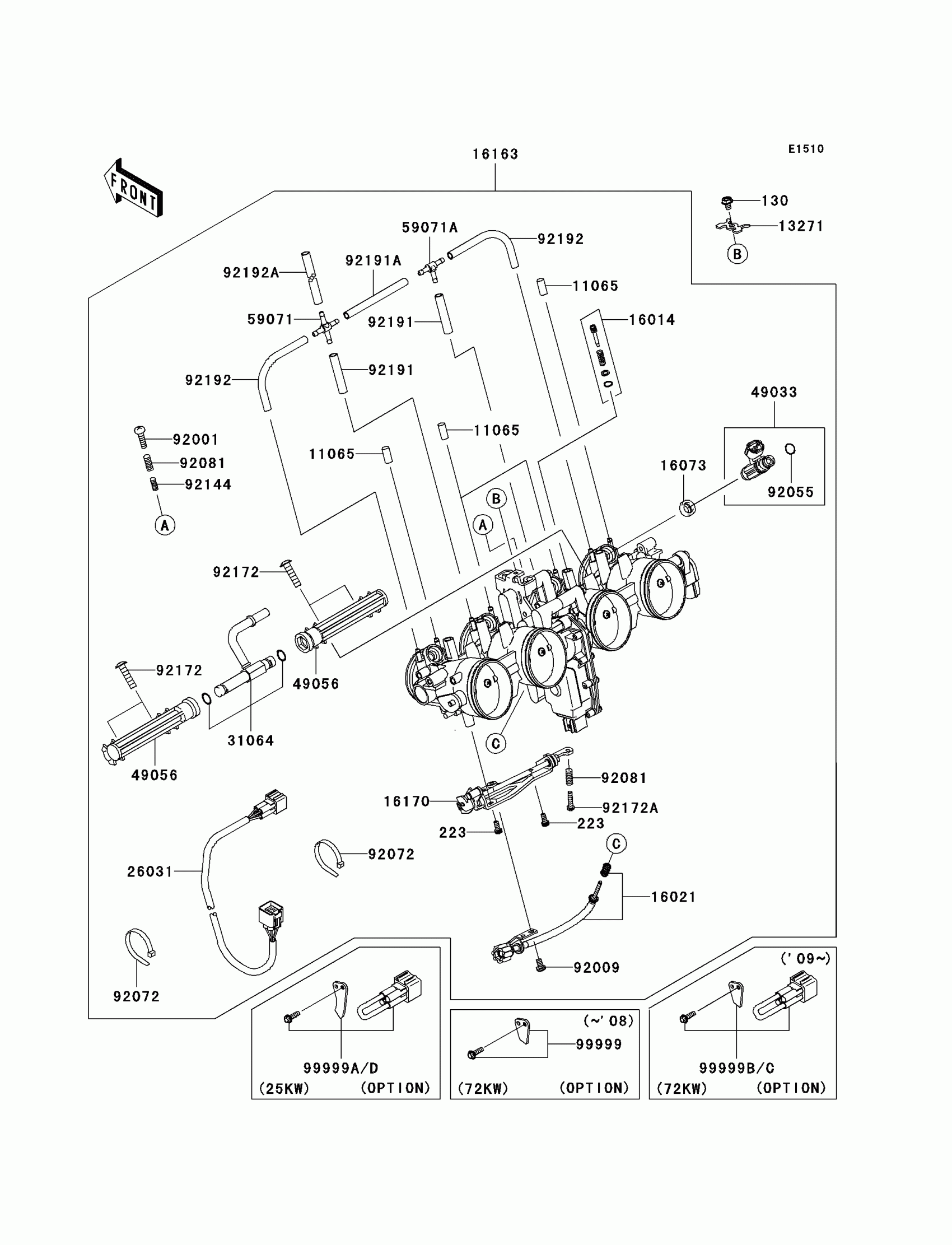

Kawasaki Z750 (European) Throttle Diagram

#

Description
Price

130

BOLT-FLANGED,5X8

130BA0508

$1.53

223

SCREW-PAN-WS-CROSS,4X10

223AA0410

$0.63

11065

CAP

11065-0018

$4.61

13271

PLATE

13271-0056

$3.29

16014

SCREW-PILOT AIR

16014-0002

$20.40

16021

SCREW-THROTTLE STOP

16021-0017

$89.22

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY,TTK32

16163-0081

$2,009.10

16170

LINK-ASSY

16170-0005

$214.62

26031

HARNESS

26031-0313

$89.13

31064

PIPE-COMP,FUEL

31064-0101

$87.48

49033

NOZZLE-INJECTION

49033-0013

$135.42

49056

PIPE-INJECTION

49056-0001

$105.87

59071

JOINT,4WAY

59071-0014

$13.83

59071A

JOINT,3WAY,T

59071-3752

$7.76

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92009

SCREW,5X10

92009-1502

$3.34

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92072

BAND,SUB-HARNESS

92072-0012

$3.81

92081

SPRING

92081-1620

$3.78

92144

SPRING

92144-1451

$9.29

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW,THROTTLE SYNCRO

92172-0065

$2.56

92191

TUBE,3X7X30

92191-0025

$2.00

92191A

TUBE,3X7X82

92191-0036

$4.10

92192

TUBE,3X7X95

92192-0018

$3.22

92192A

TUBE,3X7X170

92192-0019

$12.86

99999C

KIT.,72KW

99999-0268

$45.48

99999D

KIT.,25KW

99999-0269

$21.41
