Description

Price

13087A

HUB-CLUTCH

13087-0048

$166.67

13088

PLATE-FRICTION

13088-1124

$13.84

13089

PLATE-CLUTCH,T=1.6

13089-0005

$10.63

13089B

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089C

PLATE-CLUTCH,T=1.4

13089-1126

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0070

$584.51

13102

RELEASE-COMP-CLUTCH

13102-0007

$68.93

13187

PLATE-CLUTCH OPERATING

13187-0003

$84.26

46102

ROD

46102-0102

$34.26

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER

92026-1497

$10.83

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$25.38

92139

BUSHING,25X38X29.05

92139-0067

$33.07

92145

SPRING,CLUTCH RELEASE

92145-0066

$5.78

92145A

SPRING

92145-0675

$7.29

92145B

SPRING,ROD

92145-1159

$1.87

92154

BOLT,6X50

92154-0176

$4.17

92200

WASHER,11.2X18X0.5

92200-1423

$2.19

92200A

WASHER,12X18.5X0.5

92200-1487

$1.95

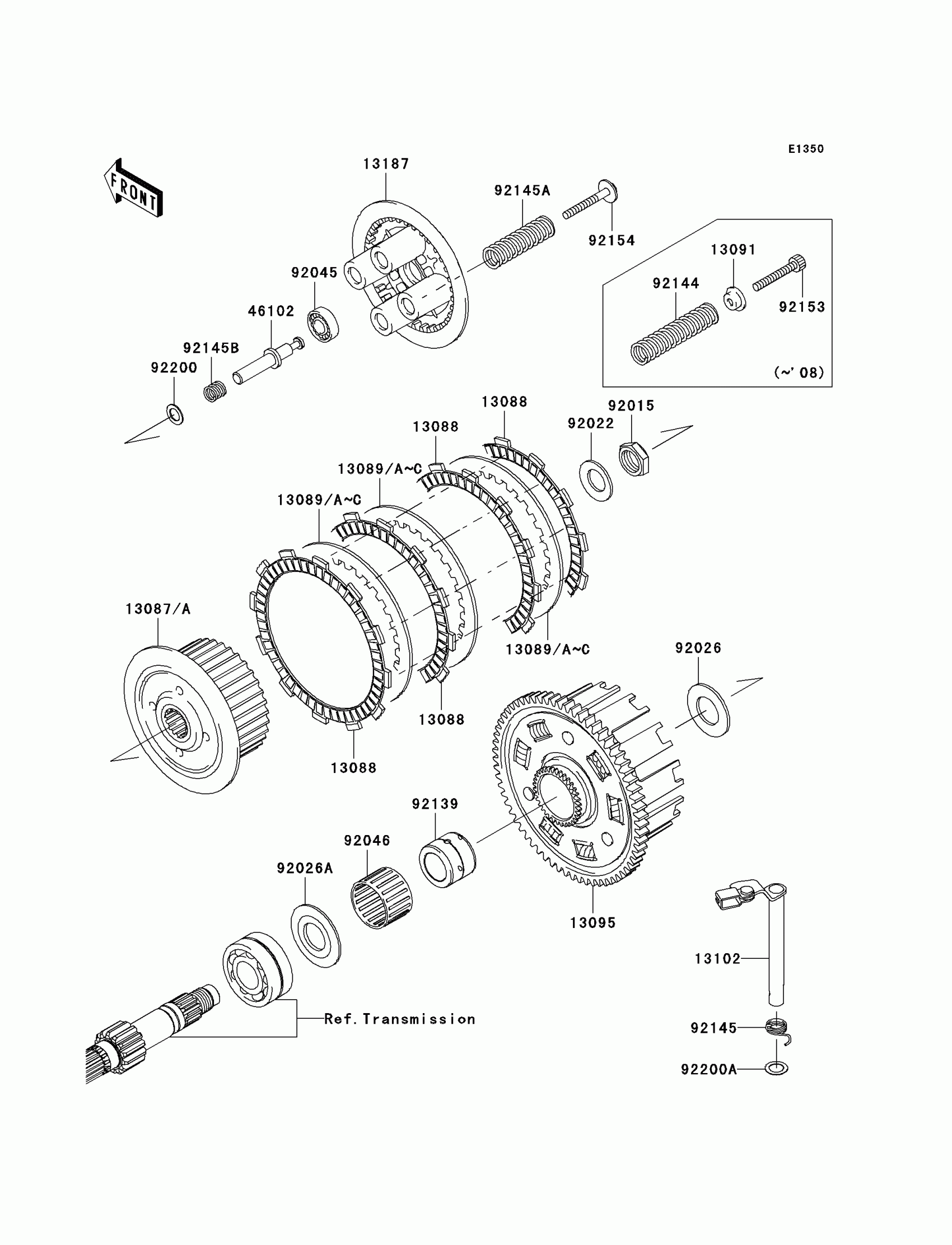

Kawasaki Z750 (European) Clutch Diagram
