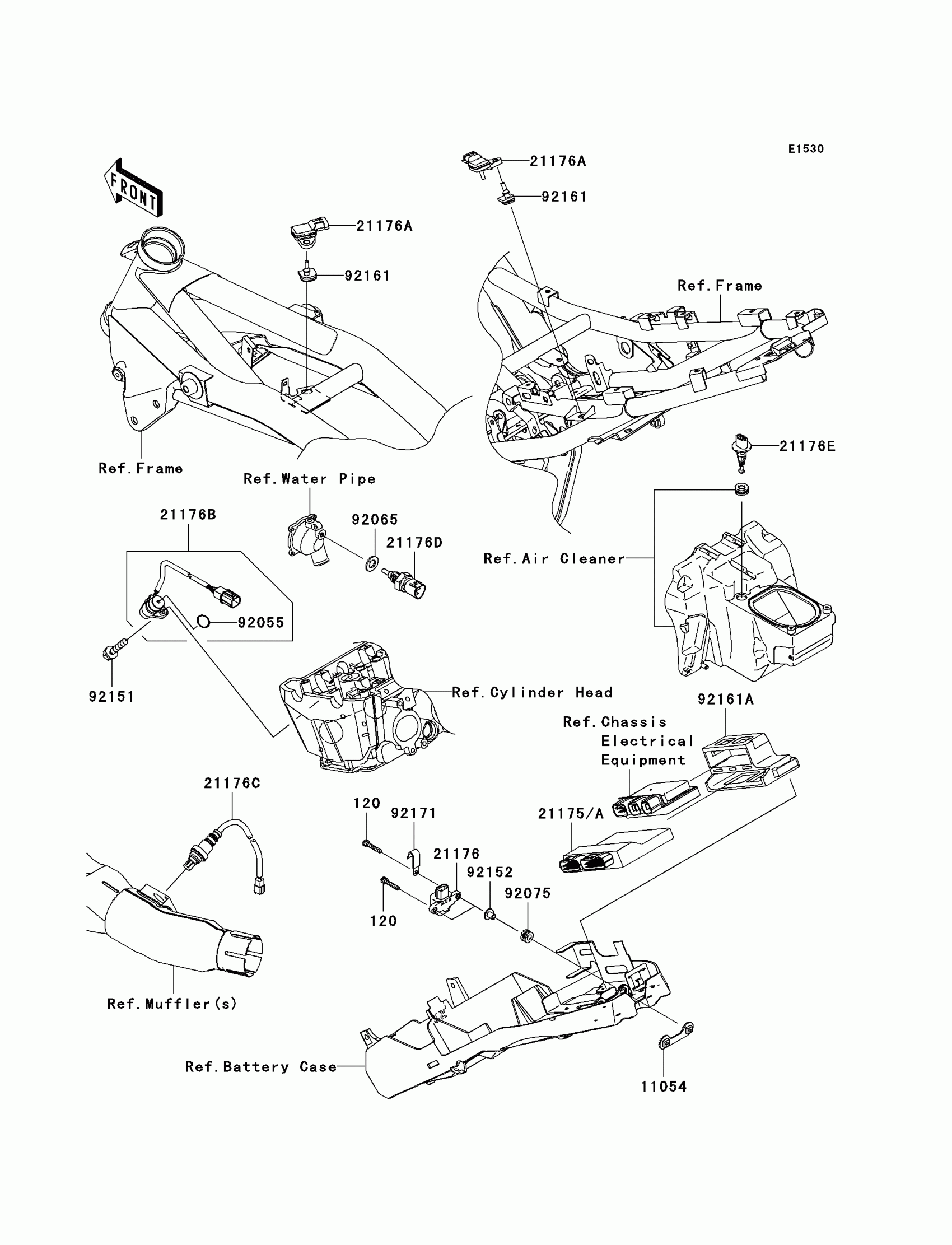

Kawasaki Z750 (European) Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X25

120CA0525

$3.86

11054

BRACKET

11054-1892

$11.83

21175A

CONTROL UNIT-ELECTRONIC

21175-0227

$1,269.74

21176

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176A

SENSOR,PRESSURE

21176-0058

$126.04

21176B

SENSOR,CAM

21176-0064

$117.27

21176C

SENSOR,OXYGEN

21176-0085

Unavailable

21176D

SENSOR,WATER TEMP

21176-1120

$62.85

21176E

SENSOR,AIR TEMP

21176-2106

$19.69

92055

RING-O

92055-1639

$2.15

92065

GASKET,12X22X2

92065-097

$0.66

92075

DAMPER

92075-1912

$5.07

92151

BOLT,FLANGED,6X16

92151-1774

Unavailable

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-0041

$4.59

92161A

DAMPER

92161-0356

$23.93

92171

CLAMP

92171-1539

$1.98
