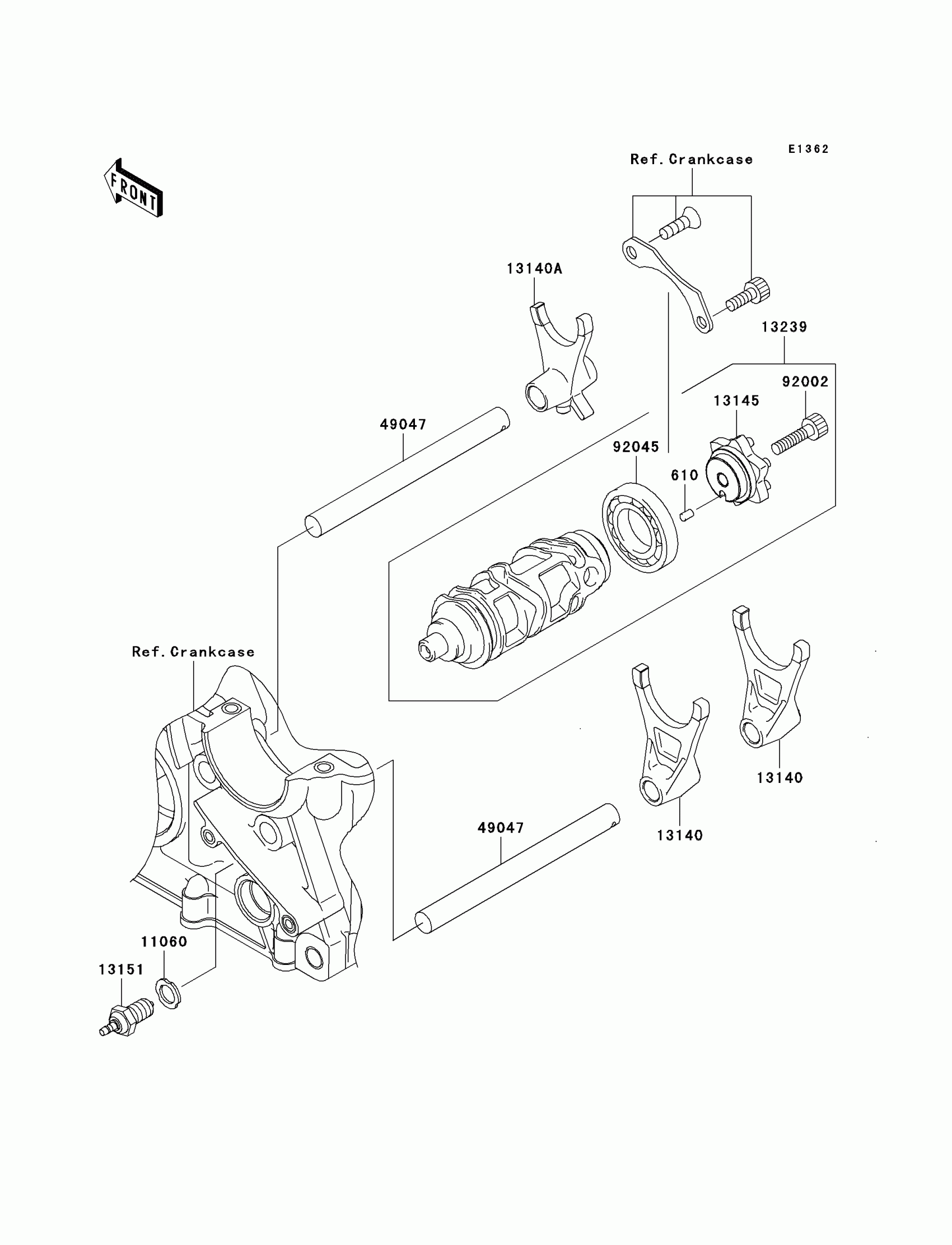

Kawasaki Z750 (European) Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

610

ROLLER,4X6

610A0406

$3.29

11060

GASKET,10.5X16X1.5

11060-1676

$4.39

13140

FORK-SHIFT,OUTPUT

13140-1266

$95.17

13140A

FORK-SHIFT,INPUT

13140-1267

Unavailable

13145

CAM-CHANGE DRUM

13145-0032

$70.53

13151

SWITCH-COMP

13151-1085

$18.09

13239

DRUM-ASSY-CHANGE

13239-0026

$239.03

49047

ROD-SHIFT

49047-0010

$25.86

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

92045

BEARING-BALL,16005

92045-1045

$28.80
