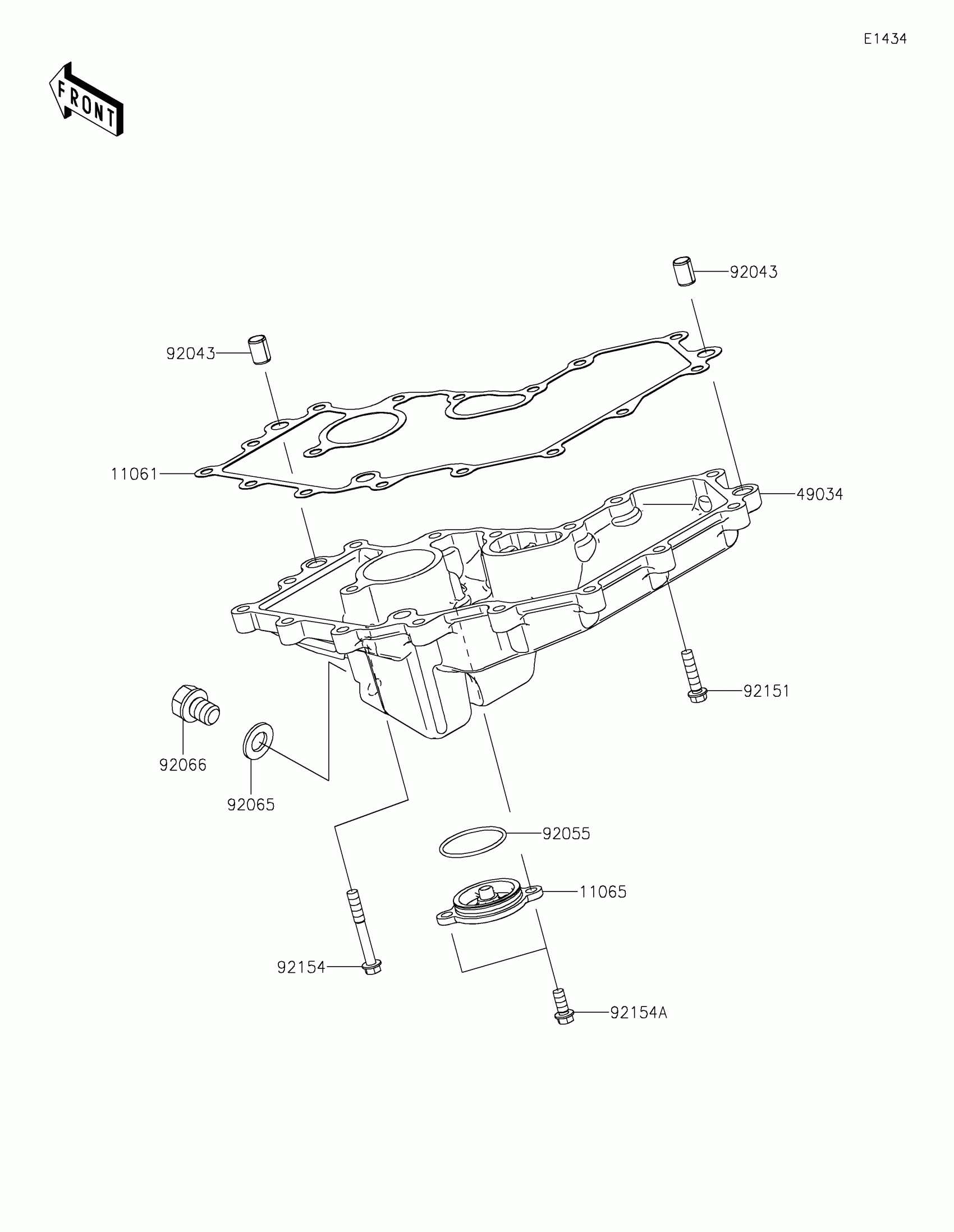

Find the part on the Oil Pan diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z7 Hybrid Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-1440

1

$41.56

In stock

11065

CAP

11065-1493

1

$32.39

In stock

49034

PAN-OIL

49034-0588

1

$152.76

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,35.2X1.9

92055-1761

1

$7.20

In stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

1

$4.88

In stock

92151

1

$2.06

In stock

92154

BOLT,6X45

92154-0246

1
Out of stock

92154A

BOLT,FLANGED,6X14

92154-1925

1

$0.68

In stock
