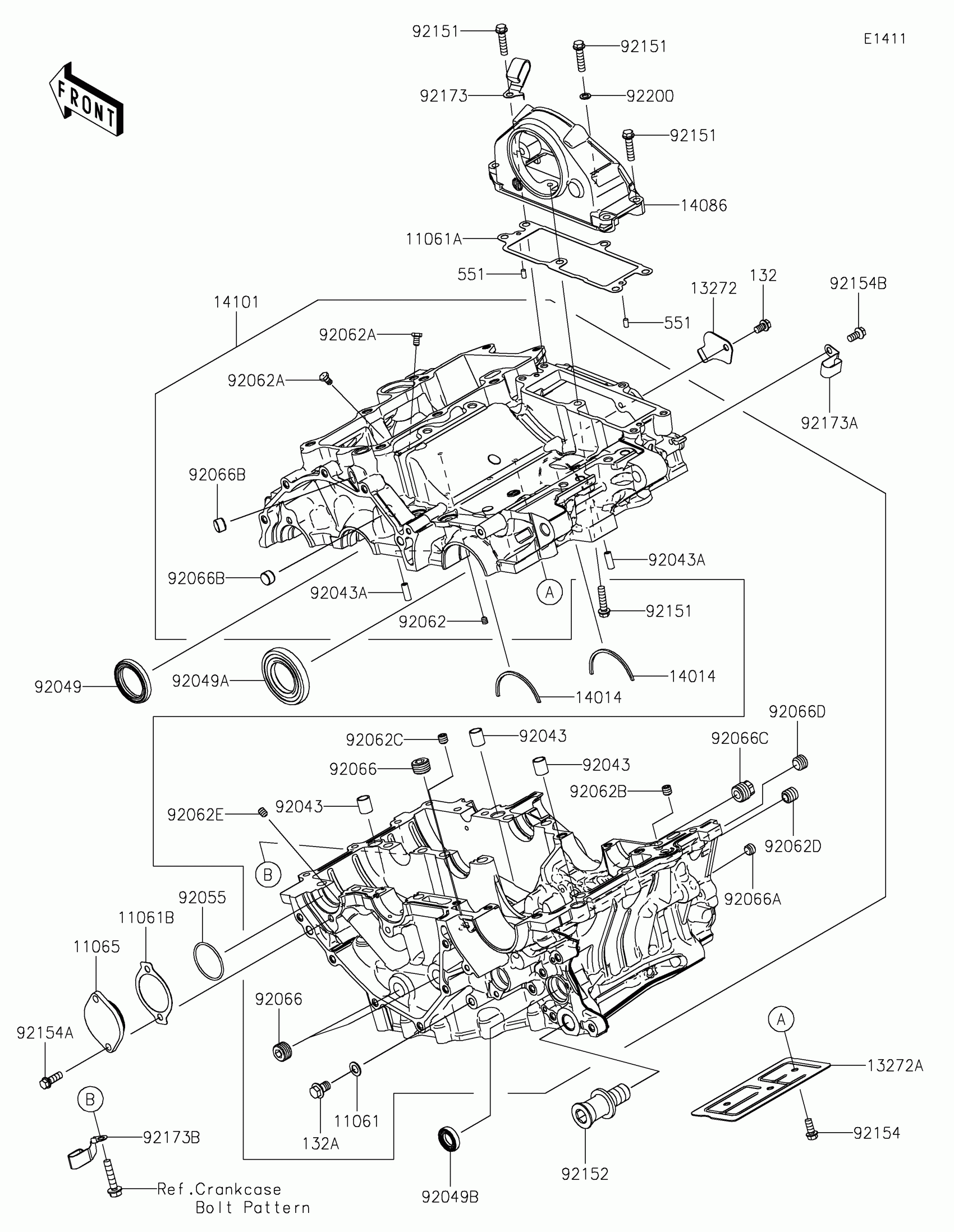

Kawasaki Z7 Hybrid Crankcase Diagram

#

Description
Price

11061

GASKET,8.2X14X1.0

11061-0418

$5.15

11061A

GASKET

11061-1447

$11.29

11061B

GASKET

11061-1600

$4.83

11065

CAP

11065-1465

$25.73

13272

PLATE

13272-4018

$8.44

13272A

PLATE

13272-4019

$12.66

14014

PLATE-POSITION

14014-0576

$1.09

14086

CASE-MOTOR

14086-0001

$66.57

14101

SET-CRANKCASE

14101-0007

$1,046.29

92043

PIN,12X14

92043-0963

$4.93

92043A

PIN,3.5X6X16

92043-1309

$4.18

92049

SEAL-OIL,32X44X6

92049-0871

$16.46

92049A

SEAL-OIL,TC32578

92049-1474

$13.91

92049B

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O,35.2X1.9

92055-1761

$7.20

92062

NOZZLE

92062-0004

$4.00

92062A

NOZZLE

92062-0047

$14.34

92062B

NOZZLE

92062-0579

$9.24

92062C

NOZZLE

92062-0580

$9.24

92062D

NOZZLE

92062-0582

$30.30

92062E

NOZZLE,6X8,YELLOW

92062-1080

$8.37

92066

PLUG

92066-0831

$4.26

92066A

PLUG,PT1/8X7

92066-0863

$5.15

92066B

PLUG

92066-1110

$5.66

92066C

PLUG,MAIN GALLERY

92066-1530

Unavailable

92066D

PLUG

92066-3778

$10.63

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR,ENGINE-MOUNT

92152-2904

$110.36

92154

BOLT,FLANGED,6X14

92154-1426

$1.46

92154A

BOLT,FLANGED,6X18

92154-1775

$0.60

92154B

BOLT,FLANGED,6X12

92154-1777

$0.93

92173

CLAMP

92173-1592

$2.59

92173A

CLAMP

92173-2588

$2.10

92173B

CLAMP

92173-2667

$4.66

92200

WASHER,6.1X10.0X1.0

92200-0190

$1.85

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL

132BA0812

$3.85

551

PIN-DOWEL,4X8

551A0408

$0.68
