2024 Kawasaki Z7 Hybrid Cylinder Head Diagram

← All diagrams

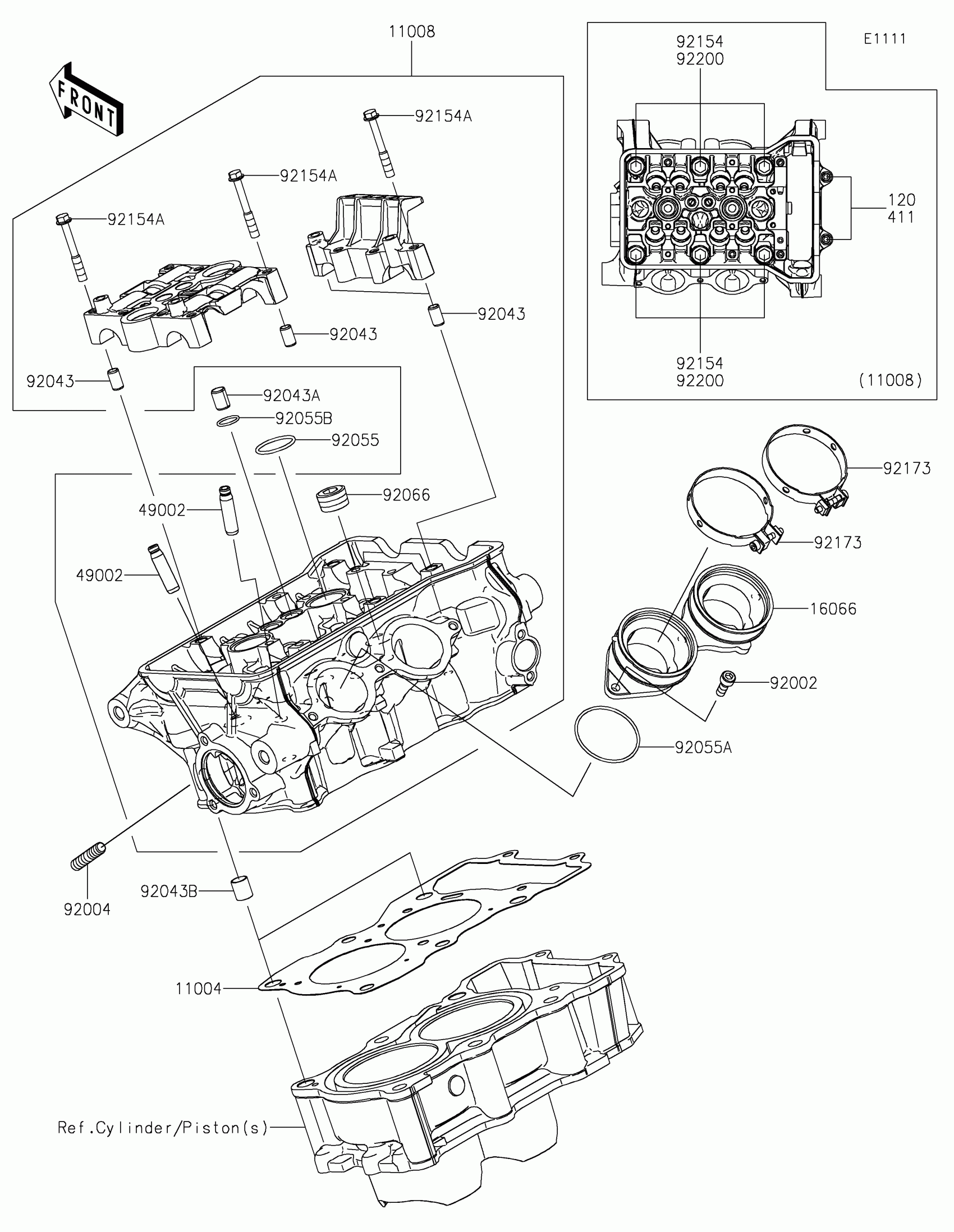

Find the part on the Cylinder Head diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z7 Hybrid Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0805

1

$62.03

In stock

11008

HEAD-COMP-CYLINDER

11008-1497

1

$1,520.41

In stock

16066

1

$73.44

In stock

49002

GUIDE-VALVE

49002-0009

1

$31.33

In stock

92002

BOLT,6X16

92002-1143

1

$3.12

In stock

92004

STUD,8X25

92004-0731

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92043B

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,25.5X2

92055-0074

1
Out of stock

92055A

RING-O,44.5X1.9

92055-0890

1
Out of stock

92055B

RING-O,13.5X1.5

92055-0944

1

$3.59

In stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92154

BOLT,FLANGED,9X138

92154-2732

1

$11.56

In stock

92154A

BOLT,FLANGED,6X45

92154-3737

1

$1.27

In stock

92173

CLAMP,58MM

92173-2669

1

$11.05

In stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock

120

BOLT-SOCKET,6X90

120CC0690

1

$2.64

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
