2024 Kawasaki Z7 Hybrid Front Master Cylinder Diagram

← All diagrams

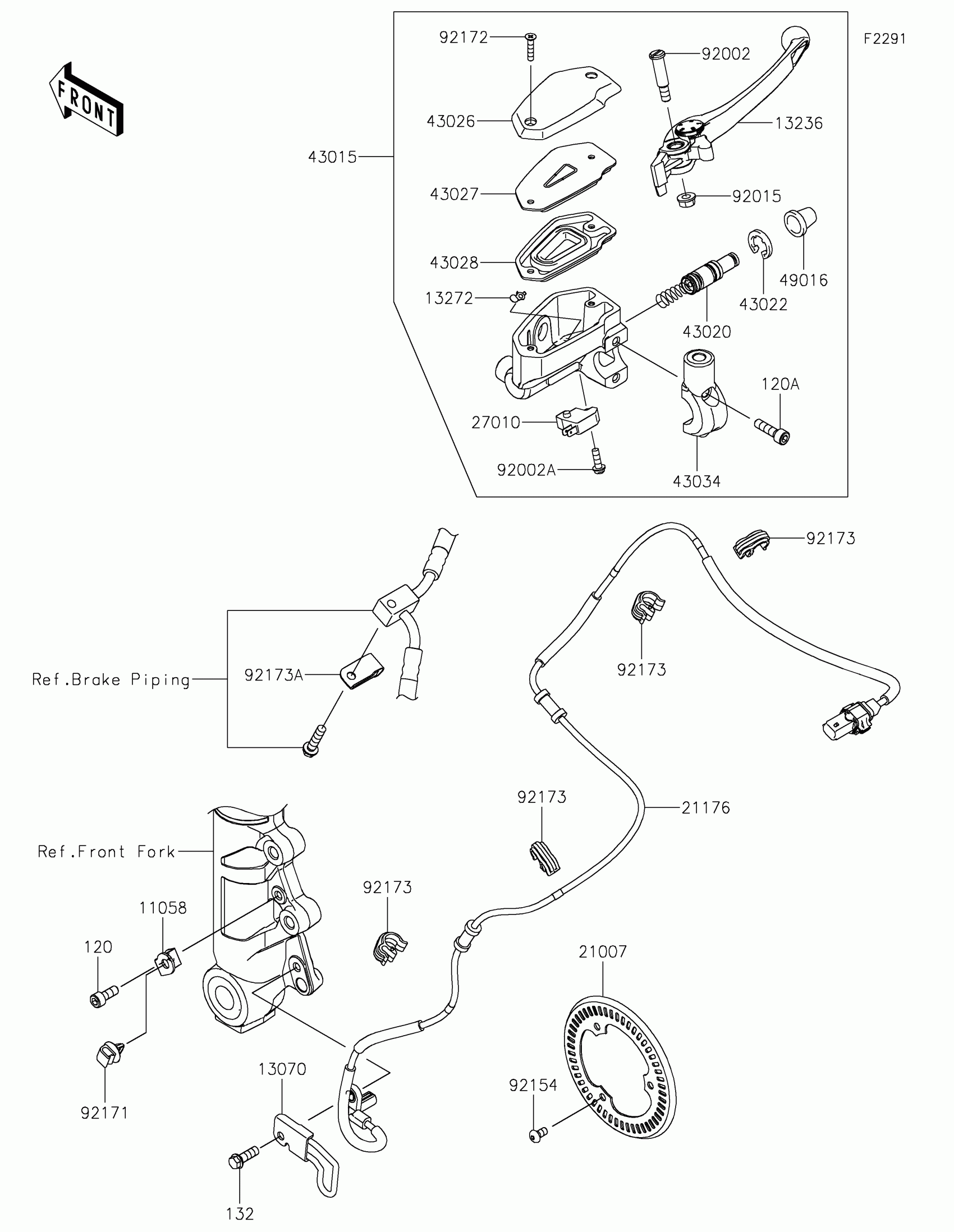

Find the part on the Front Master Cylinder diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z7 Hybrid Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,SENSOR

11058-1074

1
Out of stock

13070

GUIDE,SENSOR

13070-1498

1
Out of stock

13236

LEVER-COMP

13236-0864

1
Out of stock

13272

PLATE

13272-0573

1
Out of stock

21007

ROTOR,SENSOR,FR

21007-0671

1
Out of stock

21176

SENSOR,SPEED,FR

21176-1235

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0825

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0008

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0019

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0008

1
Out of stock

43028

DIAPHRAGM

43028-0015

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-2801

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92172

SCREW,4X20

92172-0320

1
Out of stock

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

92173A

CLAMP

92173-2175

1
Out of stock

120

BOLT-SOCKET,6X16

120CA0616

1
Out of stock

120A

BOLT-SOCKET,6X22

120CB0622

1
Out of stock

132

BOLT-FLANGED-SMALL,6X18

132BA0618

1
Out of stock
