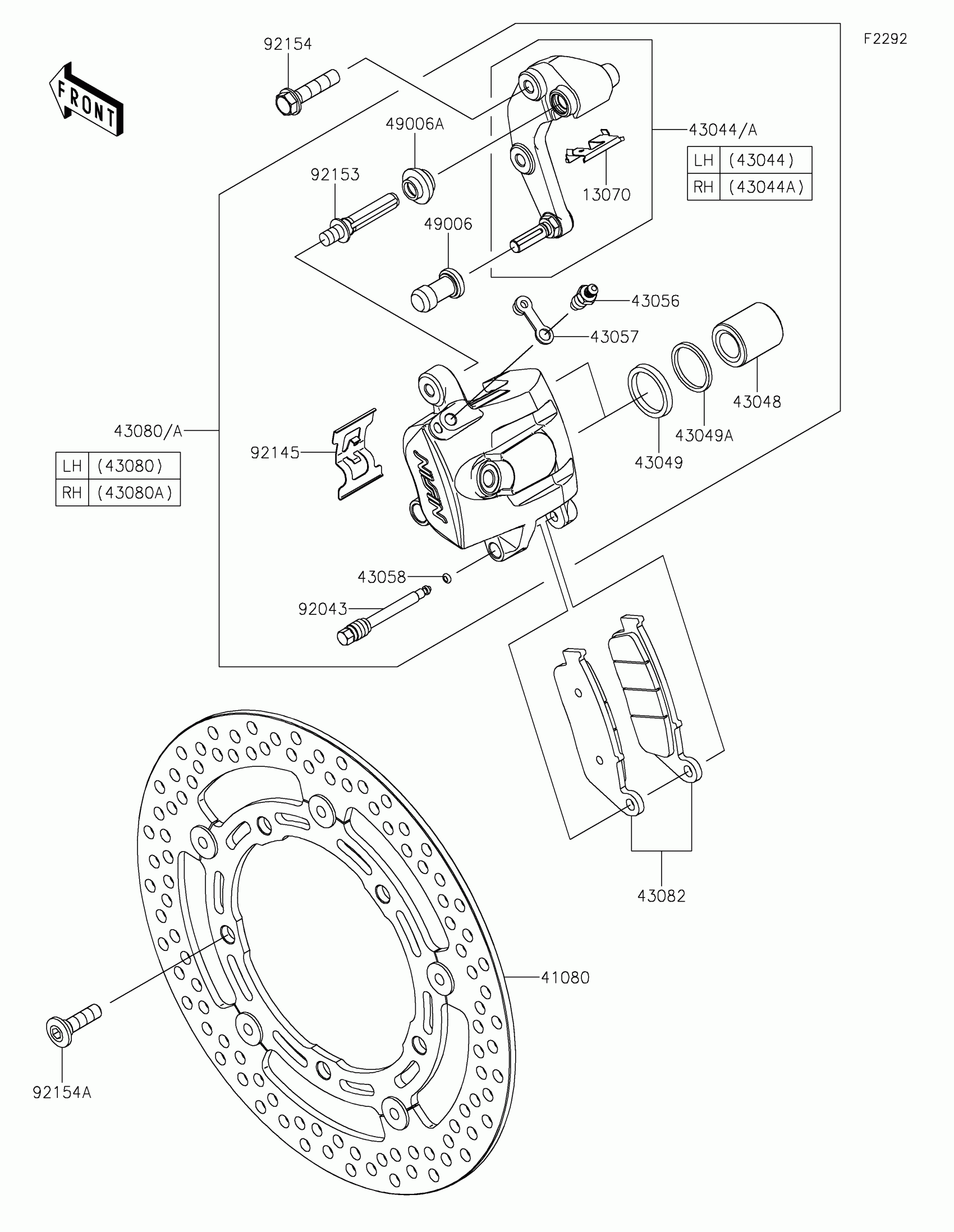

Kawasaki Z7 Hybrid Front Brake Diagram

#

Description
Price

13070

GUIDE,BRAKE PAD

13070-0077

$11.32

41080

DISC,FR,BLACK+SIL

41080-0734-11I

$304.73

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0078

$151.97

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-0079

$147.38

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0177-DJ

$383.12

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0178-DJ

$383.12

43082

PAD-ASSY-BRAKE

43082-0150

$78.26

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN,HANGER

92043-0820

$7.24

92145

SPRING,PAD

92145-0524

$11.32

92153

BOLT

92153-1872

$12.95

92154

BOLT,FLANGED,8X35

92154-1646

$3.57

92154A

BOLT,SOCKET,8X30

92154-1865

$3.57
