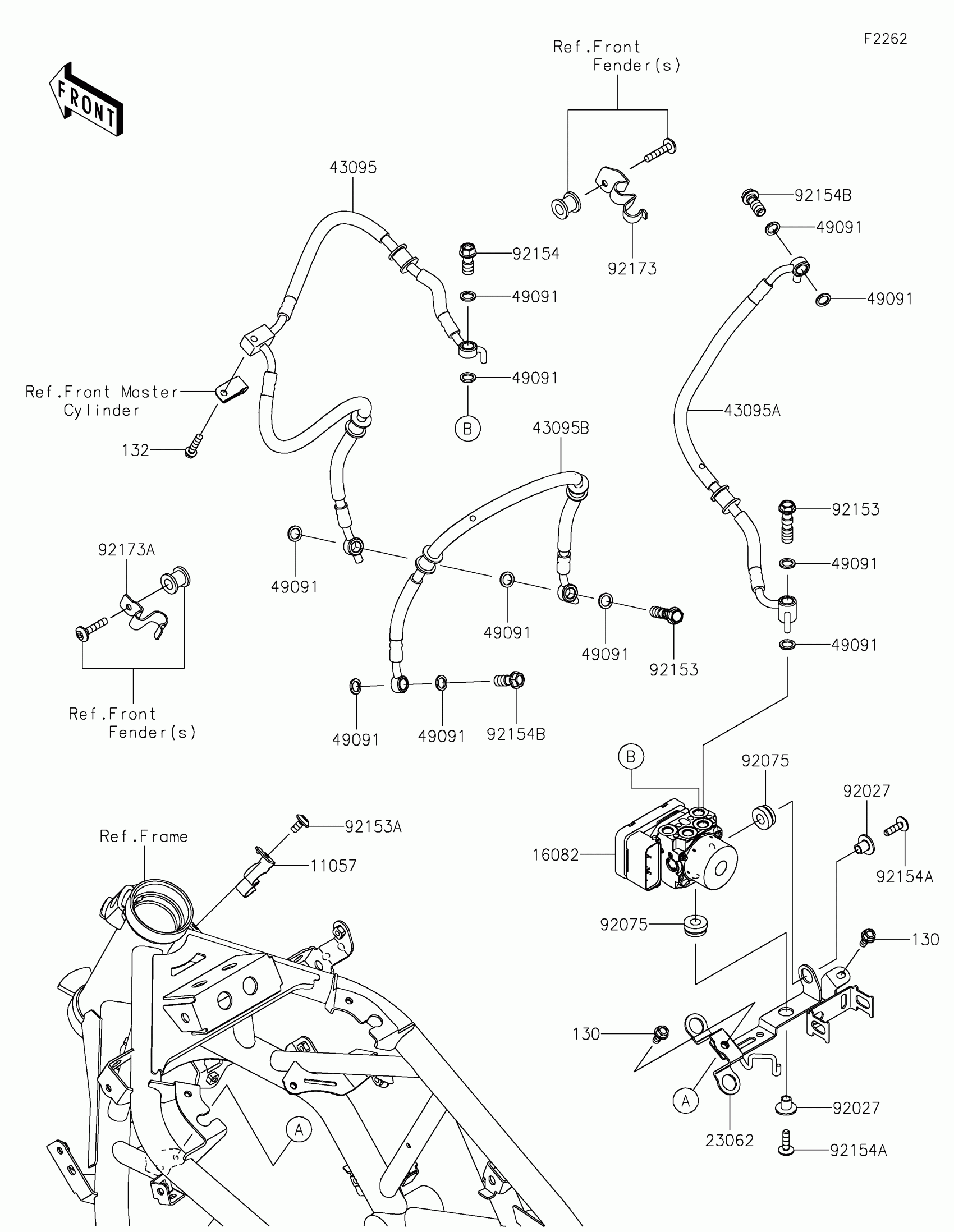

Find the part on the Brake Piping diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z7 Hybrid Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1100

1

$2.20

In stock

16082

1

$1,080.81

In stock

23062

1

$24.66

In stock

43095

1

$155.66

In stock

43095A

1

$112.23

In stock

43095B

1

$81.36

In stock

49091

1

$1.81

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92153A

BOLT,SOCKET,6X12

92153-1948

1

$1.53

In stock

92154

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92154A

BOLT,SOCKET,6X22

92154-2302

1

$1.10

In stock

92154B

BOLT,OIL,L=23

92154-4239

1

$4.68

In stock

92173

CLAMP,FR FENDER,RH

92173-1612

1

$3.15

In stock

92173A

CLAMP,FR FENDER,LH

92173-2290

1

$3.92

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

132

1

$2.29

In stock
