2022 Kawasaki Z650RS Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

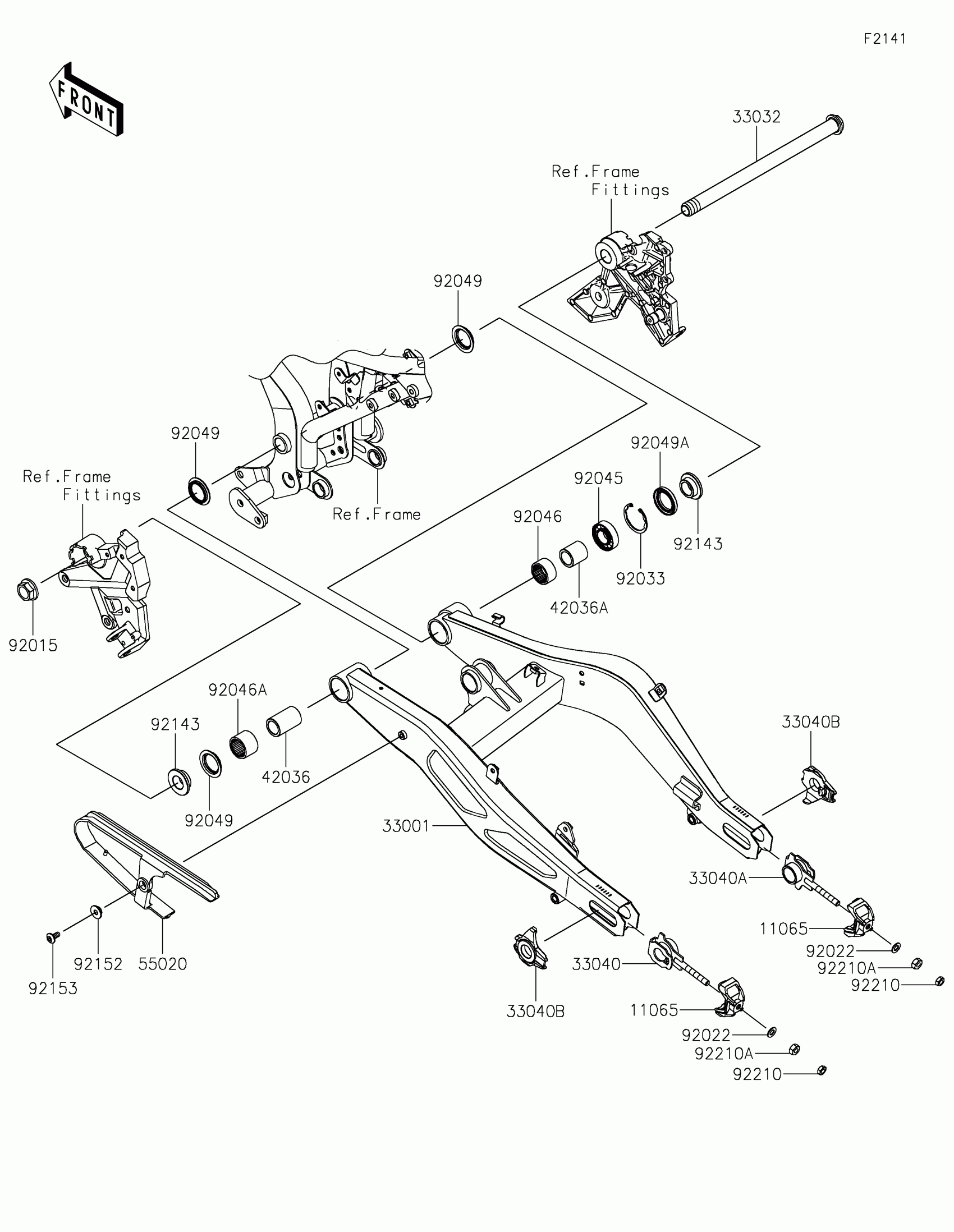

2022 Kawasaki Z650RS Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,BLACK

11065-0957-10

1

$14.32

In stock

33001

ARM-COMP-SWING,BLACK

33001-0663-10

1

$732.31

In stock

33032

1

$102.29

In stock

33040

1

$24.32

In stock

33040A

1

$24.32

In stock

33040B

1

$19.93

In stock

42036

SLEEVE,20.1X28X43.5

42036-0785

1

$32.49

In stock

42036A

SLEEVE,20.1X28X29.5

42036-0786

1

$29.54

In stock

55020

GUARD,CHAIN

55020-2359

1

$44.48

In stock

92015

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92046A

BEARING-NEEDLE,BM2824

92046-1202

1
Out of stock

92049

SEAL-OIL

92049-0132

1
Out of stock

92049A

SEAL-OIL

92049-0138

1
Out of stock

92143

1

$18.34

In stock

92152

COLLAR

92152-2786

1

$3.49

In stock

92153

BOLT,SOCKET,6X14

92153-1361

1
Out of stock

92210

NUT,8MM

92210-0116

1
Out of stock

92210A

NUT,8MM

92210-0117

1
Out of stock
