Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005

PIPE-LEFT FORK OUTER,BLACK

44005-0126-32A

$318.75

44006

PIPE-RIGHT FORK OUTER,BLACK

44006-0129-32A

$318.75

44013

PIPE-FORK INNER

44013-0374

$469.40

44023

CYLINDER-SET-FORK

44023-0175

$114.60

44026

SPRING-FRONT FORK

44026-0266

$61.97

44029

SEAT-FORK SPRING

44029-0005

$45.48

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0203-18R

$385.21

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$26.15

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$25.42

44071

DAMPER-ASSY,FORK,LH,L.S.BLACK

44071-1499-32A

$671.18

44071A

DAMPER-ASSY,FORK,RH,L.S.BLACK

44071-1500-32A

$671.18

44081

HOLDER-ASSY-FORK UPPER,BLACK

44081-0124-18R

$442.68

55020

GUARD,FORK

55020-0872

$8.87

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.55

92033

RING-SNAP

92033-1036

$4.88

92049

SEAL-OIL

92049-0073

$18.32

92055

RING-O

92055-1321

$1.03

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-1472

$19.29

92152

COLLAR

92152-2784

$65.31

92153

BOLT,SOCKET,8X40

92153-0506

$7.46

92200

WASHER

92200-1302

$4.32

120

BOLT-SOCKET,8X35

120CA0835

$1.68

120A

BOLT-SOCKET,8X40

120CA0840

$1.98

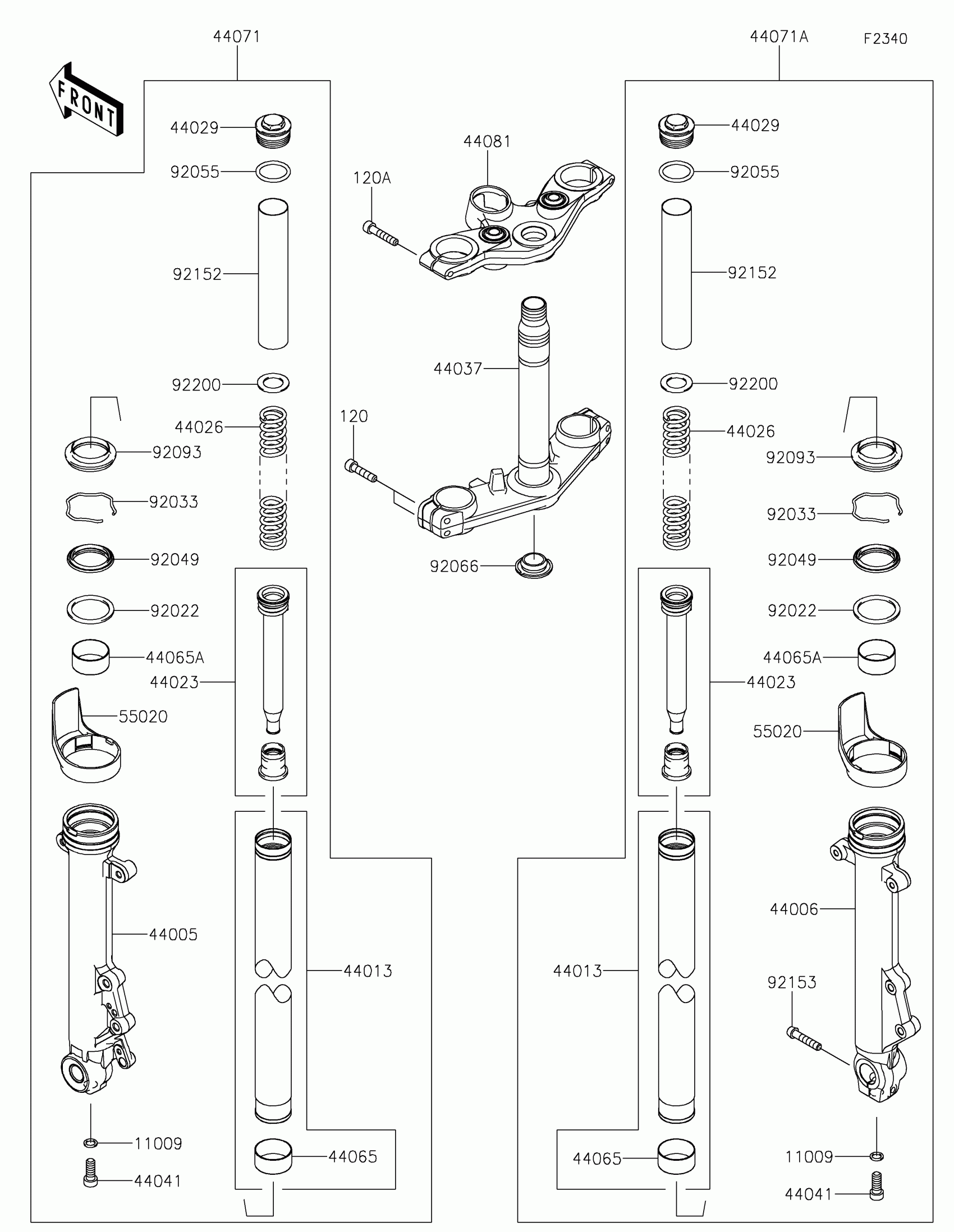

Kawasaki Z650RS Front Fork Diagram
