Partiron

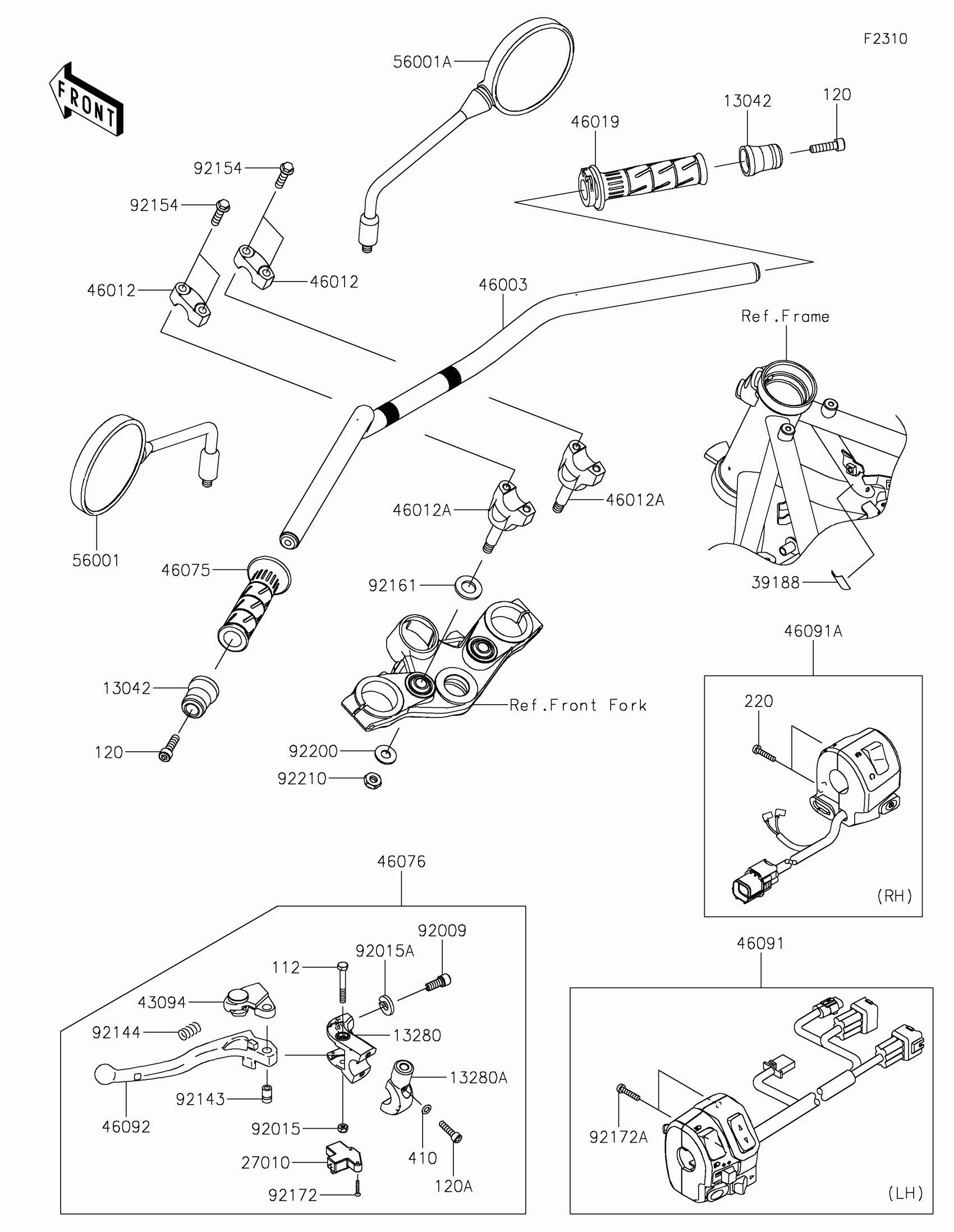

Kawasaki Z650RS Handlebar Diagram

#

Description
Price

13042

WEIGHT,HANDLE

13042-5011

$40.07

13280

HOLDER,CLUTCH LEVER

13280-0306

$47.37

13280A

HOLDER,CLUTCH LEVER

13280-0307

$32.56

27010

SWITCH,CLUTCH

27010-0933

$33.60

39188

TAPE,25X13

39188-0589

$1.20

43094

ADJUSTER

43094-0009

$40.53

46003

HANDLE,F.S.BLACK

46003-0798-18R

$144.67

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0101-18R

$23.37

46012A

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0419-18R

$34.50

46019

GRIP-ASSY,THROTTLE

46019-0060

$29.02

46075

GRIP,HANDLE,LH

46075-0564

$16.11

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0177

$112.56

46091

HOUSING-ASSY-CONTROL,LH

46091-0557

$151.82

46091A

HOUSING-ASSY-CONTROL,RH

46091-0558

$185.16

46092

LEVER-GRIP,CLUTCH

46092-0569

$20.78

56001

MIRROR-ASSY,LH

56001-0445

$92.30

56001A

MIRROR-ASSY,RH

56001-0446

$92.30

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92154

BOLT,FLANGED,8X30

92154-3840

$2.08

92161

DAMPER

92161-0037

$1.36

92172

SCREW,3X16

92172-0183

$1.57

92172A

SCREW-PAN-CROS,5X25

92172-1140

$8.97

92200

WASHER,10.5X24X2

92200-1844

$0.76

92210

NUT,LOCK,10MM

92210-0784

$4.52

112

BOLT-UPSET,6X45

112BB0645

$3.29

120

BOLT-SOCKET,8X30

120CA0830

$1.98

120A

BOLT-SOCKET,6X25

120CB0625

$1.81

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68
