2022 Kawasaki Z650RS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

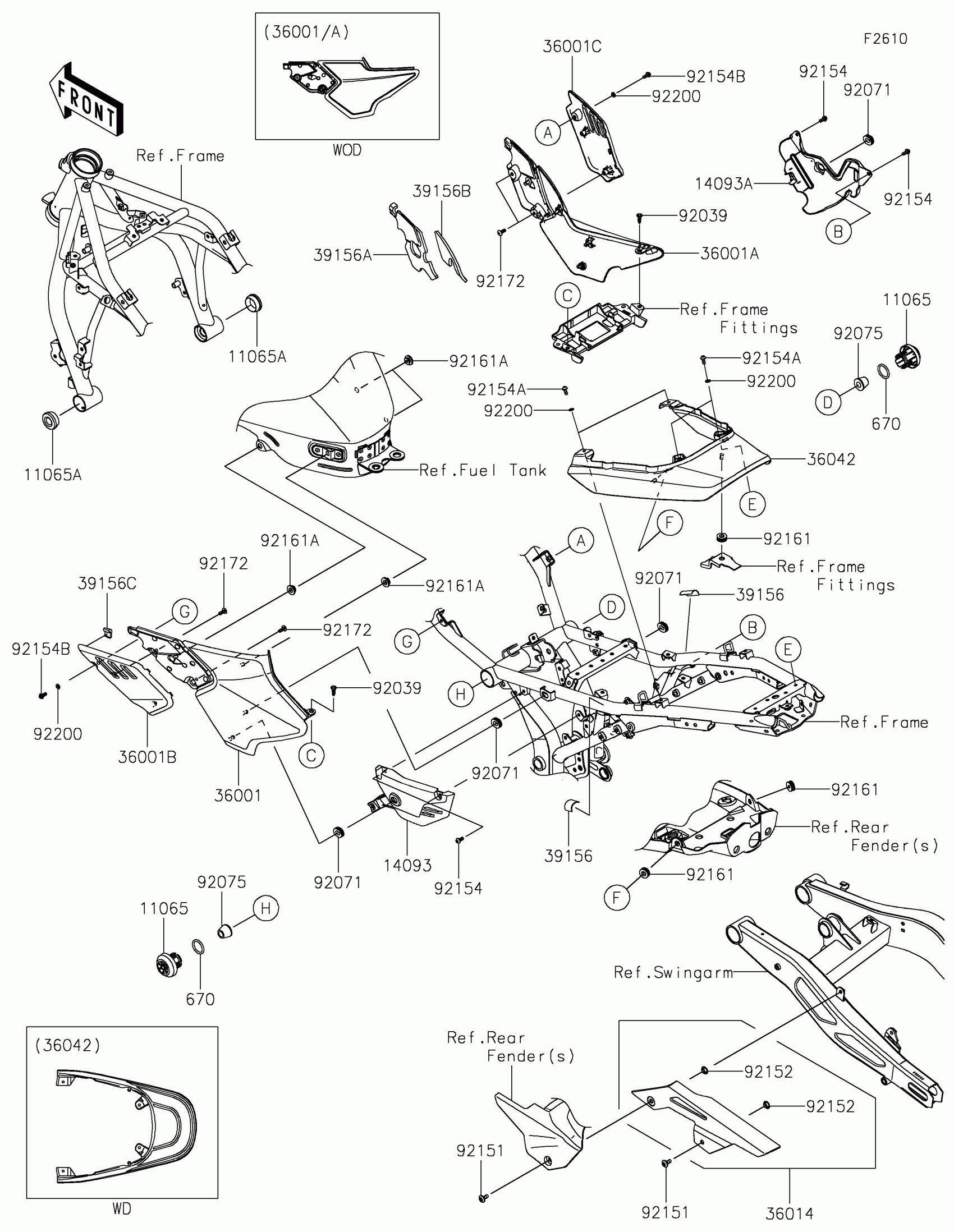

2022 Kawasaki Z650RS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0956

1

$2.58

In stock

11065A

CAP

11065-1376

1

$1.93

In stock

14093

1

$36.50

In stock

14093A

COVER,RESERVOIR,RH

14093-1106

1

$34.76

In stock

36001

1

$197.43

In stock

36001A

1

$197.43

In stock

36001B

COVER-SIDE,LH,B.B.SILVER

36001-0728-63E

1

$64.88

In stock

36001C

COVER-SIDE,RH,B.B.SILVER

36001-0729-63E

1

$64.88

In stock

36014

CASE-CHAIN

36014-0044

1

$13.74

In stock

36042

COVER-TAIL,C.D.BROWN

36042-5366-18A

1

$460.07

In stock

39156

PAD,30X30X1

39156-2497

1

$1.07

In stock

39156A

1

$11.10

In stock

39156B

1

$4.63

In stock

39156C

PAD,23X13X5

39156-2689

1

$0.71

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92071

GROMMET,11X23X7

92071-0762

1

$1.27

In stock

92075

1

$3.72

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92154

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92154A

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92154B

BOLT,SOCKET,5X12

92154-4289

1

$0.93

In stock

92161

DAMPER

92161-0588

1

$3.14

In stock

92161A

DAMPER,6X20X7.5

92161-1937

1

$1.66

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock

92200

WASHER,5.2X10X1

92200-2286

1

$0.44

In stock

670

O RING,25MM

670B3025

1

$1.10

In stock
