2022 Kawasaki Z650RS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

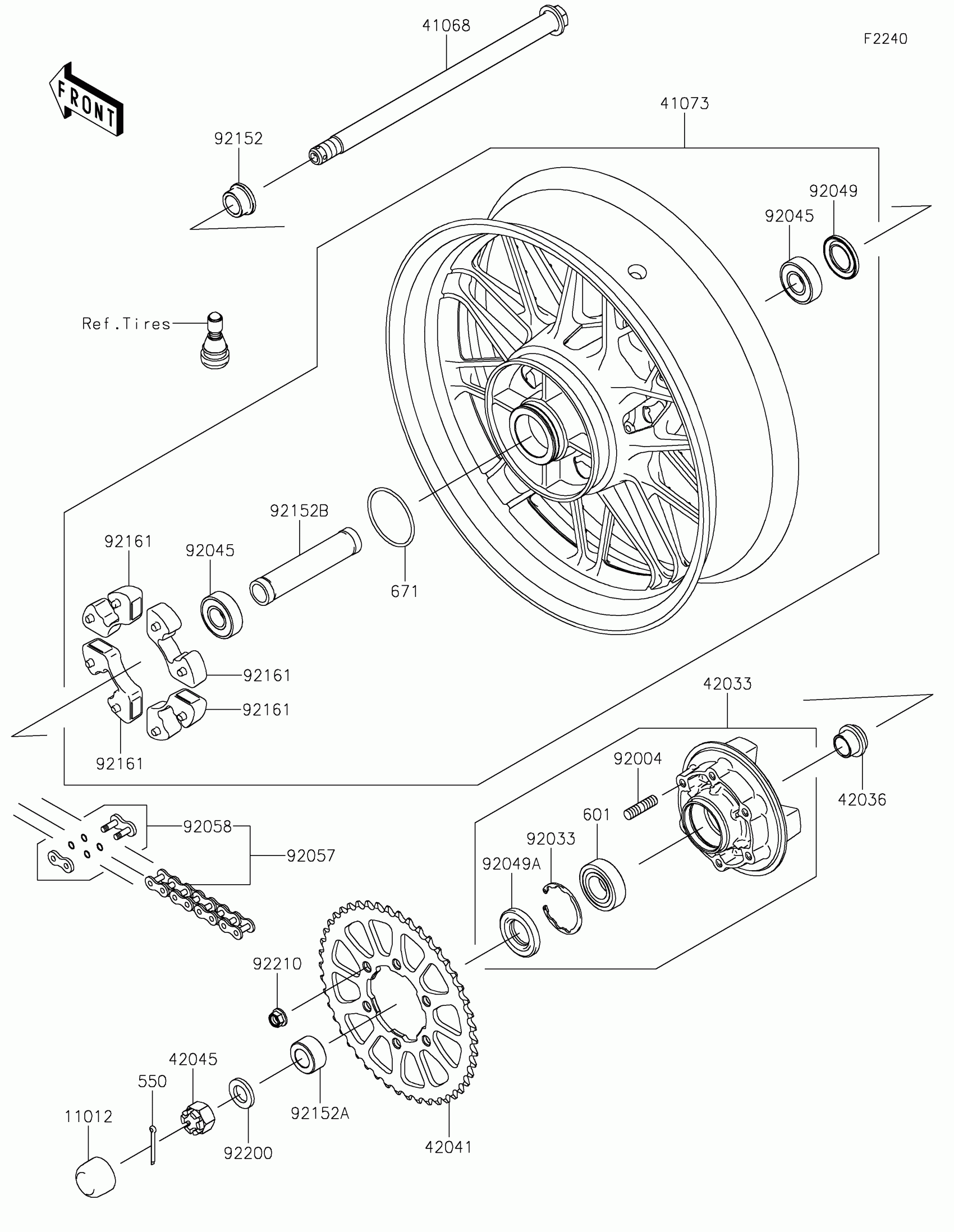

2022 Kawasaki Z650RS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AXLE NUT

11012-1590

1

$4.16

In stock

41068

AXLE,RR,20X339.9

41068-0617

1

$112.09

In stock

41073

WHEEL-ASSY,RR,GOLD

41073-0798-63J

1

$999.56

In stock

42033

1

$235.46

In stock

42036

SLEEVE,RR HUB,L=23

42036-1251

1

$23.69

In stock

42041

SPROCKET-HUB,46T

42041-0177

1

$79.55

In stock

42045

NUT,CASTLE,18MM

42045-018

1

$7.31

In stock

92004

STUD,10X19

92004-0048

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1

$6.41

In stock

92045

1

$18.29

In stock

92049

SEAL-OIL,28 47 5

92049-0140

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92057

1

$240.29

In stock

92058

JOINT-CHAIN

92058-0044

1

$13.00

In stock

92152

1

$13.35

In stock

92152A

COLLAR,20X35X18

92152-0751

1

$18.36

In stock

92152B

COLLAR,20.2X27.2X133

92152-2228

1
Out of stock

92161

DAMPER,SHOCK,RR HUB

92161-0303

1

$12.55

In stock

92200

WASHER,19X32X4

92200-1865

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1

$1.81

In stock

601

BEARING-BALL

601B6205UU

1

$26.83

In stock

671

O RING,60MM

671B2560

1

$5.45

In stock
