2022 Kawasaki Z650RS Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

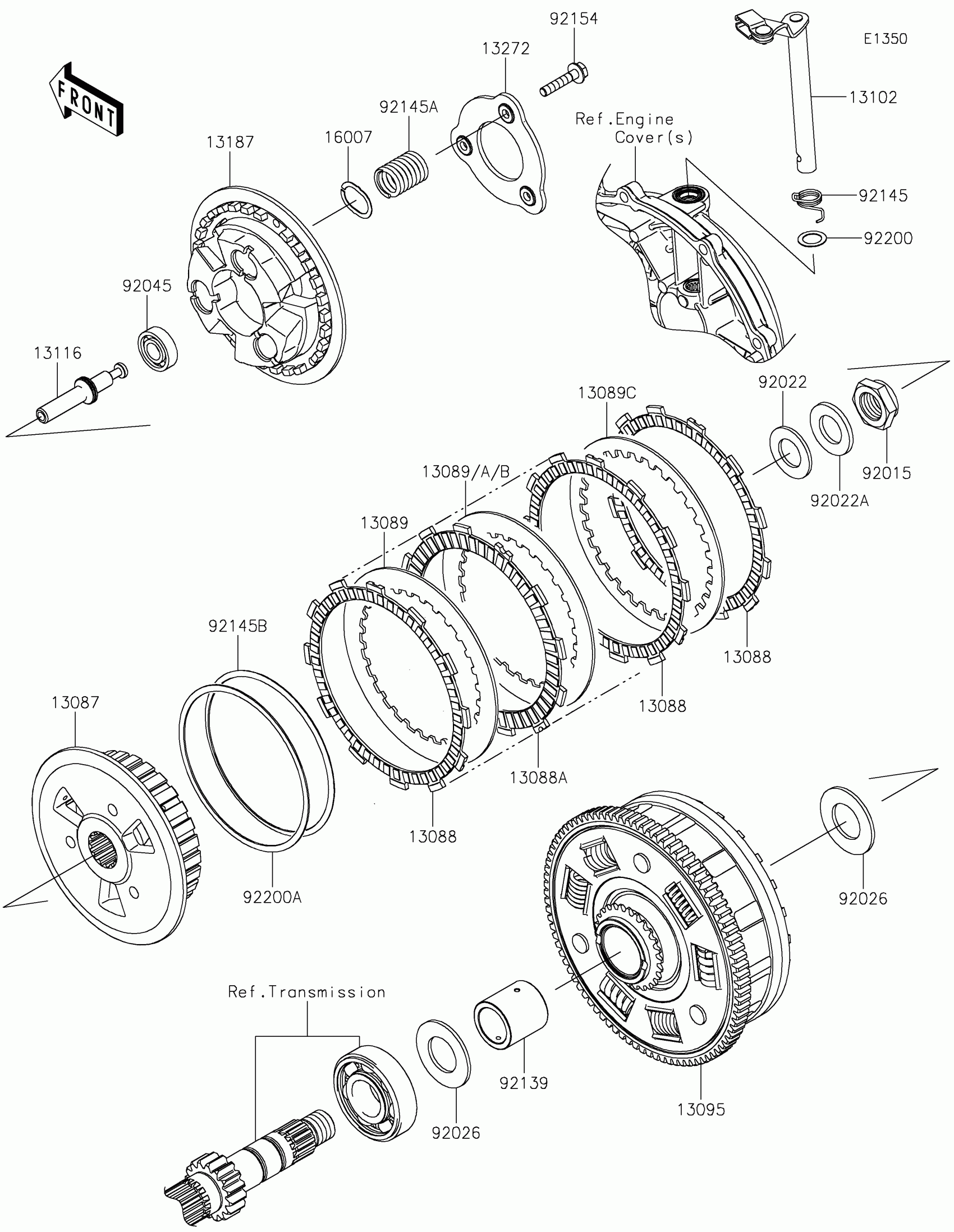

2022 Kawasaki Z650RS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0581

1

$148.00

In stock

13088

PLATE-FRICTION

13088-0557

1

$12.59

In stock

13088A

PLATE-FRICTION

13088-0566

1

$19.62

In stock

13089

PLATE-CLUTCH,T=2.0

13089-0021

1

$9.35

In stock

13089A

PLATE-CLUTCH,T=1.6

13089-0038

—

$21.86

In stock

13089B

PLATE-CLUTCH,T=2.3

13089-0039

—

$15.78

In stock

13089C

PLATE-CLUTCH

13089-0558

1

$9.40

In stock

13095

HOUSING-COMP-CLUTCH

13095-0585

1

$592.78

In stock

13102

RELEASE-COMP-CLUTCH

13102-0070

1

$45.93

In stock

13116

ROD-PUSH

13116-0734

1

$20.63

In stock

13187

1

$109.20

In stock

13272

PLATE

13272-1303

1

$18.05

In stock

16007

SEAT-SPRING

16007-0736

1

$10.49

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022A

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-0716

1
Out of stock

92045

1

$12.85

In stock

92139

BUSHING

92139-0710

1

$30.39

In stock

92145

SPRING,CLUTCH RELEASE

92145-0897

1
Out of stock

92145A

SPRING

92145-1732

1

$7.42

In stock

92145B

SPRING

92145-1765

1

$8.25

In stock

92154

BOLT,UPSET,6X30

92154-0997

1

$2.68

In stock

92200

WASHER,12X18.5X0.5

92200-1487

1
Out of stock

92200A

WASHER,T=1.0

92200-1579

1
Out of stock
