2025 Kawasaki Z650RS Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

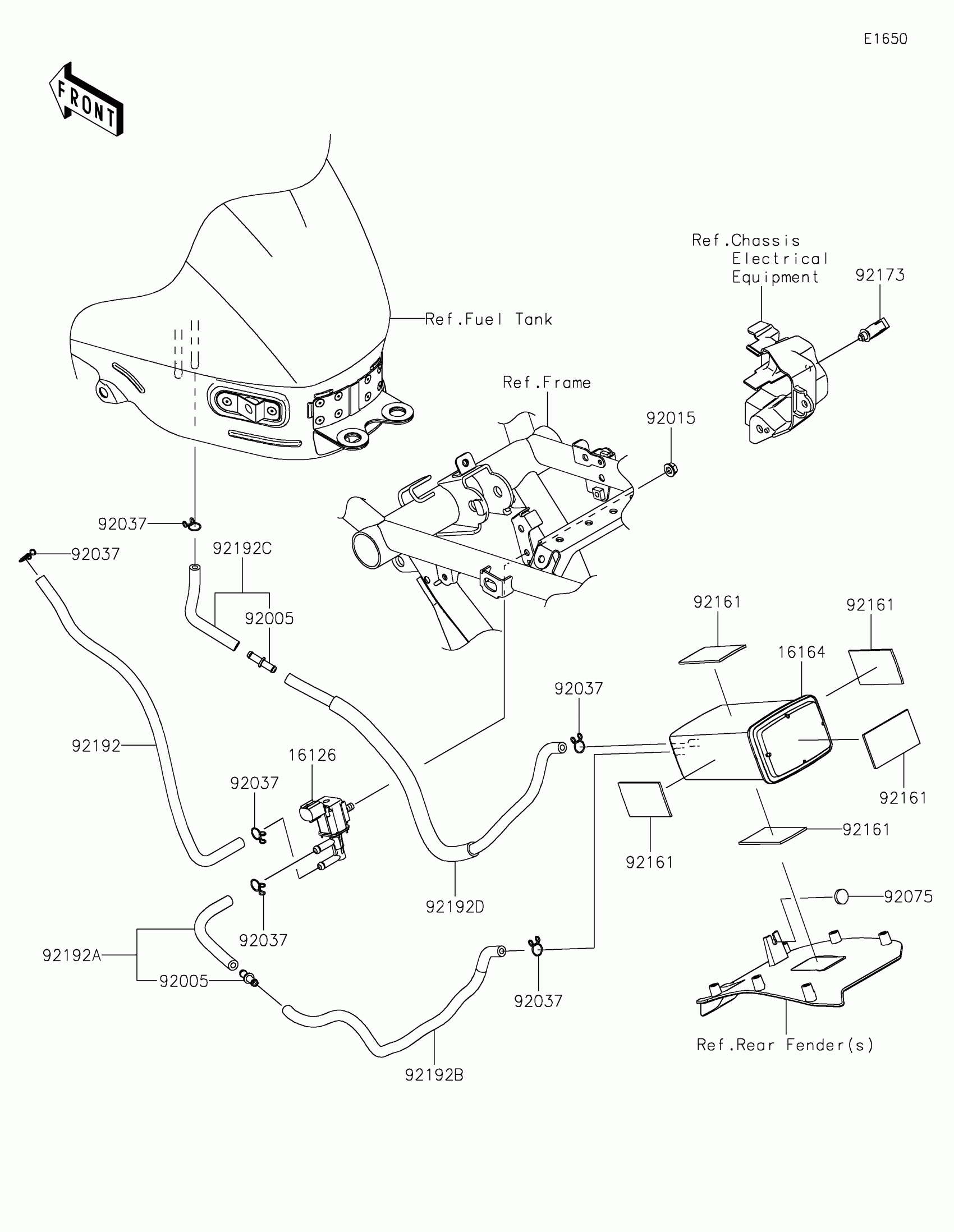

2025 Kawasaki Z650RS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92075

DAMPER,BOOST SENSOR

92075-2113

1

$1.07

In stock

92161

DAMPER

92161-1883

1

$1.27

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92192

TUBE,VALVE-THROTTLE BODY

92192-1661

1
Out of stock

92192A

TUBE,VALVE-FITTING

92192-1700

1
Out of stock

92192B

1

$46.24

In stock

92192C

TUBE,TANK SIDE

92192-2490

1

$38.86

In stock

92192D

1

$67.40

In stock
