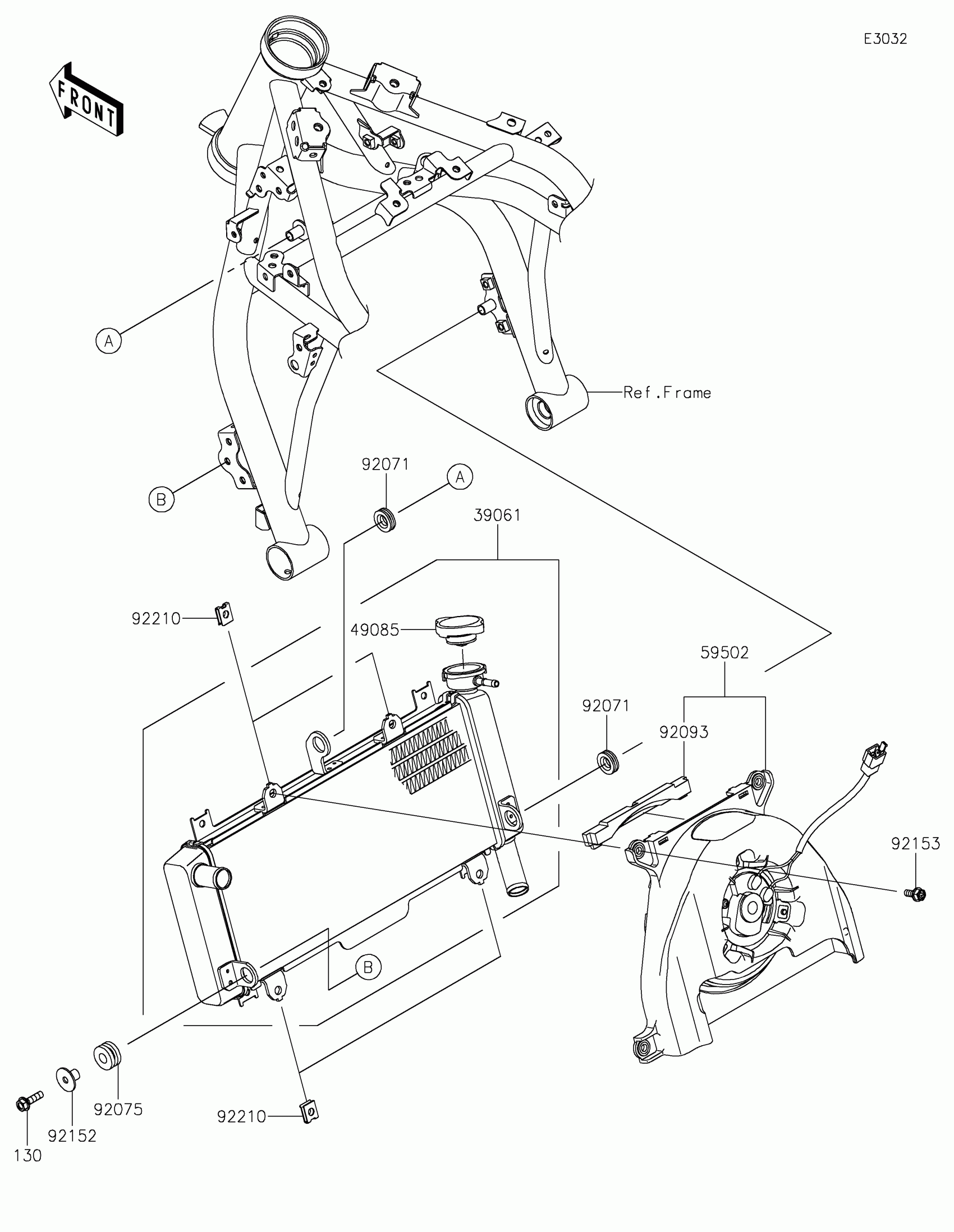

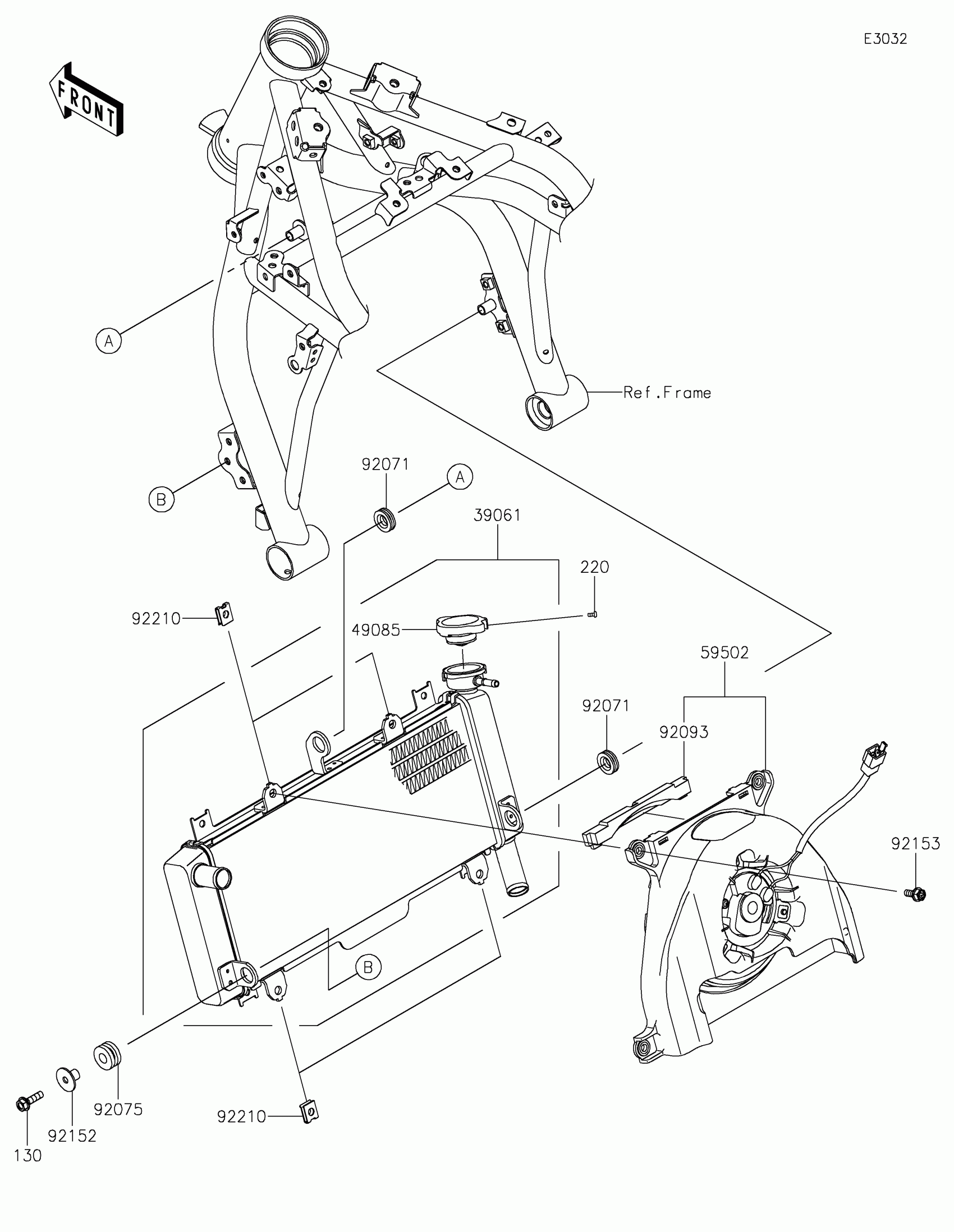

Find the part on the Radiator diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z650 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BB0622

1

$2.92

In stock

220

SCREW-PAN-CROS,3X6

220AB0306

1

$2.29

In stock

39061

RADIATOR-ASSY

39061-0724

1

$881.07

In stock

49085

CAP-ASSY-PRESSURE

49085-0013

1

$51.50

In stock

59502

FAN-ASSY

59502-0608

1

$360.00

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92093

SEAL

92093-0695

1

$7.51

In stock

92152

COLLAR

92152-2324

1
Out of stock

92153

BOLT

92153-0531

1
Out of stock

92210

NUT

92210-1323

1
Out of stock
