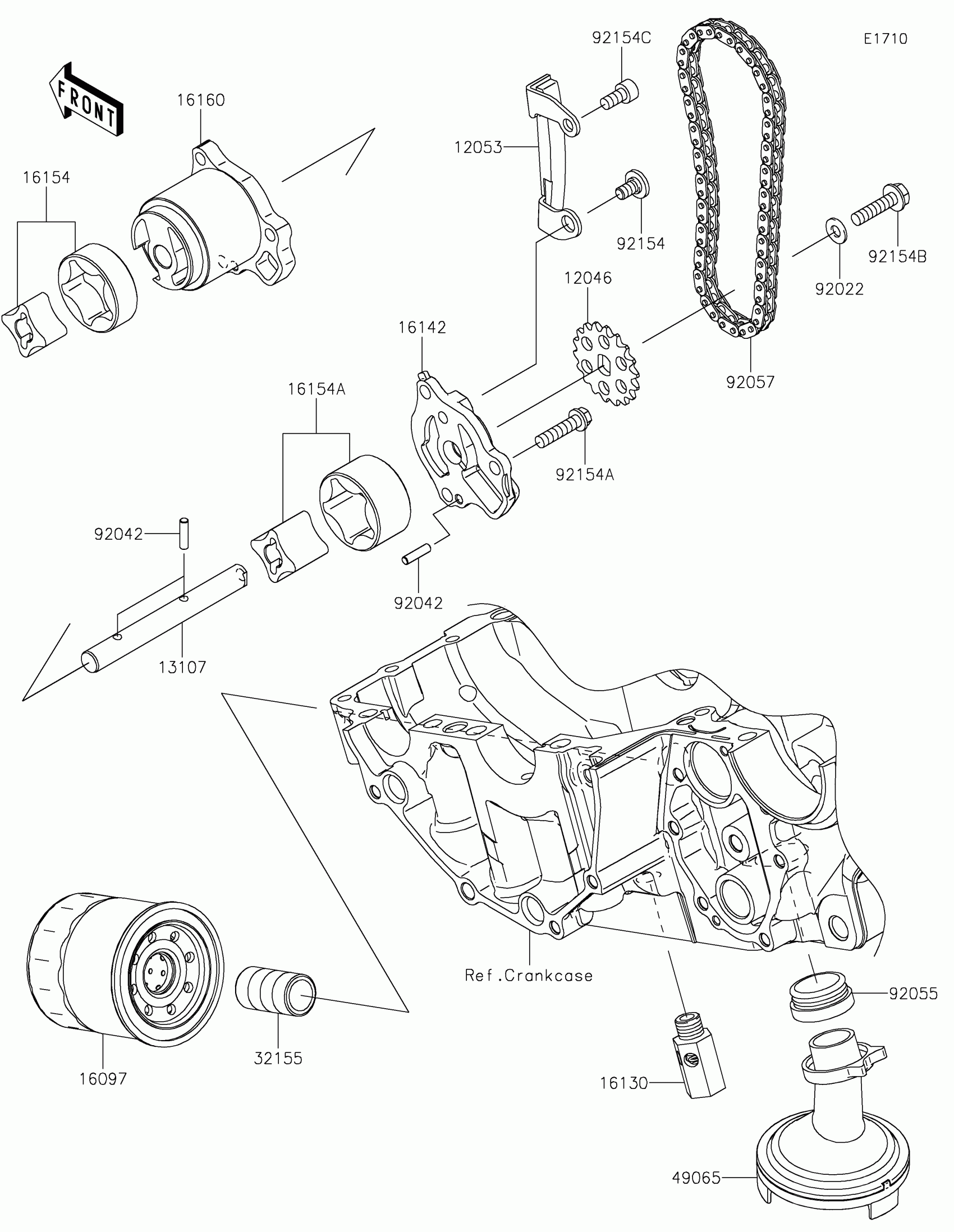

Find the part on the Oil Pump/oil Filter diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Z650 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,18T,BF04M

12046-0040

1
Out of stock

12053

GUIDE-CHAIN

12053-0071

1
Out of stock

13107

SHAFT,OIL PUMP

13107-0854

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0008

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-0552

1
Out of stock

16142

COVER-PUMP

16142-0712

1
Out of stock

16154

ROTOR-PUMP,L=14

16154-0037

1
Out of stock

16154A

ROTOR-PUMP,40.56X22

16154-1115

1
Out of stock

16160

BODY

16160-0110

1
Out of stock

32155

PIPE,OIL FILTER

32155-0029

1
Out of stock

49065

FILTER-OIL

49065-0708

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92055

RING-O,OIL FILTER

92055-1354

1
Out of stock

92057

CHAIN,DID 215FD-DHA,56LE

92057-0098

1
Out of stock

92154

BOLT,SOCKET,6X11

92154-0188

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-0783

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-0811

1
Out of stock

92154C

BOLT,SOCKET,6X12

92154-0812

1
Out of stock
