2019 Kawasaki Z650 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

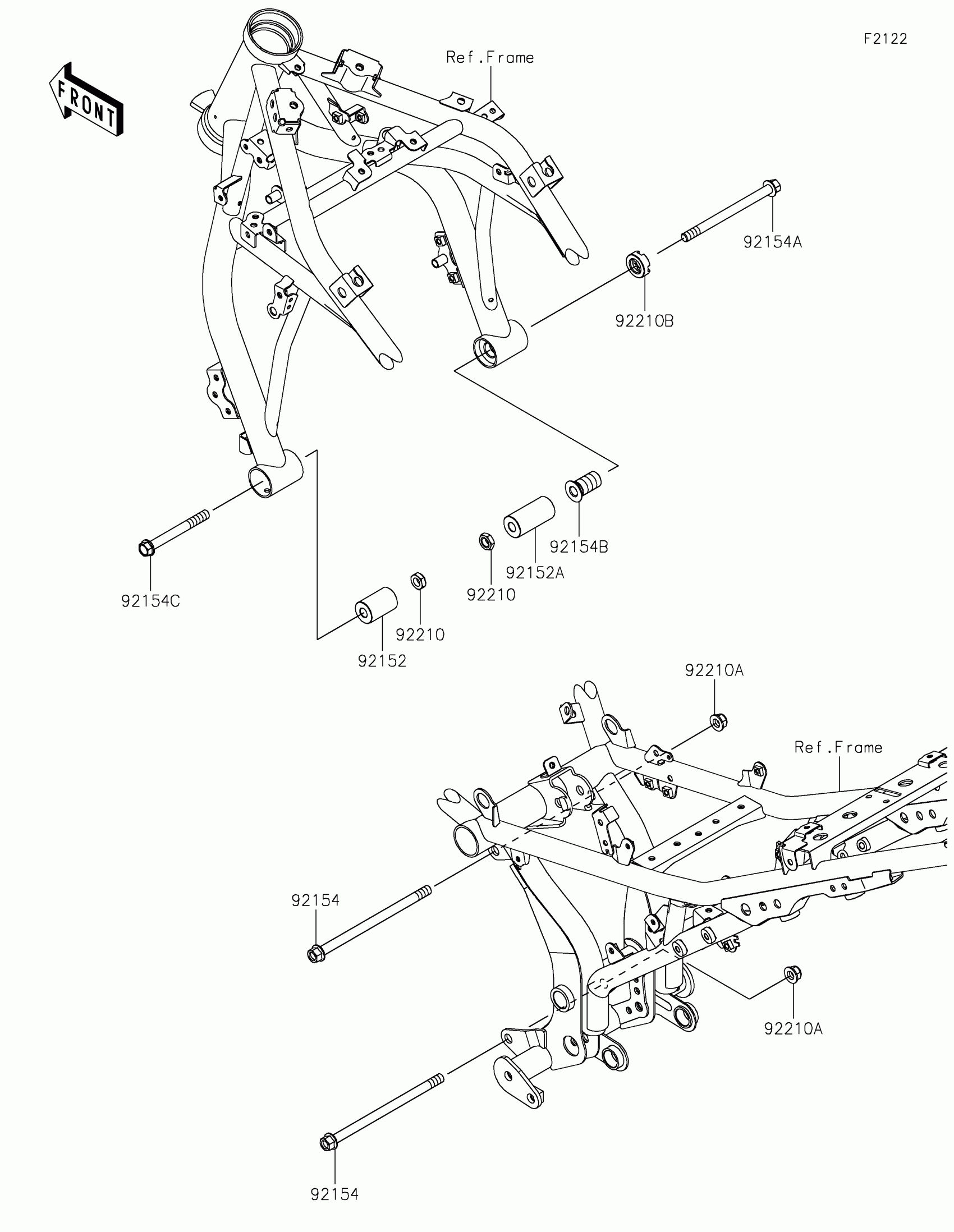

2019 Kawasaki Z650 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92152

COLLAR,10.5X26X40

92152-2230

1
Out of stock

92152A

COLLAR,10.5X26X54

92152-2231

1
Out of stock

92154

BOLT,FLANGED,10X170

92154-0840

1

$18.05

In stock

92154A

BOLT,FLANGED,10X132

92154-2167

1

$11.54

In stock

92154B

BOLT,ADJUST,18X35

92154-2168

1

$19.77

In stock

92154C

BOLT,FLANGED,10X90

92154-2645

1

$8.44

In stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

92210B

NUT,18MM

92210-1203

1
Out of stock
