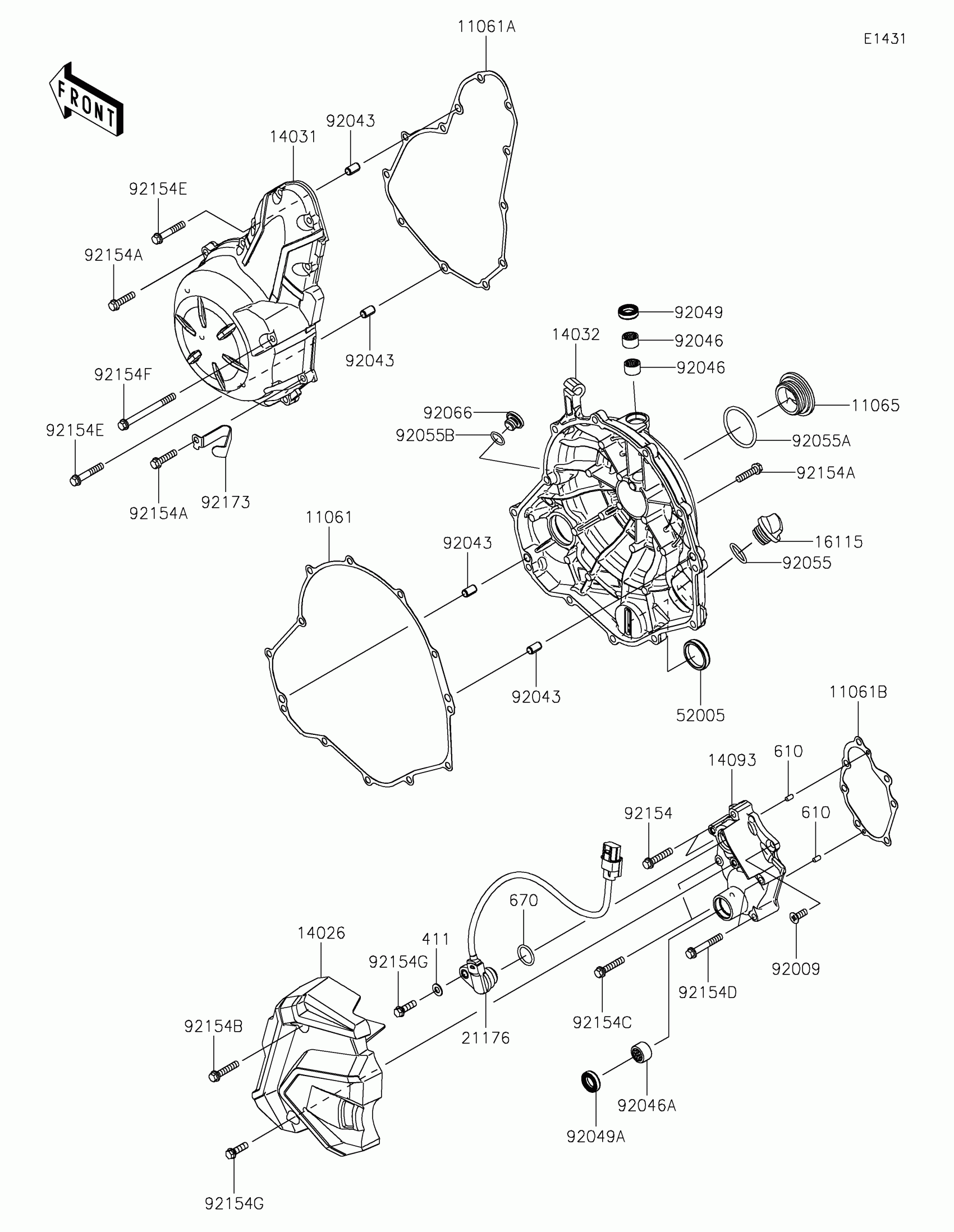

Kawasaki Z650 Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,CLUTCH COVER

11061-0164

$17.39

11061A

GASKET,GENERATOR COVER

11061-0165

$9.77

11061B

GASKET,TRANSMISSION COVER

11061-0166

$5.00

11065

CAP

11065-0978

$37.22

14026

COVER-CHAIN

14026-0128

Unavailable

14031

COVER-GENERATOR

14031-0606

$125.21

14032

COVER-CLUTCH

14032-0627

$195.06

14093

COVER,TRANSMISSION

14093-0463

$76.10

16115

CAP-OIL FILLER

16115-1053

$9.28

21176

SENSOR,GEAR POSITION

21176-0820

$139.22

411

WASHER-PLAIN,6MM

411AA0600

$2.06

52005

GAUGE,OIL LEVEL

52005-0071

$20.45

610

ROLLER,4X8

610A0408

$3.29

670

O RING,18MM

670D2018

$1.39

92009

SCREW,6X16

92009-1360

$3.29

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92046A

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92049A

SEAL-OIL,TC13225.5

92049-1519

$10.29

92055

RING-O,19.8MM

92055-0844

Unavailable

92055A

RING-O,39.4MM

92055-0849

Unavailable

92055B

RING-O,13.0X1.9

92055-1011

$5.81

92066

PLUG,12X9.1

92066-0900

$16.02

92154

BOLT,FLANGED,6X30

92154-0727

$2.11

92154A

BOLT,FLANGED,6X25

92154-0819

$1.66

92154B

BOLT,FLANGED,6X30

92154-1772

$0.95

92154C

BOLT,FLANGED,6X30

92154-1773

$1.10

92154D

BOLT,FLANGED,6X40

92154-1774

$1.14

92154E

BOLT,FLANGED,6X35

92154-1779

$1.27

92154F

BOLT,FLANGED,6X70

92154-1780

$1.62

92154G

BOLT,FLANGED,6X20

92154-2130

$0.95

92173

CLAMP

92173-1689

$2.41
