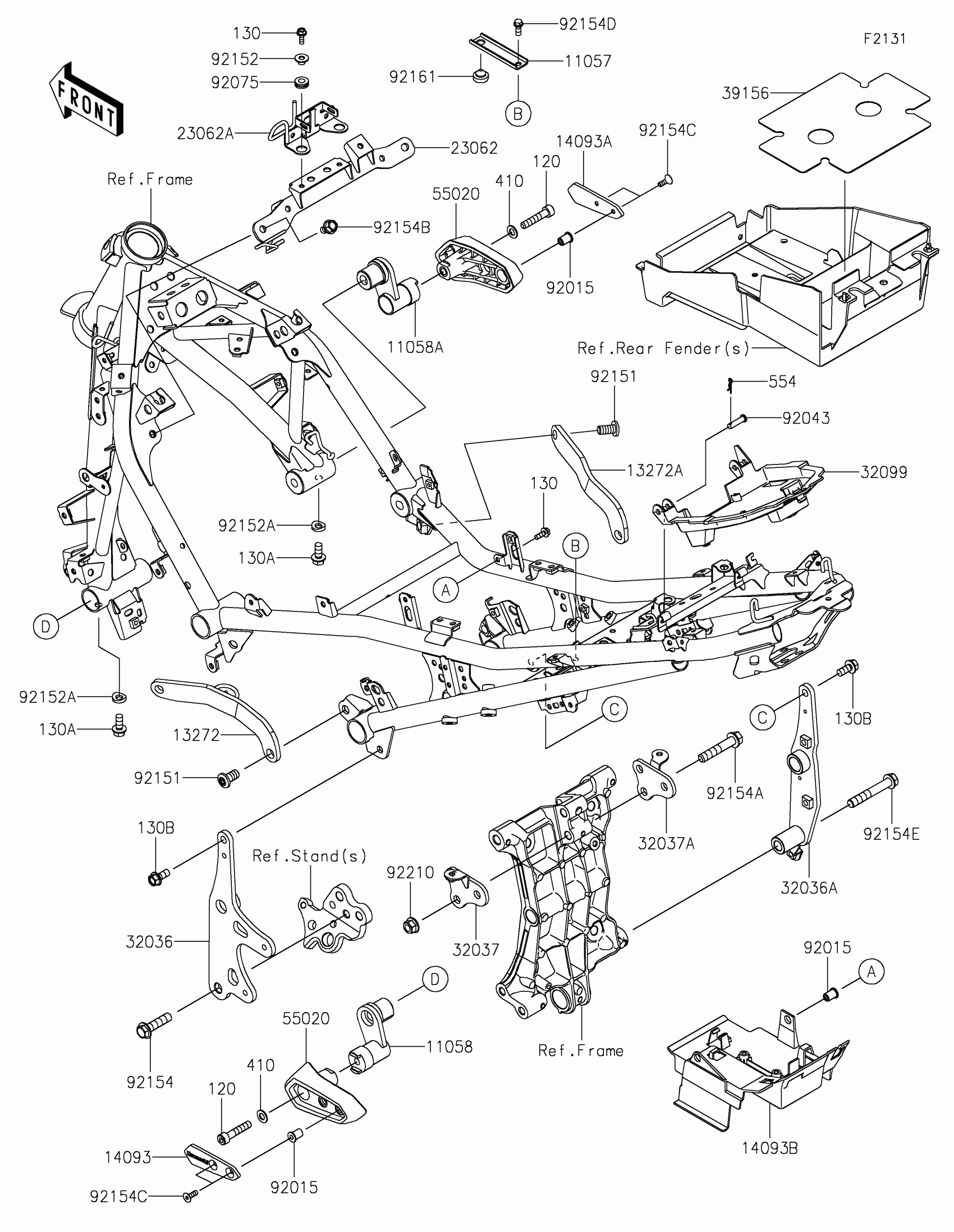

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Se Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BATTERY

11057-1605

1
Out of stock

11058

BRACKET,SLIDER,LH

11058-1213

1
Out of stock

11058A

BRACKET,SLIDER,RH

11058-1214

1
Out of stock

13272

PLATE,LH

13272-2521

1
Out of stock

13272A

PLATE,RH

13272-2522

1
Out of stock

14093

COVER,SLIDER,LH

14093-0971

1
Out of stock

14093A

COVER,SLIDER,RH

14093-0972

1
Out of stock

14093B

COVER,ECU

14093-1531

1
Out of stock

23062

BRACKET-COMP,CROSS FRAME

23062-1486

1
Out of stock

23062A

BRACKET-COMP

23062-1487

1
Out of stock

32036

BRACKET-SWINGARM,LH

32036-0378

1
Out of stock

32036A

BRACKET-SWINGARM,RH

32036-0379

1
Out of stock

32037

BRACKET-SHOCKABSORBER,LH

32037-0457

1
Out of stock

32037A

BRACKET-SHOCKABSORBER,RH

32037-0458

1
Out of stock

32099

CASE,SEAT UNDER

32099-0787

1
Out of stock

39156

PAD,BATTERY CASE

39156-2220

1
Out of stock

55020

GUARD

55020-2411

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92043

PIN,6X23

92043-0746

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92151

BOLT,SOCKET,10X20

92151-1557

1
Out of stock

92152

COLLAR,5.2X7.8X7.2

92152-2371

1
Out of stock

92152A

COLLAR,8.3X16

92152-2423

1
Out of stock

92154

BOLT,FLANGED,10X40

92154-2812

1
Out of stock

92154A

BOLT,FLANGED,10X54

92154-2813

1
Out of stock

92154B

BOLT-FLANGED,8X14

92154-3851

1
Out of stock

92154C

BOLT,SOCKET,5X16

92154-4048

1
Out of stock

92154D

BOLT,6X14

92154-4129

1
Out of stock

92154E

BOLT,FLANGED,10X65

92154-4394

1
Out of stock

92161

DAMPER,9.5X18X6

92161-1473

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

120

BOLT-SOCKET,8X40

120CA0840

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1
Out of stock

130A

BOLT-FLANGED,8X18

130BB0818

1
Out of stock

130B

BOLT-FLANGED,8X18

130CA0818

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock
