2025 Kawasaki Z500 Se Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

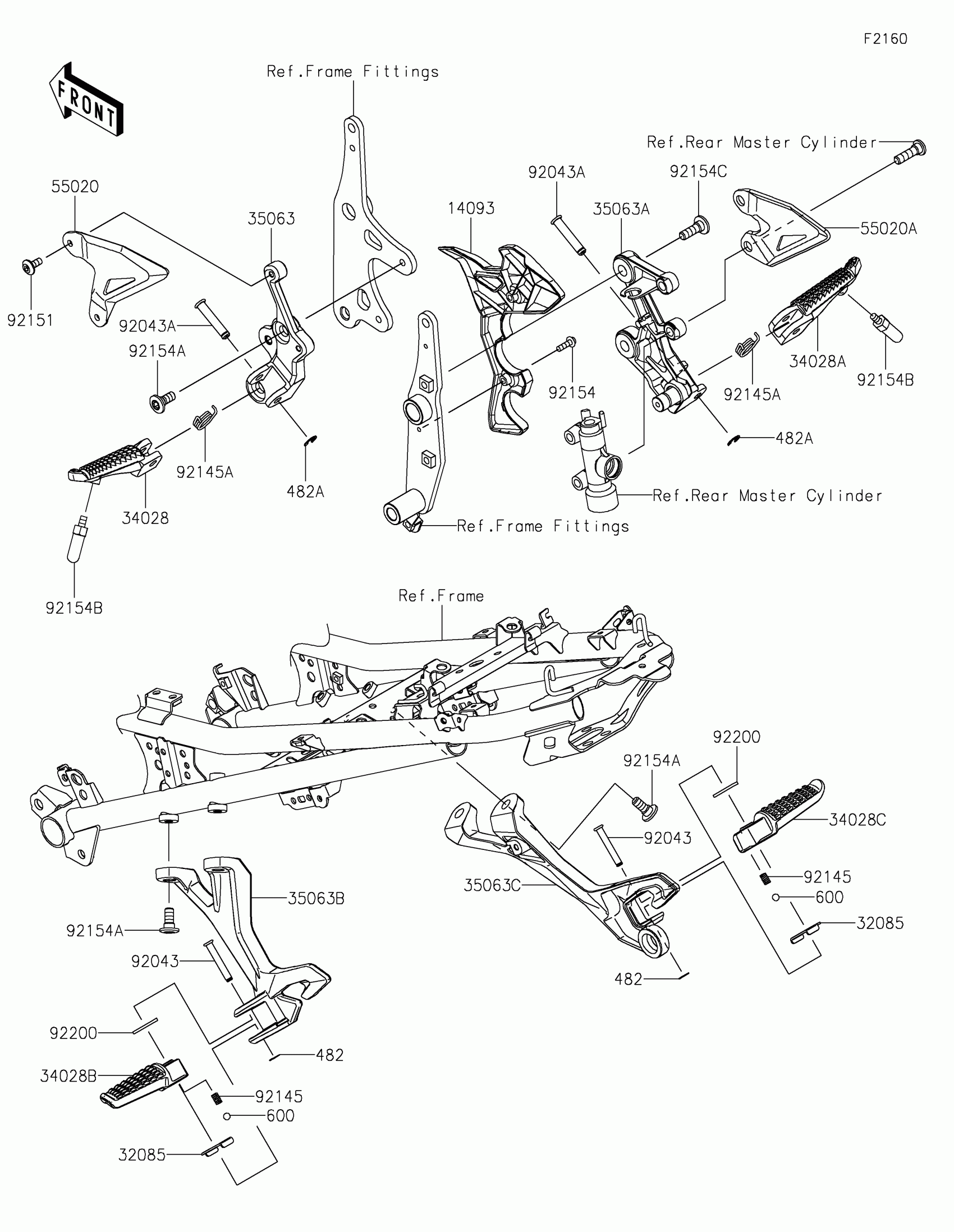

2025 Kawasaki Z500 Se Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,PIVOT,RH

14093-0641

1

$29.86

In stock

32085

STOPPER,REAR STEP

32085-0047

1

$4.42

In stock

34028

STEP,FR,LH

34028-0356

1

$55.20

In stock

34028A

STEP,FR,RH

34028-0357

1

$55.20

In stock

34028B

STEP,RR,LH

34028-0366

1

$64.47

In stock

34028C

STEP,RR,RH

34028-0367

1

$71.74

In stock

35063

STAY,FR STEP,LH

35063-1407

1

$78.54

In stock

35063A

STAY,FR STEP,RH

35063-1408

1

$105.98

In stock

35063B

STAY,RR STEP,LH

35063-1409

1

$118.68

In stock

35063C

STAY,RR STEP,RH

35063-1410

1

$128.17

In stock

55020

GUARD,HEEL,LH

55020-2195

1

$44.98

In stock

55020A

GUARD,HEEL,RH

55020-2196

1

$44.98

In stock

92043

PIN,6X40

92043-0200

1

$2.44

In stock

92043A

PIN,8X40.5

92043-0877

1

$3.94

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92145A

SPRING

92145-2240

1

$1.20

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,SOCKET,8X20

92154-0936

1

$3.26

In stock

92154B

BOLT,BANK SENSOR

92154-2799

1

$6.31

In stock

92154C

BOLT,SOCKET,8X26

92154-3747

1

$2.59

In stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

482

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock

482A

CIRCLIP-TYPE-E

482EA7000

1

$3.12

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
