2025 Kawasaki Z500 Se Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

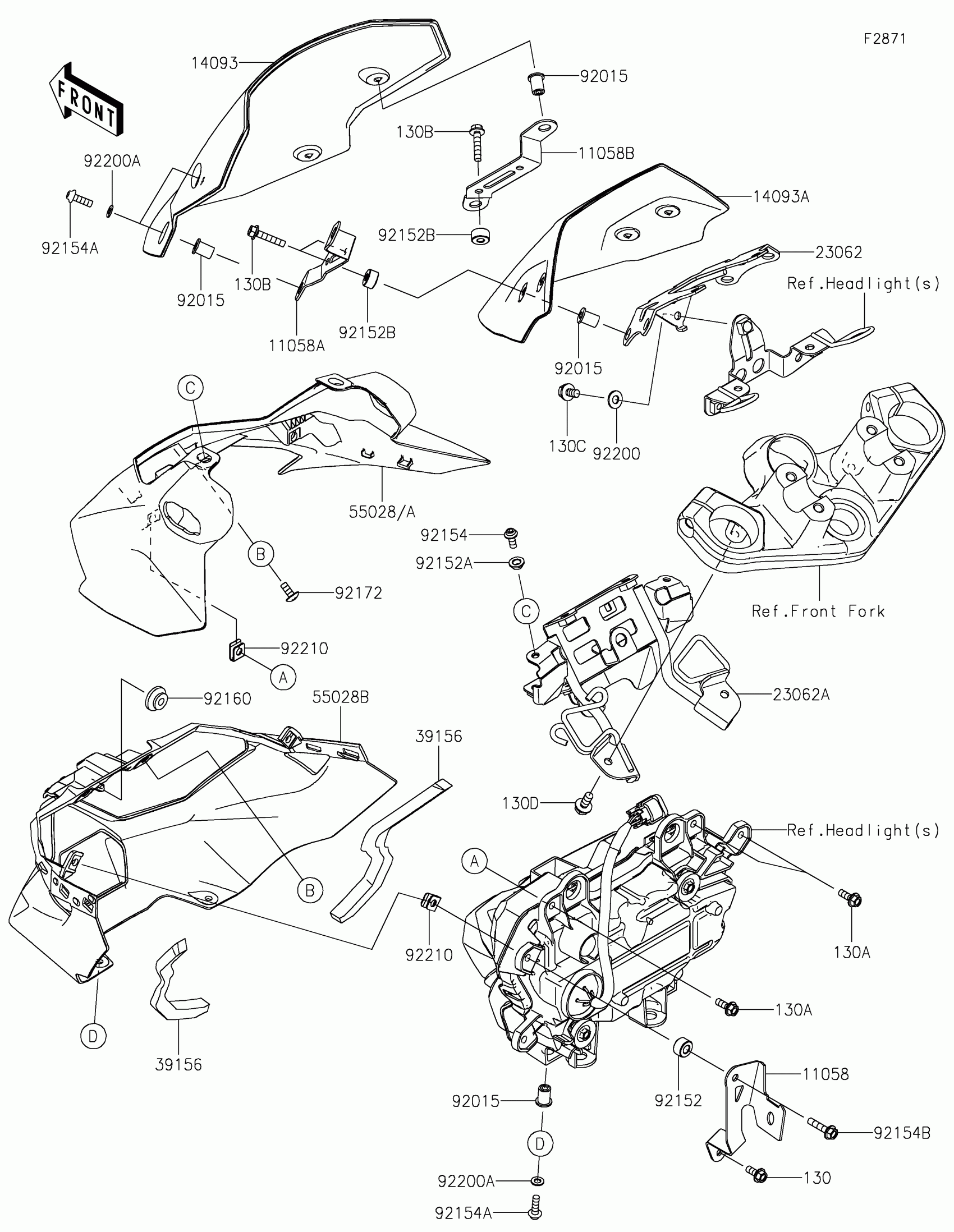

2025 Kawasaki Z500 Se Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,USB

11058-1217

1

$8.19

In stock

11058A

1

$4.58

In stock

11058B

1

$4.58

In stock

14093

COVER,METER

14093-0753

1

$123.42

In stock

14093A

COVER,METER

14093-1536

1

$69.02

In stock

23062

1

$36.90

In stock

23062A

BRACKET-COMP,METER

23062-1485

1

$65.50

In stock

39156

PAD,180X10X10

39156-2870

1

$10.25

In stock

55028A

COWLING,UPP,C.P.RED

55028-0890-A5

1

$167.21

In stock

55028B

COWLING,LWR,M.F.S.BLACK

55028-0891-739

1

$140.85

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92152

COLLAR,6.5X14X8

92152-2352

1
Out of stock

92152A

COLLAR,6X8X4.5

92152-2395

1

$1.10

In stock

92152B

COLLAR,5.2X14X7.6

92152-3796

1

$4.46

In stock

92154

BOLT,SOCKET,5X12

92154-4289

1

$0.93

In stock

92154A

BOLT,SOCKET,5X16

92154-4294

1

$2.25

In stock

92154B

BOLT,FLANGED,5X22

92154-7259

1

$3.83

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92200

WASHER,6.5X14X1.2

92200-0964

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2286

1

$0.44

In stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

130A

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130B

BOLT-FLANGED,5X25

130BA0525

1

$0.66

In stock

130C

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130D

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
