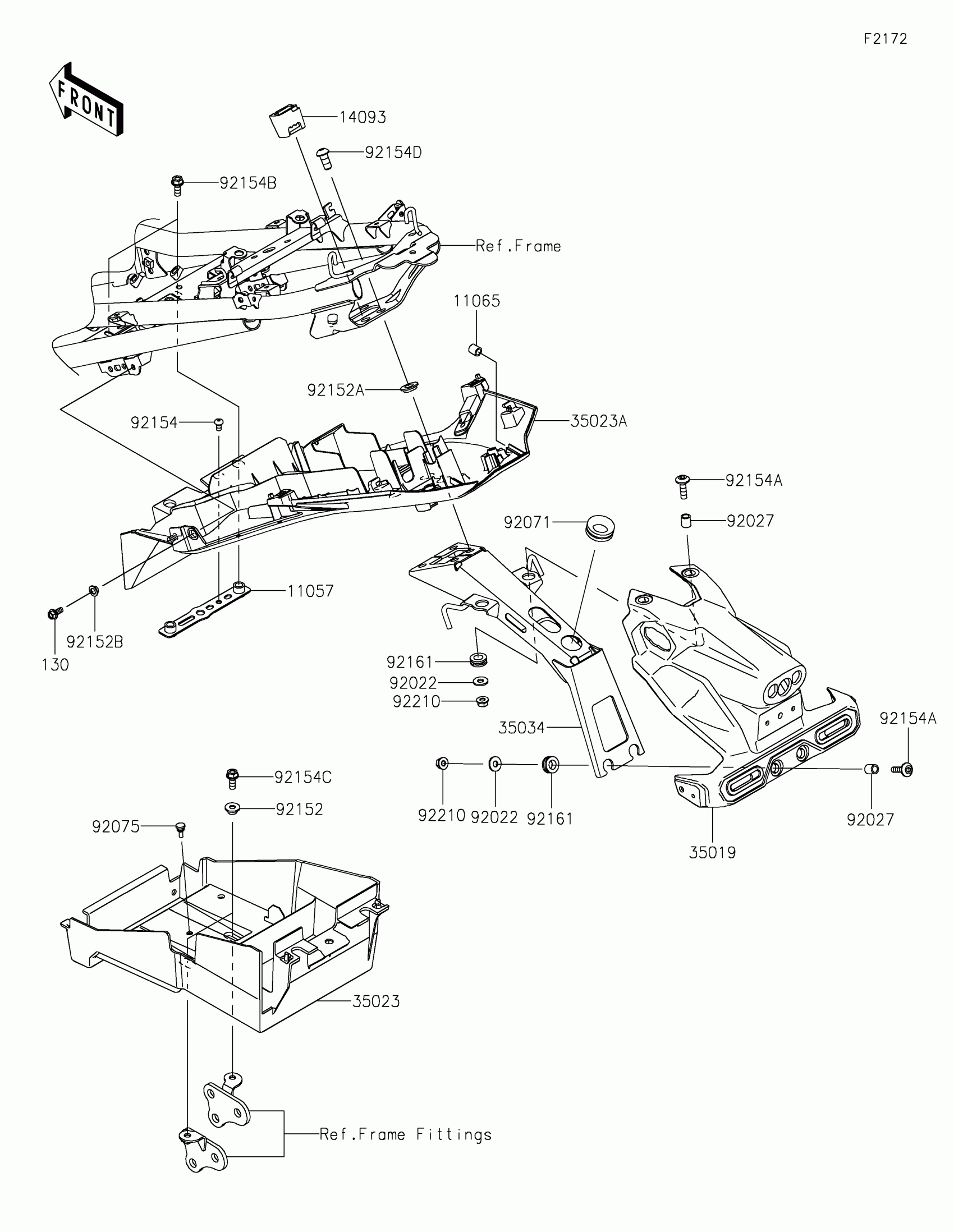

Find the part on the Rear Fender diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1191

1
Out of stock

11065

CAP

11065-0156

1
Out of stock

14093

COVER,RR FENDER

14093-1533

1
Out of stock

35019

FLAP

35019-0639

1
Out of stock

35023

FENDER-REAR

35023-0438

1
Out of stock

35023A

FENDER-REAR

35023-0500

1
Out of stock

35034

REINFORCE

35034-0616

1
Out of stock

92022

WASHER

92022-2247

1
Out of stock

92027

COLLAR,6.8X10X11.5

92027-1210

1
Out of stock

92071

GROMMET

92071-0709

1
Out of stock

92075

DAMPER,6X10X15

92075-1808

1
Out of stock

92152

COLLAR,6.5X10X6.4

92152-2287

1
Out of stock

92152A

COLLAR,10X20X4.5

92152-2392

1
Out of stock

92152B

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1547

1
Out of stock

92154A

BOLT,SOCKET,6X22

92154-2234

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-2895

1
Out of stock

92154C

BOLT,FLANGED,6X16

92154-2900

1
Out of stock

92154D

BOLT,SOCKET,8X18

92154-3739

1
Out of stock

92161

DAMPER,10X18X6.5

92161-2091

1
Out of stock

92210

NUT,FLANGED,6MM

92210-1514

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1
Out of stock
