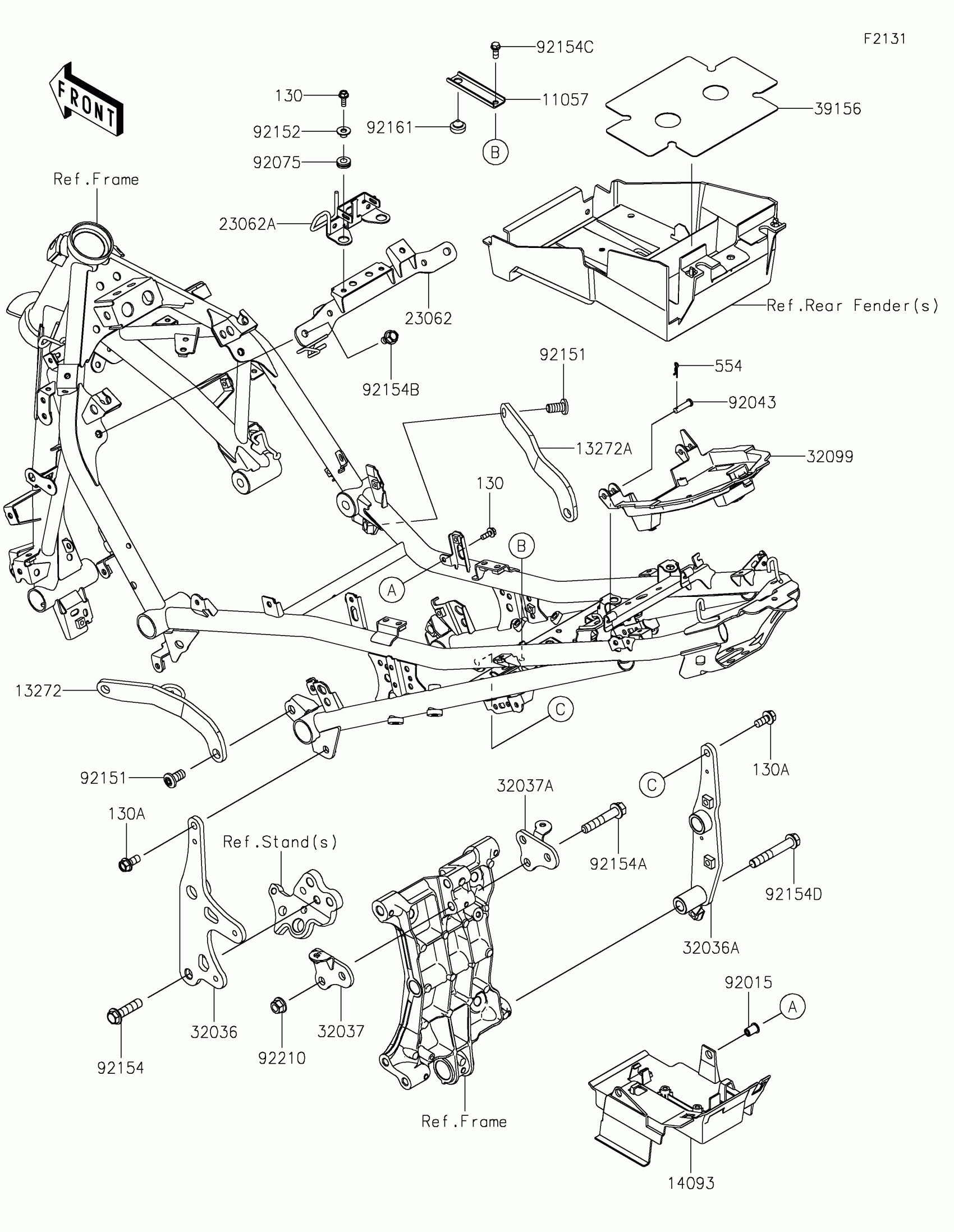

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BATTERY

11057-1605

1

$1.78

In stock

13272

PLATE,LH

13272-2521

1

$3.51

In stock

13272A

PLATE,RH

13272-2522

1

$3.51

In stock

14093

COVER,ECU

14093-1531

1

$42.85

In stock

23062

1

$31.27

In stock

23062A

BRACKET-COMP

23062-1487

1

$11.47

In stock

32036

BRACKET-SWINGARM,LH

32036-0378

1

$49.01

In stock

32036A

BRACKET-SWINGARM,RH

32036-0379

1

$55.90

In stock

32037

1

$16.92

In stock

32037A

1

$16.92

In stock

32099

CASE,SEAT UNDER

32099-0787

1

$10.59

In stock

39156

PAD,BATTERY CASE

39156-2220

1

$16.31

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92043

PIN,6X23

92043-0746

1

$1.68

In stock

92075

DAMPER

92075-161

1

$3.72

In stock

92151

BOLT,SOCKET,10X20

92151-1557

1

$2.29

In stock

92152

COLLAR,5.2X7.8X7.2

92152-2371

1

$2.97

In stock

92154

BOLT,FLANGED,10X40

92154-2812

1

$3.85

In stock

92154A

BOLT,FLANGED,10X54

92154-2813

1

$5.34

In stock

92154B

BOLT-FLANGED,8X14

92154-3851

1

$1.66

In stock

92154C

BOLT,6X14

92154-4129

1

$0.88

In stock

92154D

BOLT,FLANGED,10X65

92154-4394

1

$10.49

In stock

92161

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130A

BOLT-FLANGED,8X18

130CA0818

1

$2.10

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1

$0.92

In stock
