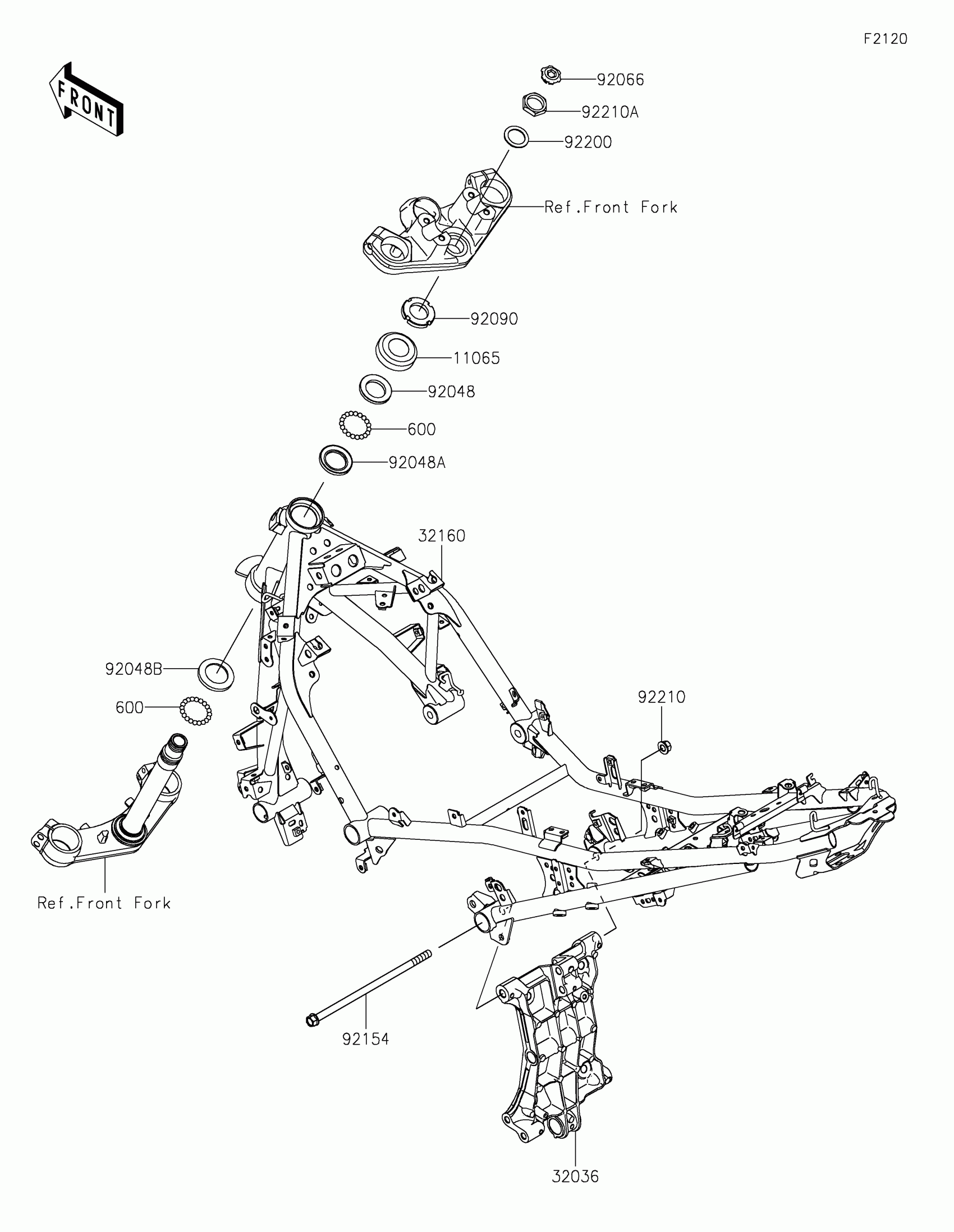

Find the part on the Frame diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1290

1
Out of stock

32036

BRACKET-SWINGARM

32036-0376

1

$448.84

In stock

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-2012-18R

1

$2,054.04

In stock

92048

1

$13.85

In stock

92048A

1

$9.20

In stock

92048B

1

$12.67

In stock

92066

PLUG

92066-0915

1

$2.17

In stock

92090

NUT,30MM

92090-007

1

$9.29

In stock

92154

BOLT,FLANGED,10X231

92154-3738

1

$25.78

In stock

92200

WASHER,25.5X36X1.6

92200-1858

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,25MM

92210-1586

1

$10.14

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
