2017 Kawasaki Z250SL (Indonesia Only) Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2017 Kawasaki Z250SL (Indonesia Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

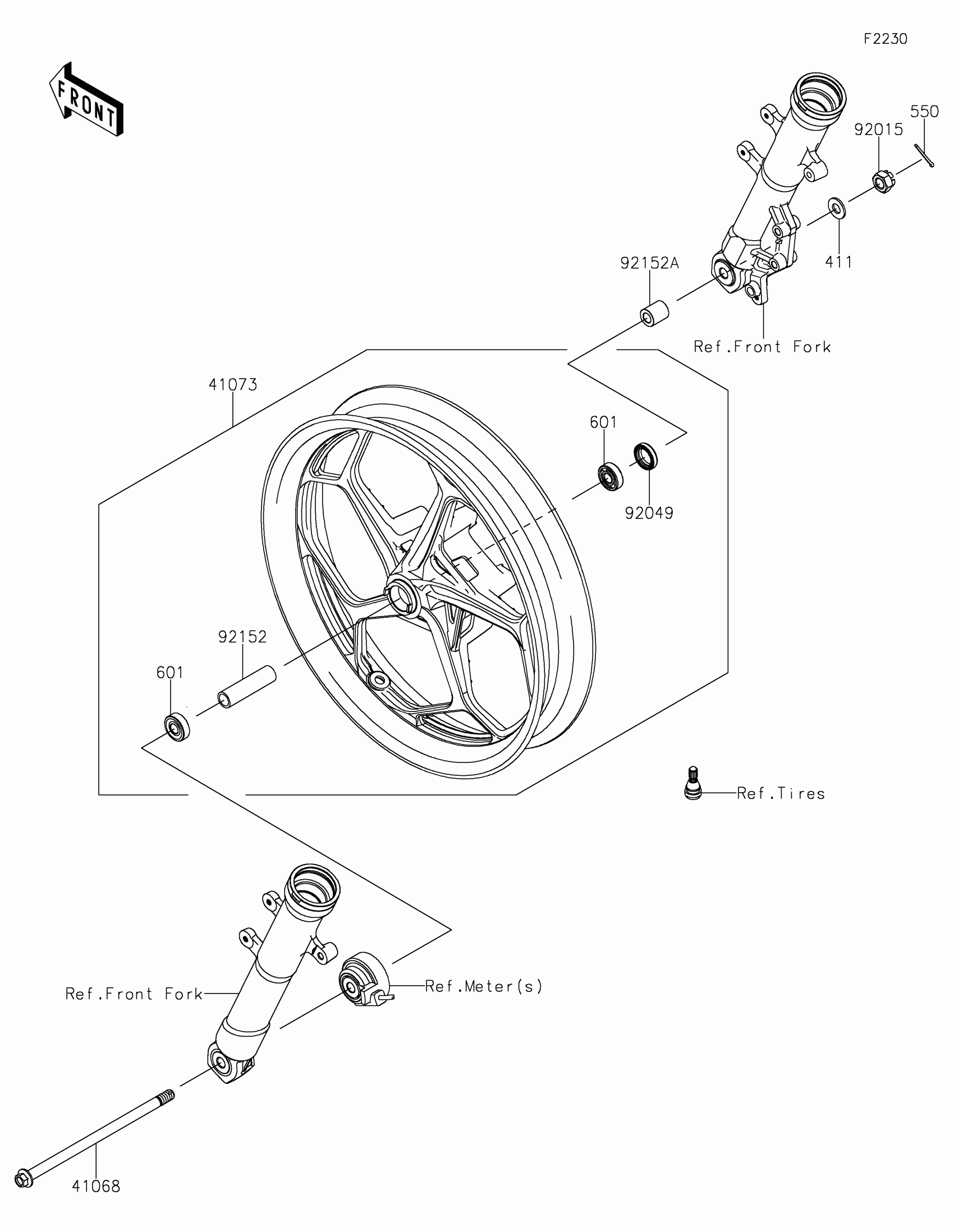

2017 Kawasaki Z250SL (Indonesia Only) Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR

41068-0079

1
Out of stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0610-QT

1
Out of stock

411

WASHER-PLAIN,12MM

411AA1200

1
Out of stock

550

PIN-COTTER,3.0X30

550AA3030

1
Out of stock

601

BEARING-BALL,#6201UG

601B6201UG

1
Out of stock

92015

NUT,CASTLE,12MM

92015-1870

1
Out of stock

92049

SEAL-OIL

92049-1106

1
Out of stock

92152

COLLAR,12.1X17X76.5

92152-1758

1
Out of stock

92152A

COLLAR,12X22X25

92152-1833

1
Out of stock
