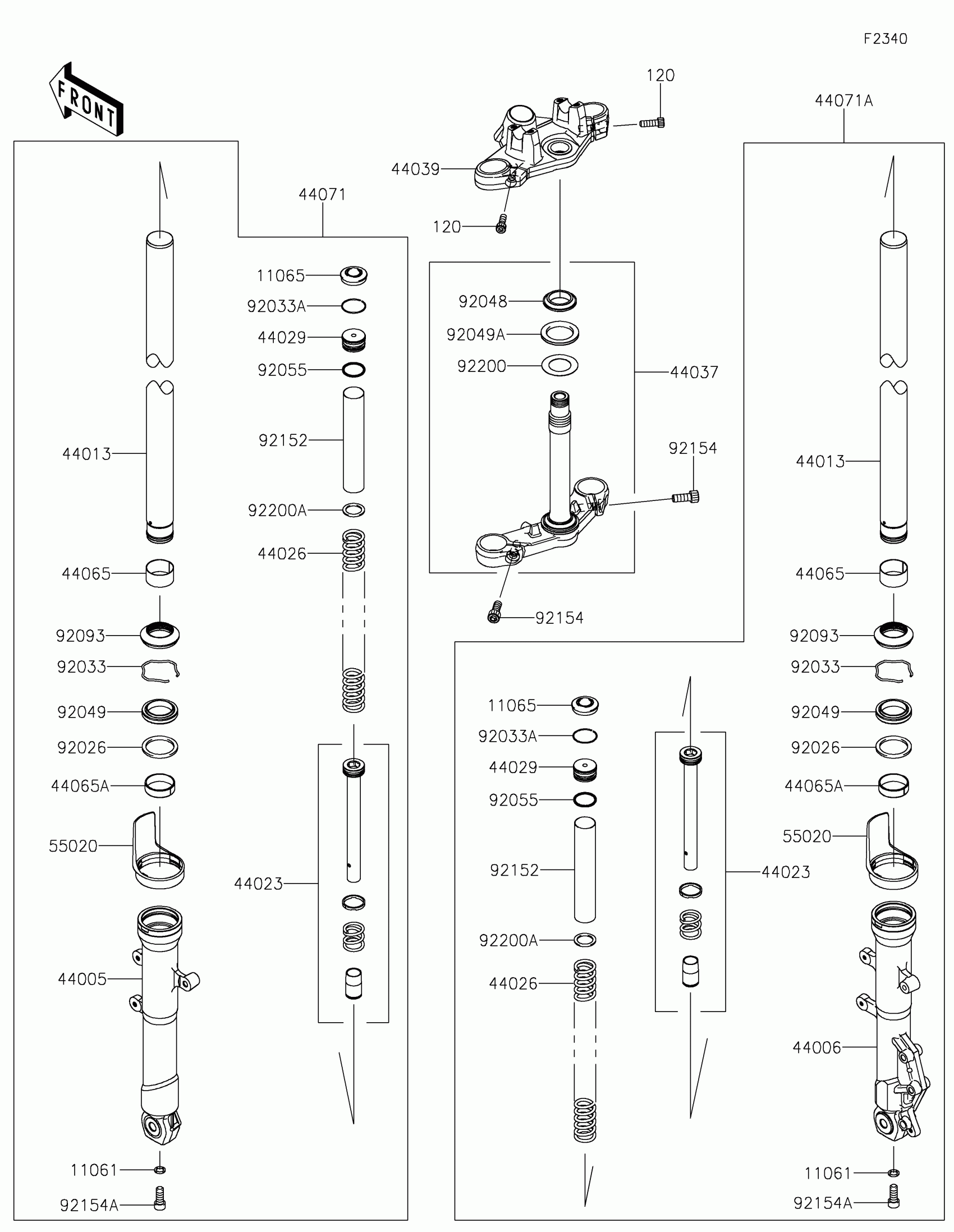

Kawasaki Z250SL (Indonesia Only) Front Fork Diagram

#

Description
Price

11061

GASKET

11061-0846

$3.64

11065

CAP

11065-0847

$8.42

120

BOLT-SOCKET,8X25

120CB0825

$3.57

44005

PIPE-LEFT FORK OUTER,F.S.BLK

44005-0096-18R

$405.83

44006

PIPE-RIGHT FORK OUTER,F.S.BLK

44006-0095-18R

$405.83

44013

PIPE-FORK INNER

44013-0228

$267.17

44023

CYLINDER-SET-FORK

44023-0125

$115.41

44026

SPRING-FRONT FORK

44026-0173

$40.67

44029

SEAT-FORK SPRING

44029-0016

$50.08

44037

HOLDER-FORK UNDER,F.BLACK

44037-0142-21

$272.56

44039

HOLDER-FORK UPPER,F.BLACK

44039-0138-21

$279.44

44065

BUSHING-FRONT FORK

44065-0043

$23.95

44065A

BUSHING-FRONT FORK

44065-0044

$23.95

44071

DAMPER-ASSY,LH,F.S.BLACK

44071-0905-18R

$717.35

44071A

DAMPER-ASSY,RH,F.S.BLACK

44071-0906-18R

$717.35

55020

GUARD

55020-0925

$28.97

92026

SPACER

92026-0741

$7.69

92033

RING-SNAP

92033-0722

$7.41

92033A

RING-SNAP

92033-0723

$5.92

92048

RACE

92048-0019

$13.83

92049

SEAL-OIL

92049-0740

$19.88

92049A

SEAL-OIL

92049-0756

$9.44

92055

RING-O

92055-0755

$5.24

92093

SEAL

92093-0590

$19.69

92152

COLLAR

92152-1824

$23.07

92154

BOLT,SOCKET,10X25

92154-1090

$2.05

92154A

BOLT,SOCKET,10X30

92154-1108

$3.19

92200

WASHER

92200-0835

$3.75

92200A

WASHER

92200-0846

$4.34
