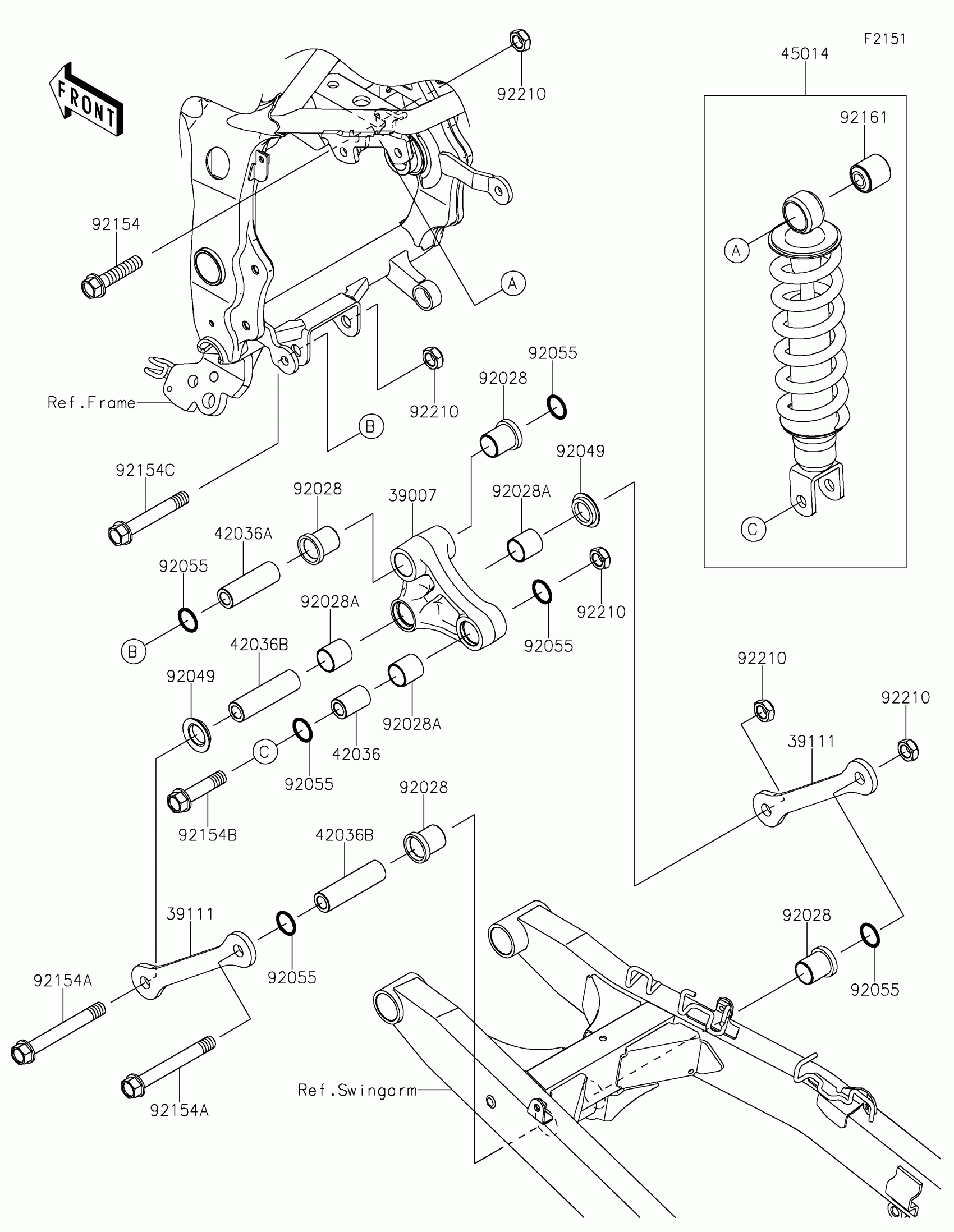

Kawasaki Z250SL (Indonesia Only) Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0376

Unavailable

39111

ROD-TIE,SUSPENSION

39111-0327

Unavailable

42036

SLEEVE,12.1X20X32

42036-1077

$15.76

42036A

SLEEVE,ARM,FR

42036-1078

$23.73

42036B

SLEEVE,12.1X20X74

42036-1102

$29.28

45014

SHOCKABSORBER,P.WHITE

45014-0430-EH

$718.18

92028

BUSHING

92028-1597

$7.27

92028A

BUSHING

92028-1598

$3.50

92049

SEAL-OIL,ARM

92049-1109

$7.08

92055

RING-O,19.8X2.2

92055-0732

$1.10

92154

BOLT,FLANGED,12X55

92154-0362

$3.68

92154A

BOLT,FLANGED,12X98

92154-0941

$12.32

92154B

BOLT,FLANGED,12X52

92154-0942

$8.12

92154C

BOLT,FLANGED,12X80

92154-1308

$10.58

92161

DAMPER,12.1X17X30

92161-1510

$29.89

92210

NUT,LOCK,12MM

92210-1247

$7.58
