1978 Kawasaki Z1R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

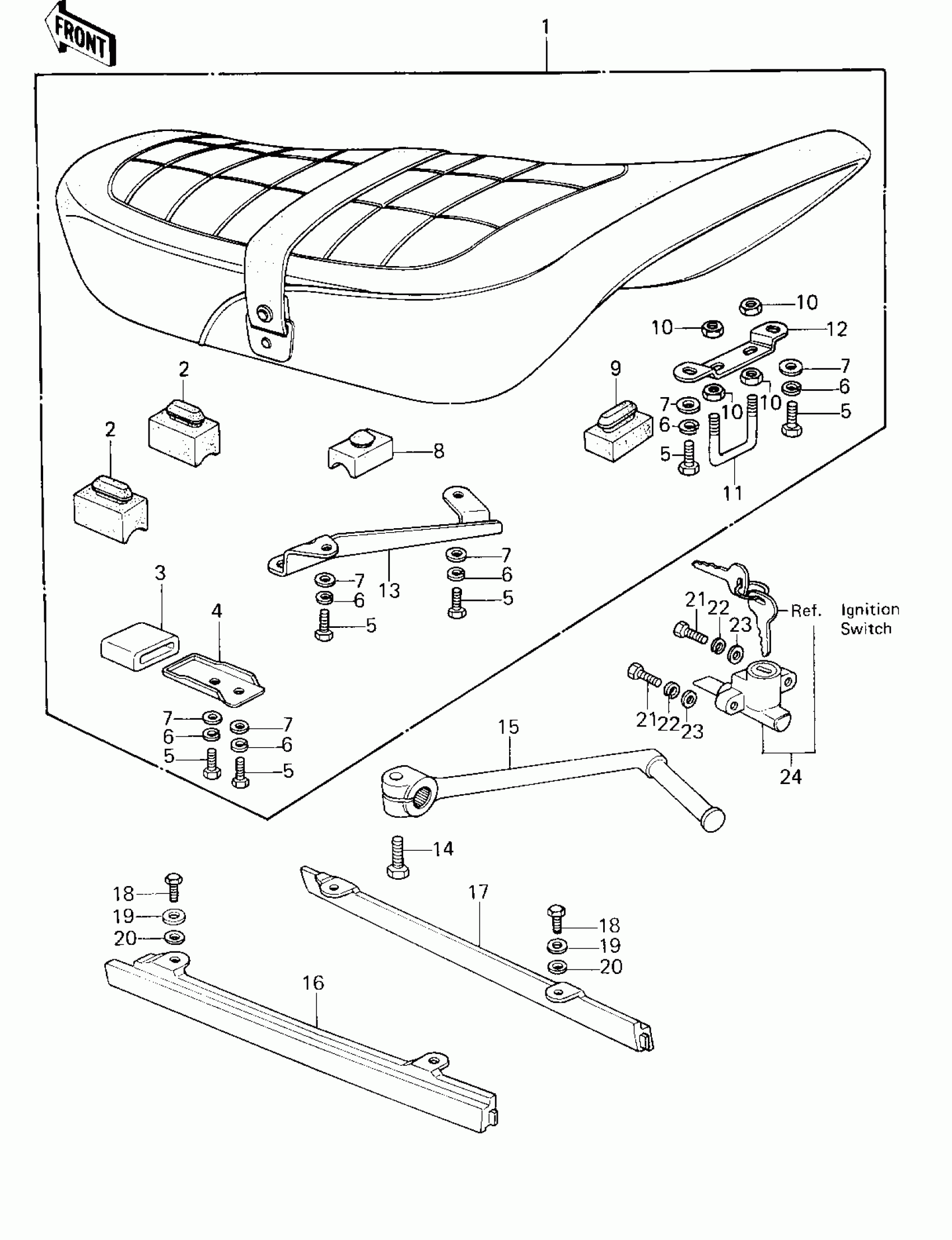

1978 Kawasaki Z1R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY,DUAL

53001-1015

1
Out of stock

2

DAMPER RUBBER,SEAT

92075-139

1
Out of stock

3

DAMPER,SEAT

92075-219

1
Out of stock

4

BRACKET,SEAT

11034-1135

1
Out of stock

5

BOLT-UPSET,6X16

112G0616

1
Out of stock

6

WASHER SPRING 6MM

461F0600

1
Out of stock

7

WASHER PLAIN 6MM

411B0600

1
Out of stock

8

DAMPER RUBBER

92075-1041

1
Out of stock

9

DAMPER

92075-099

1
Out of stock

10

NUT 6MM

312B0600

1
Out of stock

11

HOOK,SEAT

53056-002

1

$15.71

In stock

12

BRACKET, SEAT CATCH

53058-001

1
Out of stock

13

BRACKET,SEAT

11034-1132

1
Out of stock

14

BOLT,HEX HEAD,10X25

113G1025

1
Out of stock

15

LEVER ASSY,KICK

13059-1006

1
Out of stock

16

COVER,FRONT SEAT,L.H

14025-1023-7W

1
Out of stock

17

COVER,FRONT SEAT,R.H

14025-1024-7W

1
Out of stock

18

BOLT-HEX HEAD,6MM

92003-069

1
Out of stock

19

WASHER PLAIN 8MM

410B0800

1
Out of stock

20

DAMPER RUBBER,SIDE C

92075-251

1
Out of stock

21

BOLT-UPSET

112G0516

1
Out of stock

22

WASHER SPRING 5MM

461F0500

1
Out of stock

23

WASHER-PLAIN,5MM

411B0500

1
Out of stock

24

LOCK ASSY,SEAT

27016-5008

1
Out of stock
