1978 Kawasaki Z1R Owner Tools Diagram

← All diagrams

Find the part on the Owner Tools diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

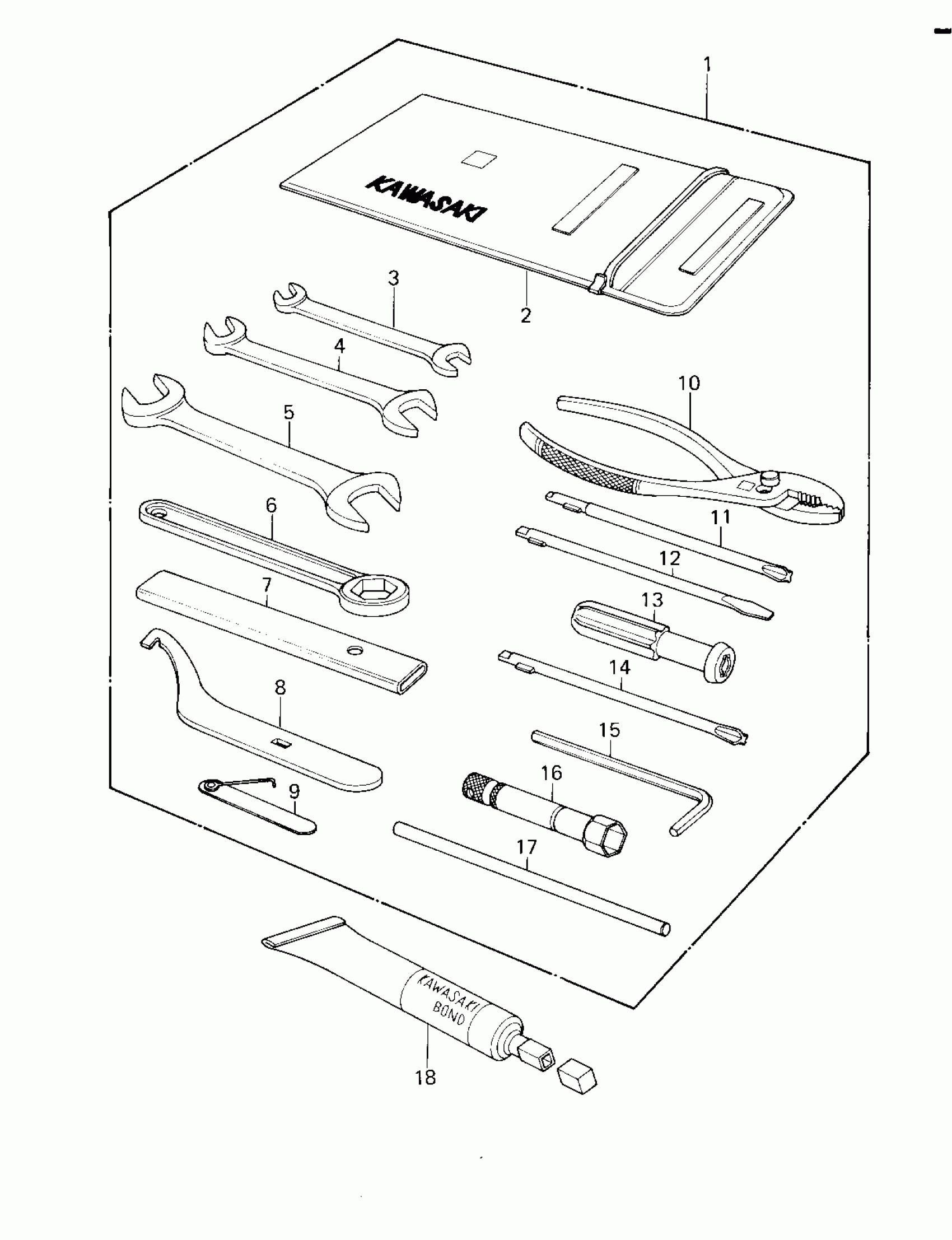

1978 Kawasaki Z1R Owner Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

*** N.L.A.*** (Canada)

56007-1018

1
Out of stock

2

BAG,TOOL

56008-006

1
Out of stock

3

TOOL-WRENCH,OPEN END,8X10

92126-001

1
Out of stock

4

WRENCH,OPEN END,12X13

92126-002

1
Out of stock

5

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

6

TOOL-WRENCH,BOX END,27MM

92110-1147

1
Out of stock

7

TOOL,BAR,BOX END WRENCH

92111-004

1
Out of stock

8

WRENCH,HOOK

92110-1014

1
Out of stock

9

GAUGE,THICKENSS

92128-001

1
Out of stock

10

TOOL-PLIERS

92112-003

1
Out of stock

11

TOOL-DRIVER,#2PHILLIPS&SLOT

92107-1052

1
Out of stock

12

TOOL-DRIVER,#2SLOT

92107-007

1
Out of stock

13

92106-1001 (Canada)

92106-004

1
Out of stock

14

TOOL-DRIVER,#3PHILLIPS

92107-008

1
Out of stock

15

TOOL-WRENCH,ALLEN,5MM

92110-1015

1
Out of stock

16

WRENCH,SPARK PLUG

92108-008

1
Out of stock

17

BAR,SPARK PLUG WRENCH

92111-005

1
Out of stock

18

GASKET-LIQUID,TB1105B,SILVER

92104-002

1
Out of stock
