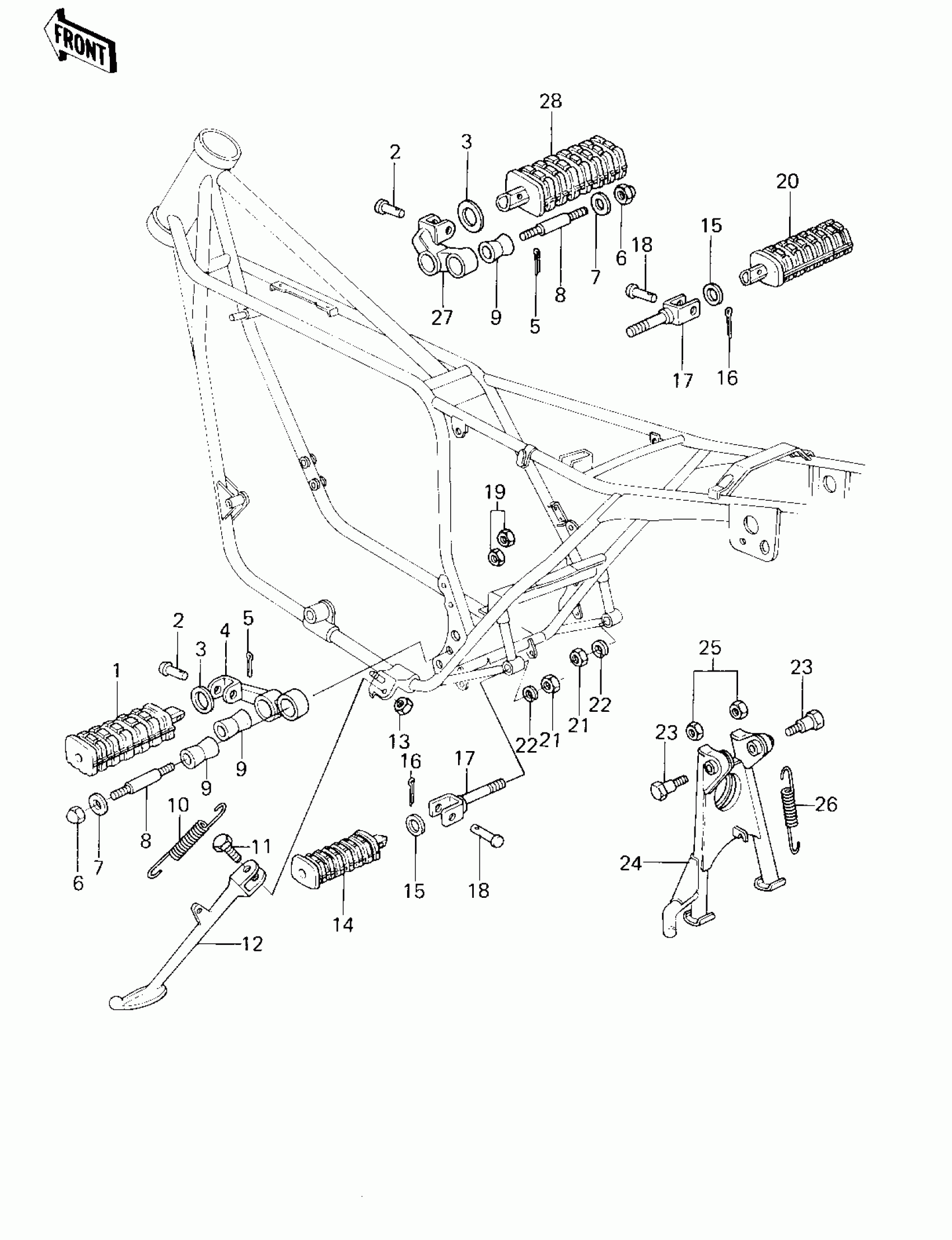

Kawasaki Z1R FOOTRESTS/STANDS ('78 D1) Diagram

#

Description
Price

1

STEP,FOOTREST,FRONT,

34028-1007

Unavailable

2

PIN,8X31

92043-080

$5.03

3

WASHER,25X36X2.3

92022-250

$3.81

4

BRACKET,FOOTREST,L.H

34003-036

Unavailable

5

PIN COTTER 2.5X16

550D2516

$2.27

6

NUT,CAP AND LOCK,8MM

92019-013

$11.31

7

CAP,FOOTRESTBAR

92102-010

$6.47

8

STUD,FOOTREST BAR FI

92004-048

Unavailable

9

DAMPER RUBBER,FOOTRST

92075-140

$8.39

10

SPRING,STAND

34025-005

$5.79

11

BOLT,SIDE STAND

92003-079

$9.37

12

STAND-SIDE

34024-1015

$106.75

13

NUT-HEX-FINE,10MM

315B1000

Unavailable

14

STEP,RR,LH

34028-1009

$35.85

15

WASHER,22.5X30X2.6

92022-181

Unavailable

16

PIN-COTTER,2.0X12

550D2012

$0.89

17

BRACKET,FOOTREST BAR

34029-014

Unavailable

18

PIN,6X28

92043-1464

$6.18

19

NUT-HEX-FINE,10MM

315B1000

Unavailable

20

STEP,RR,RH

34028-1010

$35.85

21

NUT-HEX-FINE,10MM

314B1000

Unavailable

22

WASHER SPRING 10MM

461F1000

Unavailable

23

SHAFT MAIN STAND

34019-014

$32.80

24

STAND-MAIN

34011-1004

Unavailable

25

NUT,14MM

92016-044

Unavailable

26

SPRING,CNT STAND

34023-012

Unavailable

27

BRACKET,FOOTREST,R.H

34003-037

Unavailable

28

STEP,FOOTREST,FRONT,

34028-1008

Unavailable
