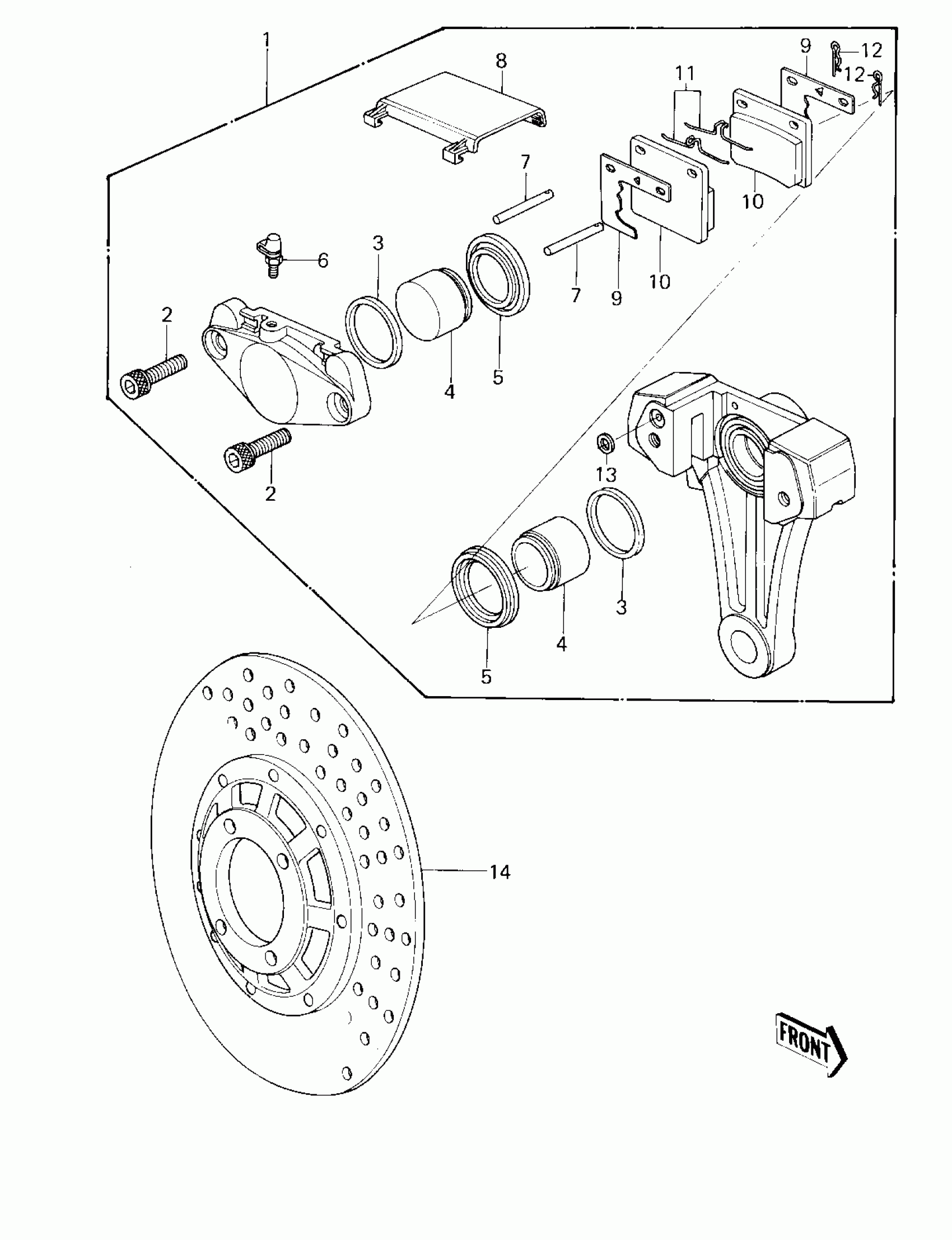

Kawasaki Z1R REAR BRAKE ('78 D1) Diagram

#

Description
Price

1

CALIPER ASSY,REAR

43041-1012

Unavailable

2

BOLT,REAR CALIPER

43033-005

$8.64

3

PACKING,PISTON SEAL

43049-002

$10.56

4

PISTON,REAR CALIPER

43048-008

$159.25

5

DUST SEAL,PISTON

43054-004

$16.17

6

BLEEDER SET

43085-001

$19.94

7

SHAFT-CALIPER

43045-007

$4.88

8

CAP

43024-004

Unavailable

9

SHIM

43076-004

Unavailable

10

PAD SET

43050-1013

$115.45

11

SPRING

43086-002

Unavailable

12

CLAMP,PAD

43084-003

$3.29

13

RING,SEAL

43053-008

$12.86

14

DISC PLATE,REAR

41080-1004

$494.90
