1978 Kawasaki Z1R Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1978 Kawasaki Z1R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

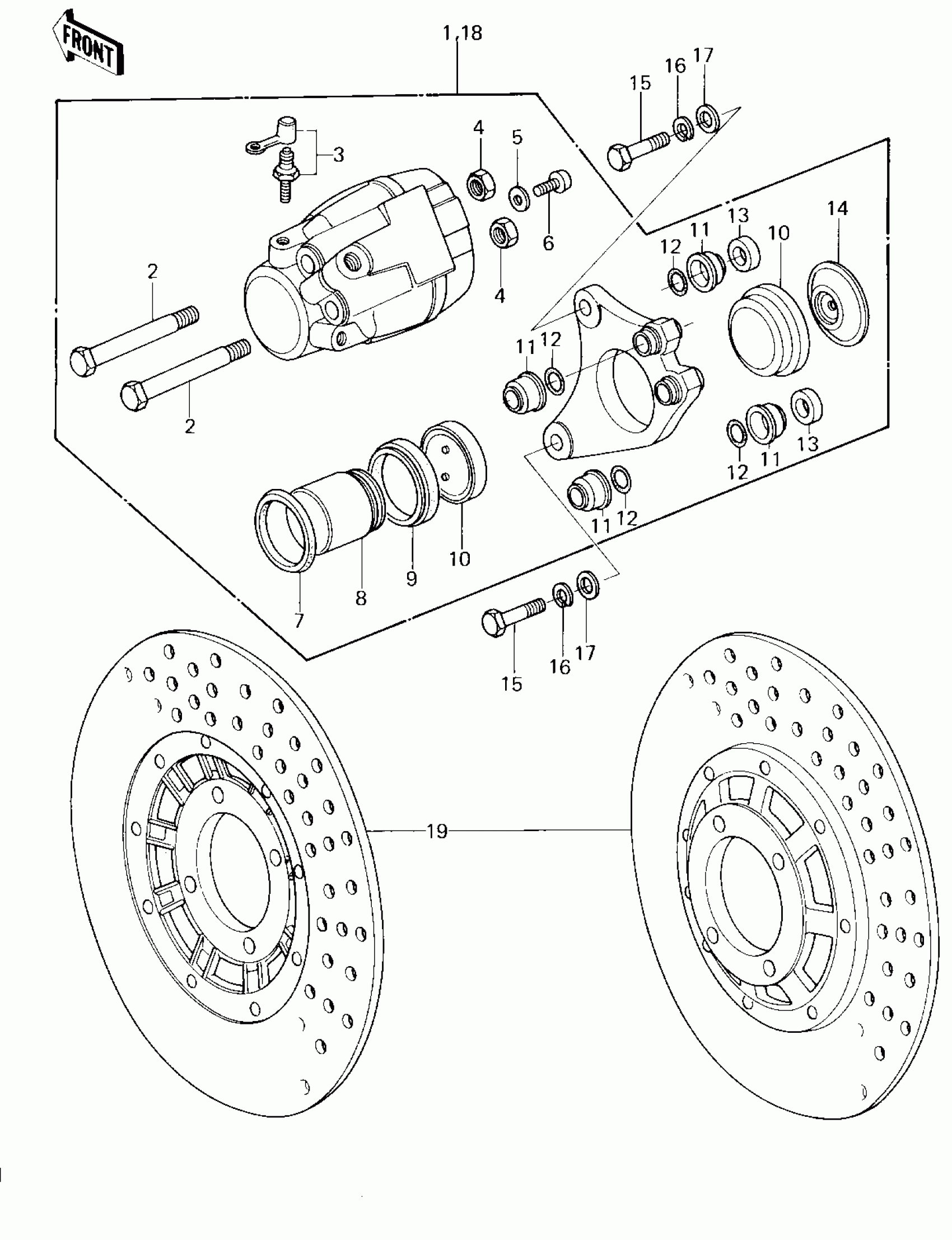

1978 Kawasaki Z1R Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,L.H.FRO

43041-1010

1
Out of stock

2

BOLT

43045-006

1
Out of stock

3

BLEEDER SET

43085-001

1
Out of stock

4

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

5

WASHER SPRING 6MM

461F0600

1
Out of stock

6

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

7

PACKING,PISTON SEAL

43049-001

1
Out of stock

8

PISTON

43048-1002

1
Out of stock

9

DUST SEALD,RUBBER

43054-003

1
Out of stock

10

PAD SET

43050-5003

1
Out of stock

11

DUST SHILD,SHAFT

43052-005

1
Out of stock

12

"0" RING

43053-006

1
Out of stock

13

PLUG

43088-002

1
Out of stock

14

SPACER

43040-004

1
Out of stock

15

BOLT

92007-032

1
Out of stock

16

WASHER SPRING 10MM

461F1000

1
Out of stock

17

WASHER PLAIN 10MM

410B1000

1
Out of stock

18

CALIPER ASSY,R.H,FRO

43041-1011

1
Out of stock

19

DISC PLATE,FRONT

41080-1003

1
Out of stock
