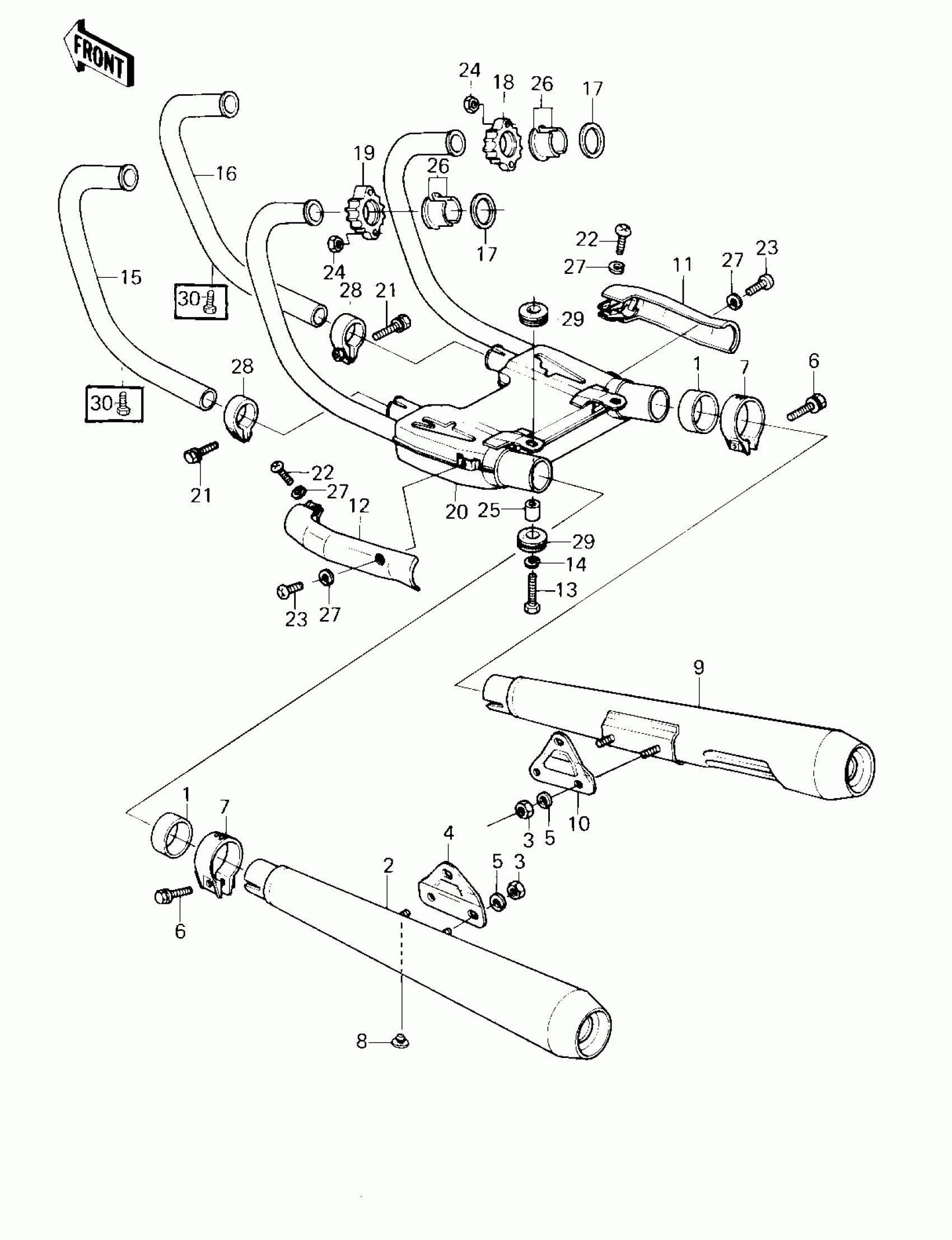

Kawasaki Z1R MUFFLERS ('80 D3) Diagram

#

Description
Price

1

GASKET,MUFFLER CONNEC

11009-1035

Unavailable

2

MUFFLER,L.H

18002-1044

$421.12

3

NUT,8MM

311B0800

$0.67

4

BRACKET,MUFFLER L.H

32069-1037

$20.21

5

WASHER SPRING 8MM

461F0800

$0.40

6

BOLT,HEX HEAD,8X35

92001-1094

$4.98

7

CLAMP,MUFFLER

92037-1055

$21.11

8

DAMPER

92075-015

$5.00

9

MUFFLER,R.H

18002-1034

$515.74

10

BRACKET,MUFFLER.R.H

32069-1038

$20.23

11

COVER,MUFFLER,R.H

14025-1017

Unavailable

12

COVER,MFFLER L.H

14025-1120

Unavailable

13

BOLT,FLANGED,8X35

92001-1577

Unavailable

14

WASHER SPRING 8MM

461F0800

$0.40

15

PIPE,EXHAUST,L.H.INN

18049-1030

Unavailable

16

PIPE,EXHAUST,R.H.INN

18049-1031

Unavailable

17

GASKET,EXHAUST PIPE

11009-1906

$11.06

18

HOLDER,EXHAUST PIPE,

18069-1004

Unavailable

19

HOLDER,EXHAUST PIPE,

18069-1005

$61.29

20

BOX,MUFFLER CONNECT

49070-1018

$465.23

21

BOLT,HEX HEAD,8X30

92001-1067

$3.58

22

SCREW,PAN HEAD,6X20

92009-1019

$3.77

23

SCREW-PAN-CROS,6X8

220C0608

$1.81

24

NUT,LOCK,8MM

92017-013

$10.35

25

COLLAR

92027-1064

$13.60

26

INSERT,EXHAUST PIPE

92027-170

$13.51

27

WASHER-SPRING,6MM,BLACK

461K0600

$0.64

28

CLAMP,EXHAUST PIPE

92037-1056

$7.58

29

DAMPER RUBBER

92075-1042

Unavailable

30

BOLT (6X10)

110R0610

$3.44
