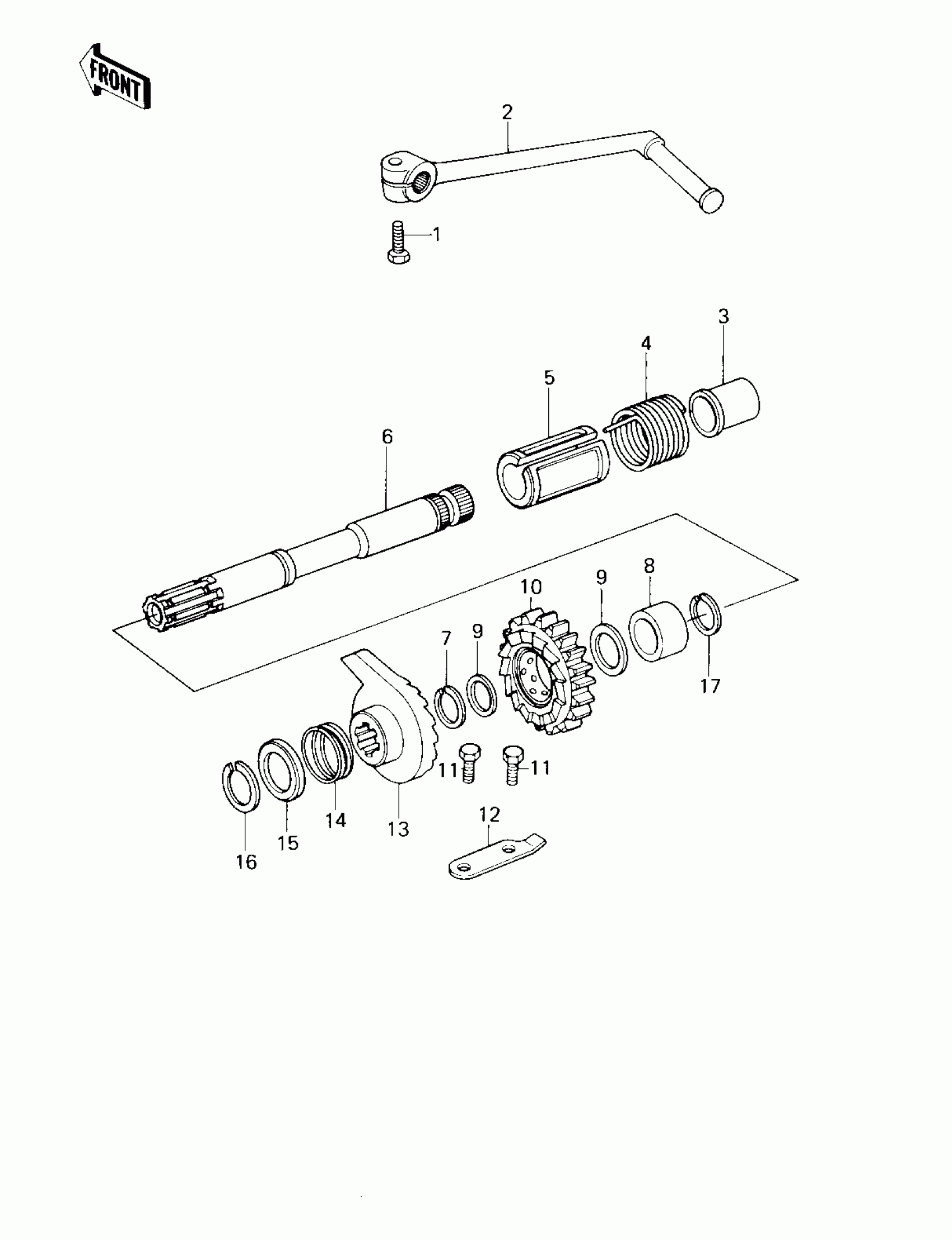

Kawasaki Z1R KICKSTARTER MECHANISM ('80 D3) Diagram

#

Description
Price

1

BOLT,HEX HEAD,10X25

113G1025

Unavailable

2

LEVER ASSY,KICK

13059-1006

Unavailable

3

PLUG

92074-037

Unavailable

4

SPRING,KICKSTARTER

92082-004

Unavailable

5

GUID,KICK SPRING

13070-1008

Unavailable

6

SHAFT,KICKSTARTER

13066-1004

Unavailable

7

RING-SNAP,20X25.5X1.2

92033-025

$4.96

8

COLLAR,KICKSHAFT

92028-126

$30.02

9

WASHER,PLAIN,22MM

92022-207

Unavailable

10

GEAR,KICKSTARTER

59051-1006

$75.07

11

BOLT-UPSET

112G0614

$1.96

12

STOPPER,KICKSTARTER

13072-012

Unavailable

13

RATCHET,KICK SHAFT

13078-011

Unavailable

14

SPRING RATCHET

92081-104

$10.23

15

CAP,KICKSTARTER

92102-008

Unavailable

16

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

17

CIRCLIP-TYPE-C,22MM

480J2200

$5.00
