Description

Price

1

STEP-ASSY,FR,RH

34028-1018

Unavailable

2

PIN,8X35.5

92043-115

$9.51

3

WASHER,25X36X2.3

92022-250

$5.00

4

HOLDER,L H FIRST STE

34003-1055

$72.19

5

PIN COTTER 2.5X16

550D2516

$2.79

6

NUT,CAP AND LOCK,8MM

92019-013

$14.88

7

CAP,FOOTRESTBAR

92102-010

$8.49

8

STUD,FOOTREST BAR FI

92004-048

$14.37

9

DAMPER RUBBER,FOOTRST

92075-140

$11.03

10

NUT-HEX-FINE,10MM

315B1000

$0.58

11

HOLDER,R.H FTRST STE

34003-1056

$52.52

12

STEP-ASSY,FR,RH

34028-1018

Unavailable

13

BRACKET,STEP

32054-1021

Unavailable

14

STEP,RR,LH

34028-1009

$35.18

15

BOLT,HEX HEAD,10X60

113B1060

Unavailable

16

WASHER,22.5X30X2.6

92022-181

Unavailable

17

PIN-COTTER,2.0X12

550D2012

$1.11

18

PIN,6X28

92043-1464

$8.10

19

STEP,RR,RH

34028-1010

$35.18

20

NUT,LOCK,10MM

92019-021

$6.11

21

WASHER-PLAIN,10MM

411B1000

$0.93

22

WASHER,8.5X13X1

92022-1028

$3.92

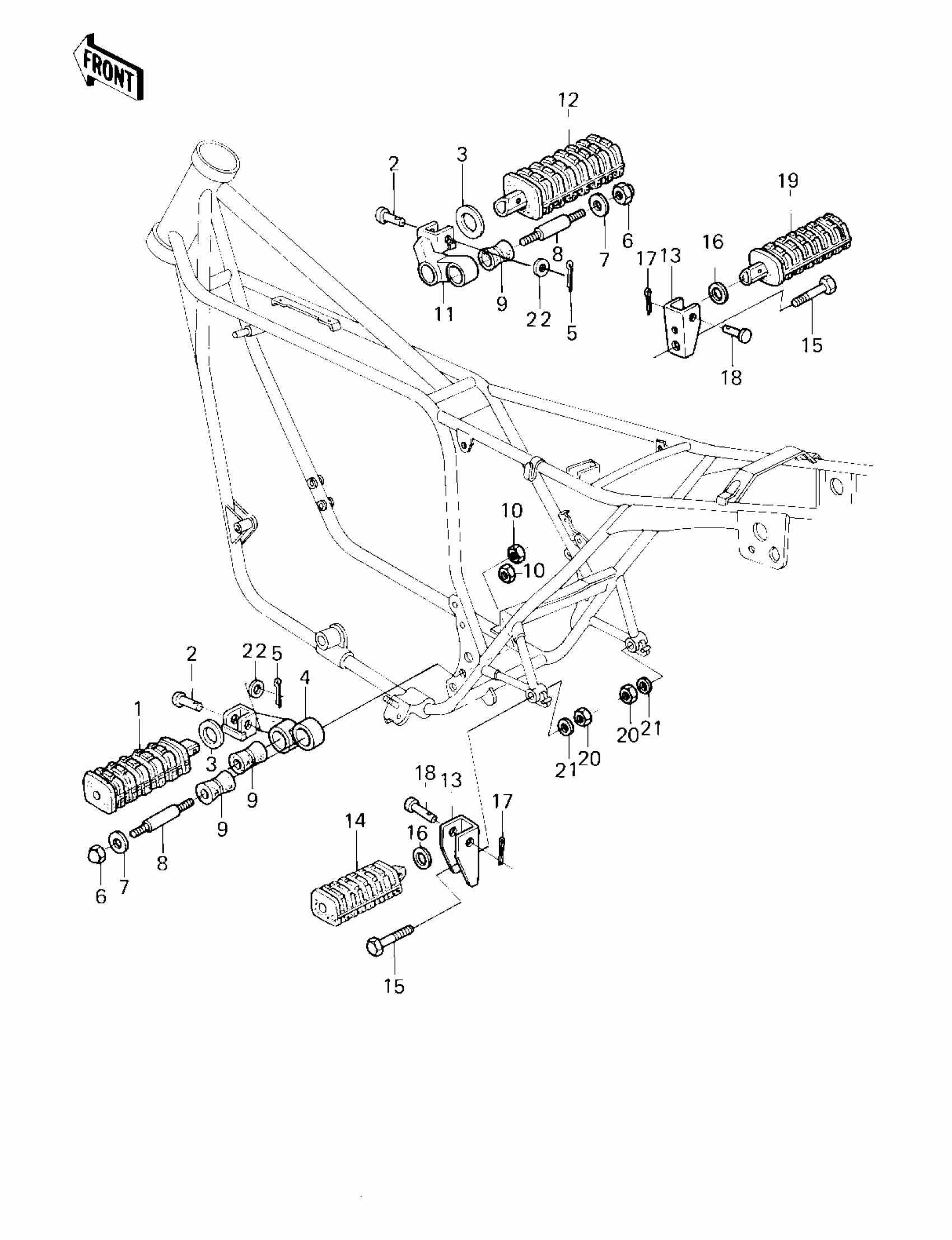

Kawasaki Z1R FOOTRESTS ('80 D3) Diagram

STEP-ASSY,FR,RH

PIN,8X35.5

WASHER,25X36X2.3

HOLDER,L H FIRST STE

PIN COTTER 2.5X16

NUT,CAP AND LOCK,8MM

CAP,FOOTRESTBAR

STUD,FOOTREST BAR FI

DAMPER RUBBER,FOOTRST

NUT-HEX-FINE,10MM

HOLDER,R.H FTRST STE

STEP-ASSY,FR,RH

BRACKET,STEP

STEP,RR,LH

BOLT,HEX HEAD,10X60

WASHER,22.5X30X2.6

PIN-COTTER,2.0X12

PIN,6X28

STEP,RR,RH

NUT,LOCK,10MM

WASHER-PLAIN,10MM

WASHER,8.5X13X1
