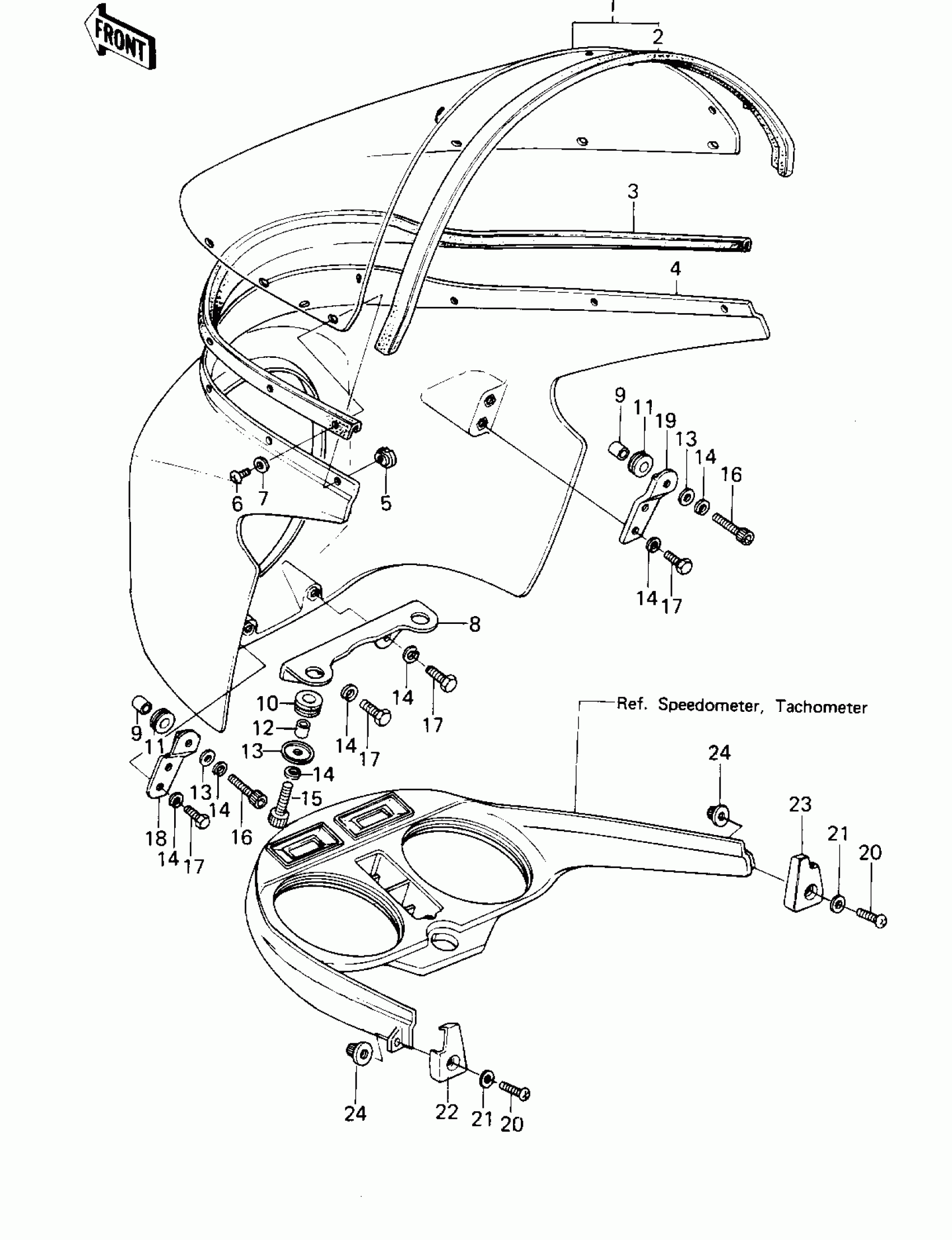

Kawasaki Z1R FAIRING ('80 D3) Diagram

#

Description
Price

1

WINDSHIELD

39155-1001

$672.94

2

TRIM

53044-1003

$25.46

3

TRIM

53044-1002

$37.76

4

COWLING,EBONY

55028-1001-8G

$966.30

5

NUT,5M/M

92015-1025

$4.59

6

SCREW-PAN-CROS,5X12,BLACK

220C0512

$3.55

7

WASHER,5.3X10X0.8

92022-1038

$2.76

8

BRACKET,LOWER

11034-1124

Unavailable

9

COLLAR

92027-241

$4.93

10

GROMMET

92071-1011

Unavailable

11

GROMMET

92071-1010

$3.54

12

COLLAR 6.8X10X10.5

92027-120

$3.81

13

WASHER,PLAIN,6MM

92022-286

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

BOLT-SOCKET,6X20

120P0620

Unavailable

16

BOLT-SOCKET,6X25

120P0625

Unavailable

17

BOLT-UPSET 6X14

112B0614

Unavailable

18

BRACKET,L.H.UPPER

11034-1122

Unavailable

19

BRACKET,R.H.UPPER

11034-1123

Unavailable

20

SCREW-PAN-CROS

220B0512

$0.47

21

WASHER PLAIN 5MM

410B0500

Unavailable

22

CAP,L.H.

11012-1025

Unavailable

23

CAP,R.H.

11012-1026

Unavailable

24

NUT,5M/M

92015-1025

$4.59
