Description

Price

1

GASKET,CYLINDER RUBE

92055-062

$153.96

2

PIN,DOWEL,10X14

92043-1037

$0.74

3

CYLINDER,FLAT BLACK

11005-1009-21

Unavailable

4

PIN,11X14X12.3

92043-1266

$1.08

5

GASKET,CYLINDER BASE

11009-030

Unavailable

6

RUBBER PLUG,CYLINDER

92074-030

Unavailable

7

RING SET,STD

13008-5012

$151.39

7

RING SET,0.020"O/S

13025-5007

$144.46

7

RING SET,0.040"O/S

13024-5008

$116.76

8

PISTON,S.T.D

13001-1005

Unavailable

8

PISTON,0.020 O/S

13029-1003

$190.48

8

PISTON,0.040 O/S

13027-1005

Unavailable

9

PIN-PISTON

13002-022

$58.36

10

CIRCLIP,PISTON PIN

92036-021

$0.49

11

CRANKSHAFT ASSY

13031-1040

Unavailable

12

BOLT,FLANGED,12X40

92001-1146

$9.91

13

PIN-SPRING,4X8

555A0408

$3.92

14

WASHER,BREAKER GOVERNOR

92022-244

$14.09

15

BOLT,SPARK ADVANCER

92001-113

Unavailable

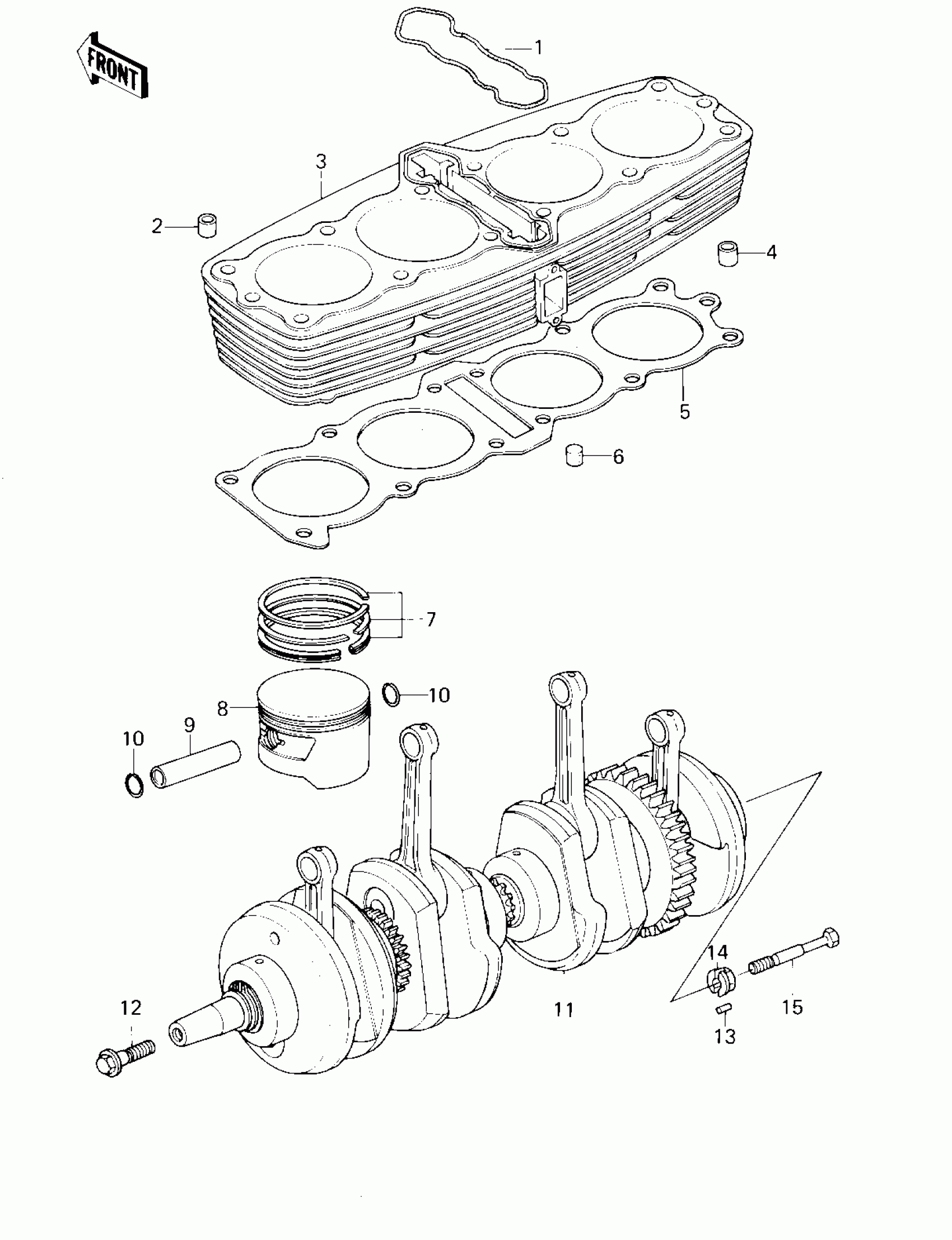

Kawasaki Z1R CYLINDERS/PISTONS/CRANKSHAFT ('80 D3) Diagram

GASKET,CYLINDER RUBE

PIN,DOWEL,10X14

CYLINDER,FLAT BLACK

PIN,11X14X12.3

GASKET,CYLINDER BASE

RUBBER PLUG,CYLINDER

RING SET,STD

RING SET,0.020"O/S

RING SET,0.040"O/S

PISTON,S.T.D

PISTON,0.020 O/S

PISTON,0.040 O/S

PIN-PISTON

CIRCLIP,PISTON PIN

CRANKSHAFT ASSY

BOLT,FLANGED,12X40

PIN-SPRING,4X8

WASHER,BREAKER GOVERNOR

BOLT,SPARK ADVANCER
