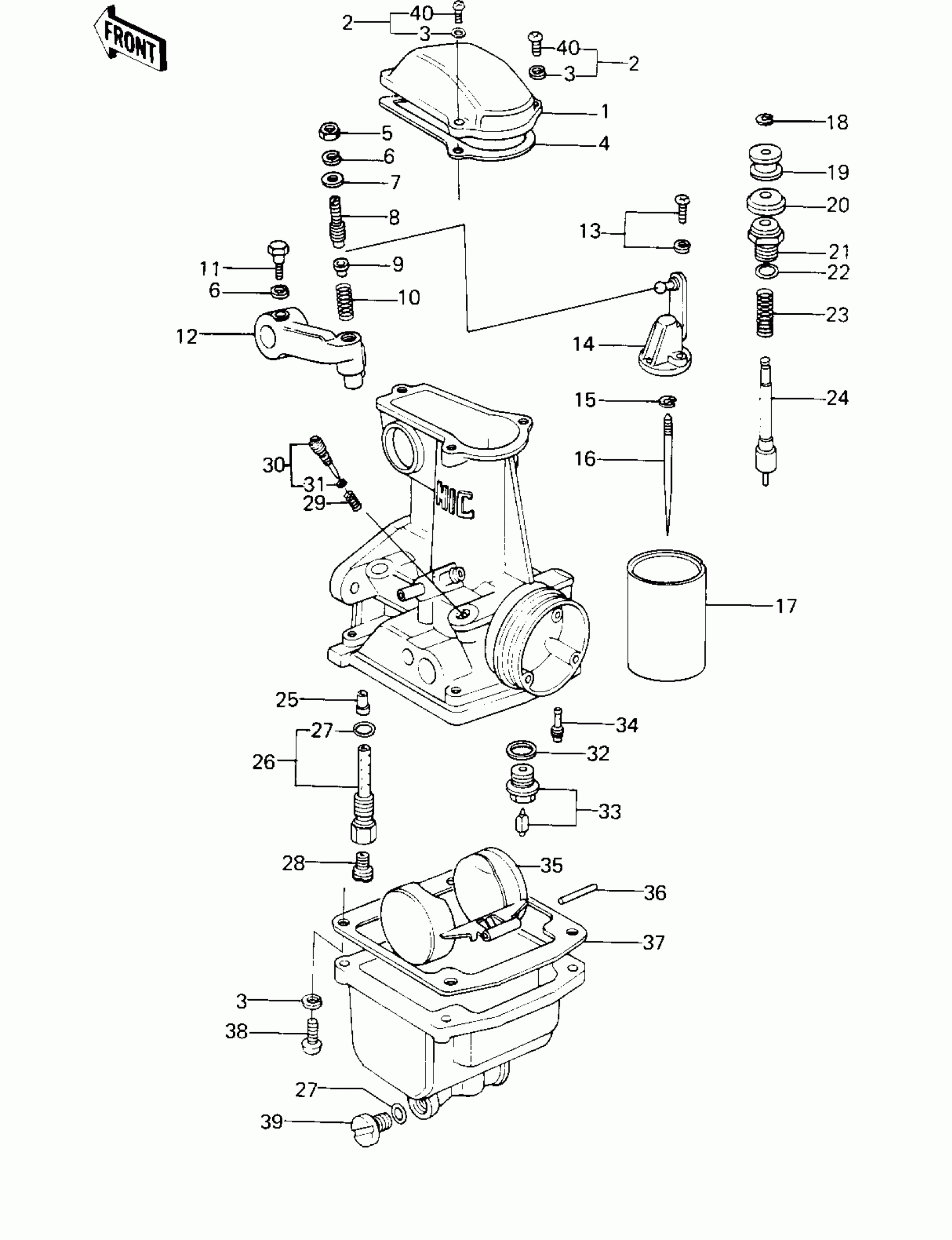

Kawasaki Z1R CARBURETOR PARTS (CANADA) ('80 D3) Diagram

#

Description
Price

1

TOP,MIXING CHAMBER

16005-027

$24.02

2

SCREW-PAN-WS-CROS

223B0414

$1.52

3

WASHER SPRING 4MM

461F0400

Unavailable

4

GASKET,CHAMBER TOP

16019-031

$43.53

5

NUT,5MM

16003-013

$9.40

5

NUT-HEX,5MM

312B0500

Unavailable

6

WASHER SPRING 5MM

461F0500

$0.69

7

WASHER,PLAIN

16039-016

Unavailable

8

SCREW,SLOTTED

16046-012

Unavailable

9

SEAT-SPRING

16057-002

Unavailable

10

SPRING

16040-026

$6.62

11

BOLT,HEX HEAD,5X14

16067-006

Unavailable

12

LEVER,THROTTLE

39075-1001

Unavailable

13

SCREW,PAN HEAD,3X14

16033-031

Unavailable

14

BRACKET,THROTTLE VAL

16007-028

$59.43

15

CLAMP,E-TYPE

16008-010

$9.21

16

JET NEEDLE,5CN15

16009-1013

Unavailable

17

VALVE,THROTTLE,CA1.75 (Canada)

16025-1033

Unavailable

18

CIRCLIP

16076-003

$8.92

19

COLLAR

16073-014

$10.47

20

CAP,STARTER PLUNGER

16039-015

$6.88

21

CAP,STARTER PLUNGER

16012-015

Unavailable

22

O RING,9MM

670B1509

$3.65

23

SPRING,STARTER PLUG

16013-008

Unavailable

24

PLUNGER,STARTER

16016-021

Unavailable

25

NEEDLE JET,O-1

16017-1011

Unavailable

26

*** N.L.A.*** (Canada)

49122-1008

Unavailable

27

"0" RING,MAIN JET COV

16038-016

$3.02

28

MAIN JET,#A105R

92063-1042

$15.74

28

MAIN JET,#A100

92063-1033

Unavailable

28

MAIN JET,#A102.5

92063-1028

Unavailable

28

JET-MAIN NO 107.5R

92063-073

Unavailable

28

MAIN JET,#110R

92063-1038

Unavailable

29

SPRING,PILOT AIR SCREW

16022-007

$8.13

30

SCREW,PILOT ADJUSTIN

16014-1004

Unavailable

31

GASKET,"O"RING

16038-022

$6.89

32

WASHER FLOAT VLV SEAT

16029-004

$3.89

33

FLOAT VALVE ASSY

16030-027

Unavailable

34

JET-PILOT NO.15

92064-1003

Unavailable

35

FLOAT

16031-031

$172.74

36

PIN,FLOAT

16032-003

$6.57

37

GASKET,FLOAT CHAMBER

11009-1563

Unavailable

38

SCREW PAN HEAD 4X16

220B0416

$1.66

39

SCREW,GUIDE

16049-007

Unavailable

40

SCREW-PAN-CROS

220B0414

$4.28
