2019 Kawasaki Z125 Pro Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

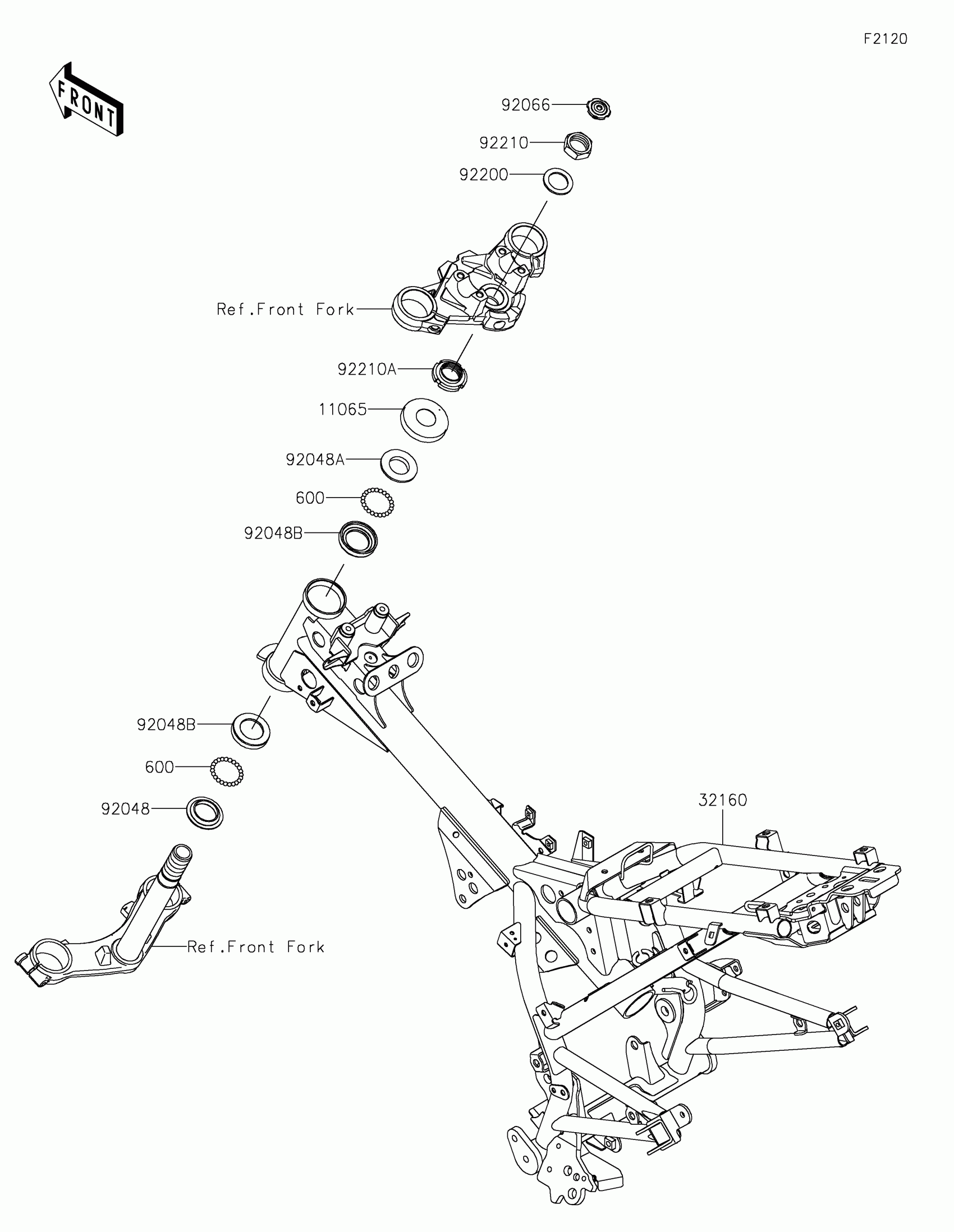

2019 Kawasaki Z125 Pro Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,STEERING

11065-0935

1

$5.81

In stock

32160A

FRAME-COMP,BLACK

32160-1835-10

1

$1,336.25

In stock

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

92047

RACE,STEERING STEM BEARING

92047-013

1
Out of stock

92047A

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-009

1
Out of stock

92066

PLUG,STEERING

92066-0826

1

$1.71

In stock

92200

WASHER,24.5X36X2.3

92200-1752

1
Out of stock

92210

NUT,LOCK,24MM

92210-0467

1
Out of stock

92210A

NUT,24MM

92210-0614

1
Out of stock
