2019 Kawasaki Z125 Pro Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

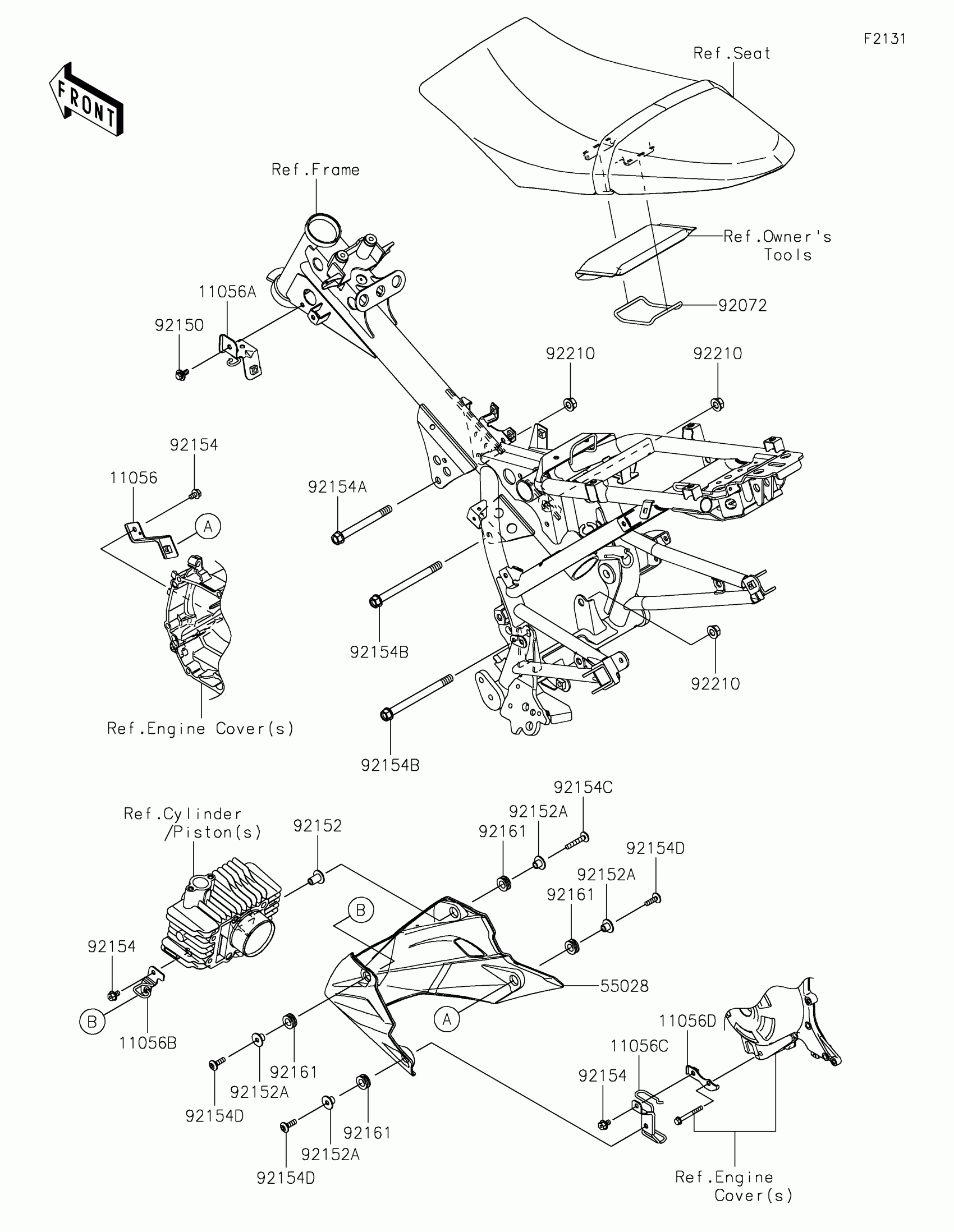

2019 Kawasaki Z125 Pro Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,RR,RH

11056-7592

1
Out of stock

11056A

BRACKET

11056-7593

1
Out of stock

11056B

BRACKET,FR,LH

11056-7607

1
Out of stock

11056C

BRACKET,RR,LH

11056-7608

1
Out of stock

11056D

BRACKET,GENERATOR COVER

11056-7718

1
Out of stock

55028

COWLING,LWR,F.BLACK

55028-0562-6Z

1
Out of stock

92072

BAND,TOOL

92072-0781

1
Out of stock

92150

BOLT,6X14

92150-1340

1
Out of stock

92152

COLLAR,6.5X10X18

92152-1560

1
Out of stock

92152A

COLLAR,6.5X10X10.4

92152-1688

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-1256

1
Out of stock

92154A

BOLT,FLANGED,10X100

92154-1257

1
Out of stock

92154B

BOLT,FLANGED,10X125

92154-1258

1
Out of stock

92154C

BOLT,SOCKET,6X35

92154-2121

1
Out of stock

92154D

BOLT,SOCKET,6X20

92154-2122

1
Out of stock

92161

DAMPER,10X20X8

92161-1828

1
Out of stock

92210

NUT,FLANGED,10MM

92210-0869

1
Out of stock
