2019 Kawasaki Z125 Pro Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2019 Kawasaki Z125 Pro, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

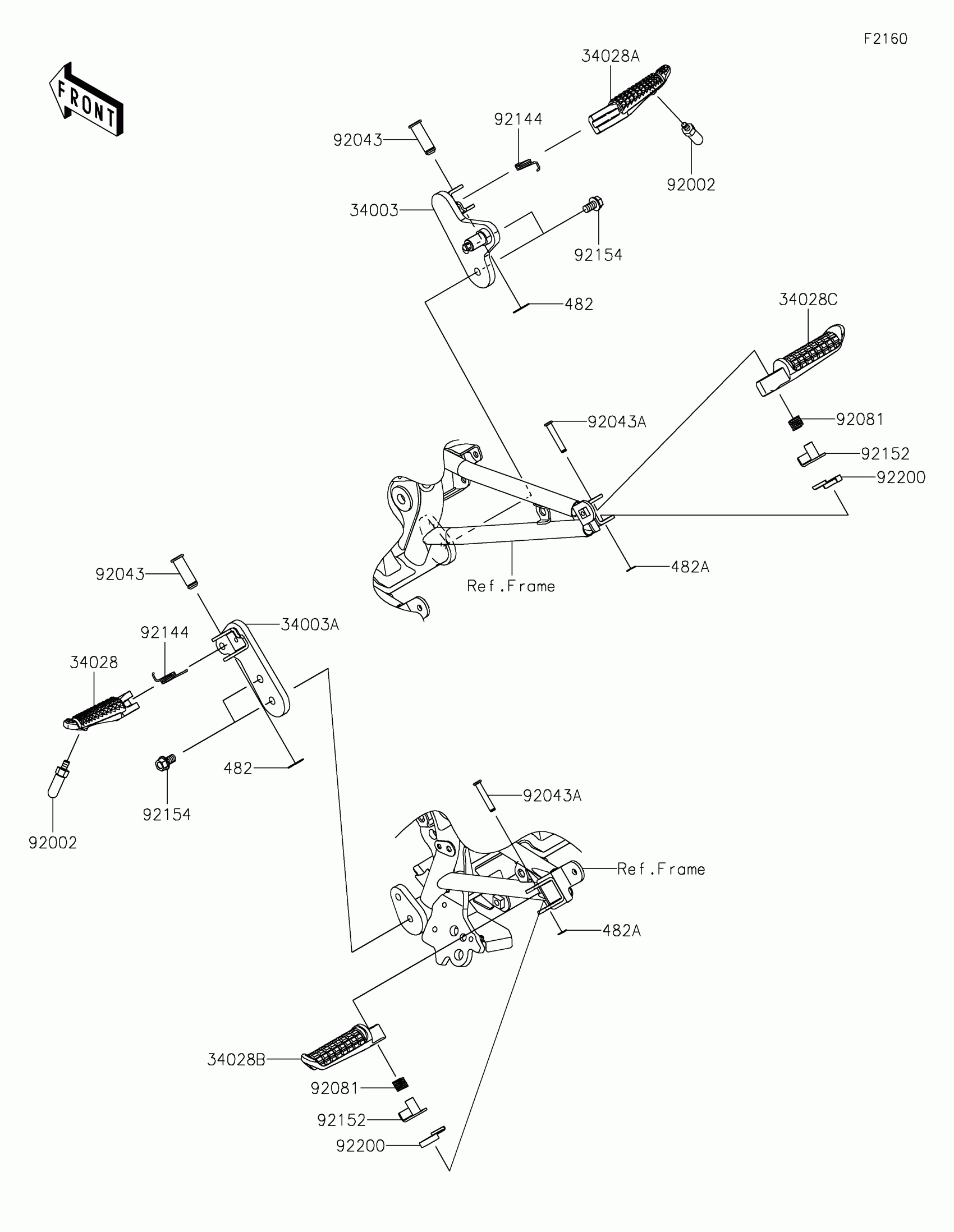

2019 Kawasaki Z125 Pro Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

1

$38.74

In stock

34003A

1

$38.74

In stock

34028

STEP,FR,LH

34028-0318

1

$46.52

In stock

34028A

STEP,FR,RH

34028-0319

1

$52.41

In stock

34028B

STEP,RR,LH

34028-0334

1

$35.01

In stock

34028C

STEP,RR,RH

34028-0335

1

$35.01

In stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA5000

1

$1.20

In stock

92002

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,12X37

92043-0025

1

$4.42

In stock

92043A

PIN,6X33.3

92043-0860

1

$4.85

In stock

92081

SPRING,STEP,RR

92081-1612

1

$3.81

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92152

COLLAR,STEP

92152-0658

1

$9.93

In stock

92154

BOLT,FLANGED,8X20

92154-0471

1

$1.88

In stock

92200

WASHER

92200-0783

1
Out of stock
