2013 Kawasaki Z1000 Rear Fender Diagram

← All diagrams

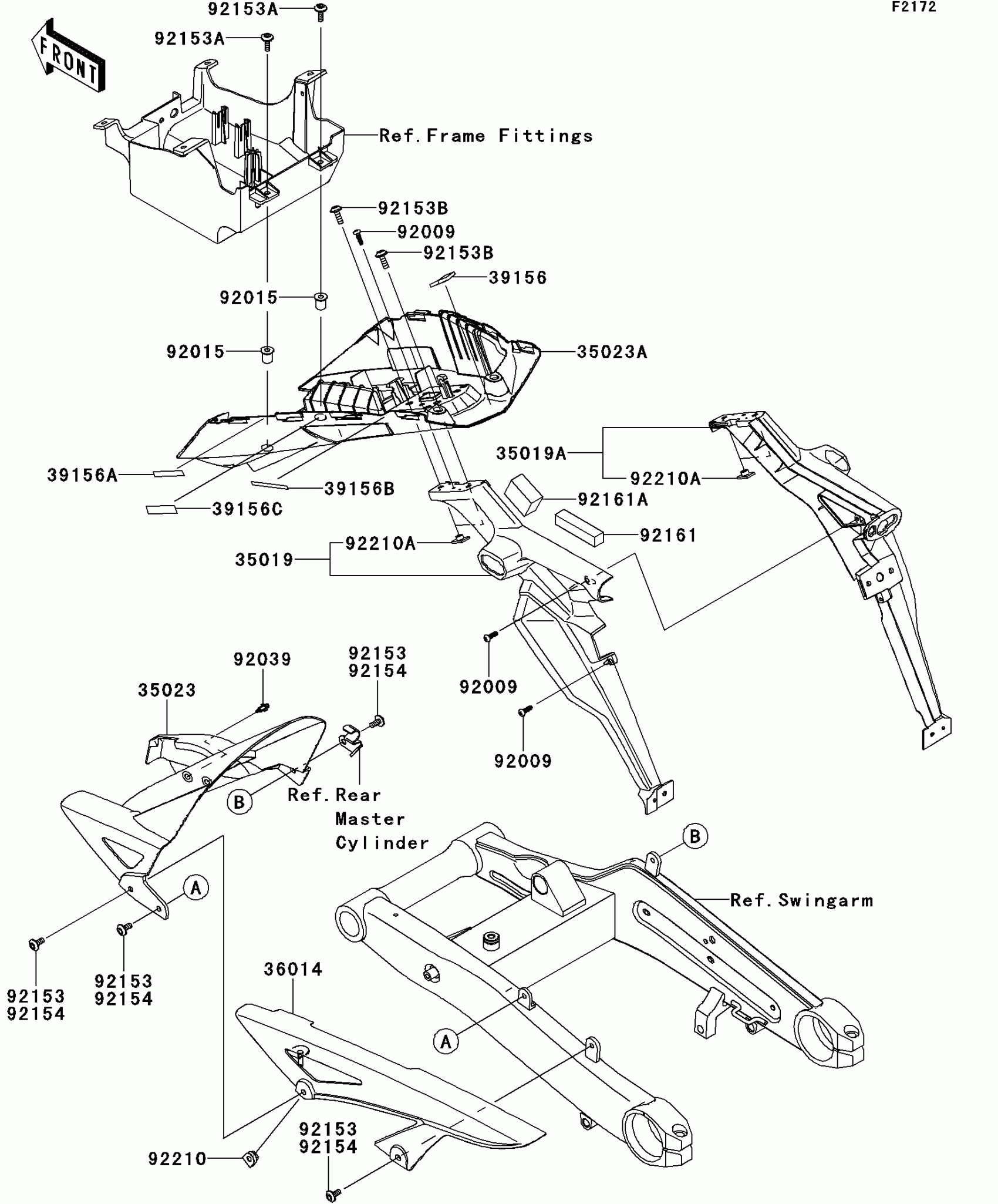

Find the part on the Rear Fender diagram for your 2013 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Z1000 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35019

FLAP,LH

35019-0092

1
Out of stock

35019A

FLAP,RH

35019-0093

1
Out of stock

35023

FENDER-REAR,INNER

35023-0170

1
Out of stock

35023A

FENDER-REAR

35023-0189

1
Out of stock

36014

CASE-CHAIN

36014-0029

1
Out of stock

39156

PAD

39156-0627

1
Out of stock

39156A

PAD,45X8

39156-0633

1
Out of stock

39156B

PAD,5X55

39156-0634

1
Out of stock

39156C

PAD,12X44

39156-0635

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92153A

BOLT,6X18

92153-0816

1
Out of stock

92153B

BOLT,SOCKET,6X18

92153-1675

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0745

1
Out of stock

92161

DAMPER,70X15X15

92161-0891

1
Out of stock

92161A

DAMPER

92161-3752

1
Out of stock

92210

NUT,6MM

92210-0277

1
Out of stock

92210A

NUT,PLATE,6MM

92210-1352

1
Out of stock
