2013 Kawasaki Z1000 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2013 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

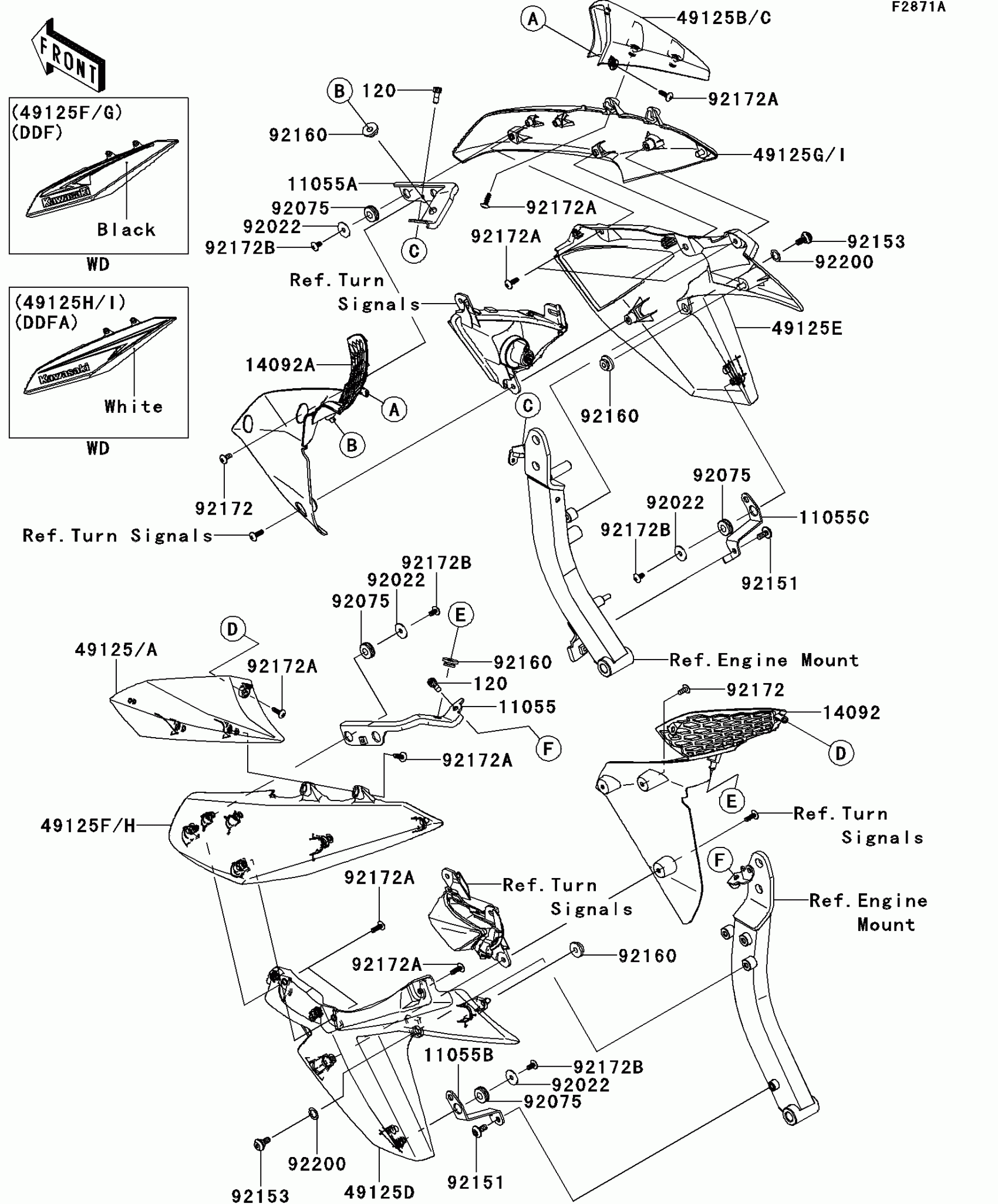

2013 Kawasaki Z1000 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

1

$14.03

In stock

11055A

1

$14.03

In stock

11055B

BRACKET,SHROUD,LH

11055-1946

1

$5.69

In stock

11055C

BRACKET,SHROUD,RH

11055-1947

1

$5.18

In stock

14092

COVER,INNER,LH

14092-0014

1

$40.63

In stock

14092A

COVER,INNER,RH

14092-0015

1

$40.63

In stock

49125A

SHROUD,UPP,LH,G.B.GREEN

49125-0044-40R

1

$101.00

In stock

49125C

SHROUD,UPP,RH,G.B.GREEN

49125-0045-40R

1

$101.00

In stock

49125D

SHROUD,LWR,LH,F.S.BLACK

49125-0048-18T

1

$120.80

In stock

49125E

SHROUD,LWR,RH,F.S.BLACK

49125-0049-18T

1

$120.80

In stock

49125F

SHROUD,MID,LH,M.S.BLACK

49125-5298-660

1

$163.74

In stock

49125G

SHROUD,MID,RH,M.S.BLACK

49125-5299-660

1

$163.74

In stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92075

DAMPER RUBBER

92075-051

1

$2.34

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92153

BOLT,SOCKET,6MM

92153-1956

1

$3.11

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92172

SCREW,5X12,GREEN

92172-0008

1

$1.51

In stock

92172A

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92172B

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

92200

WASHER,10.4X15.9X0.5

92200-0157

1
Out of stock

120

BOLT-SOCKET,6X14

120CB0614

1

$3.28

In stock
