2008 Kawasaki Z1000 Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2008 Kawasaki Z1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

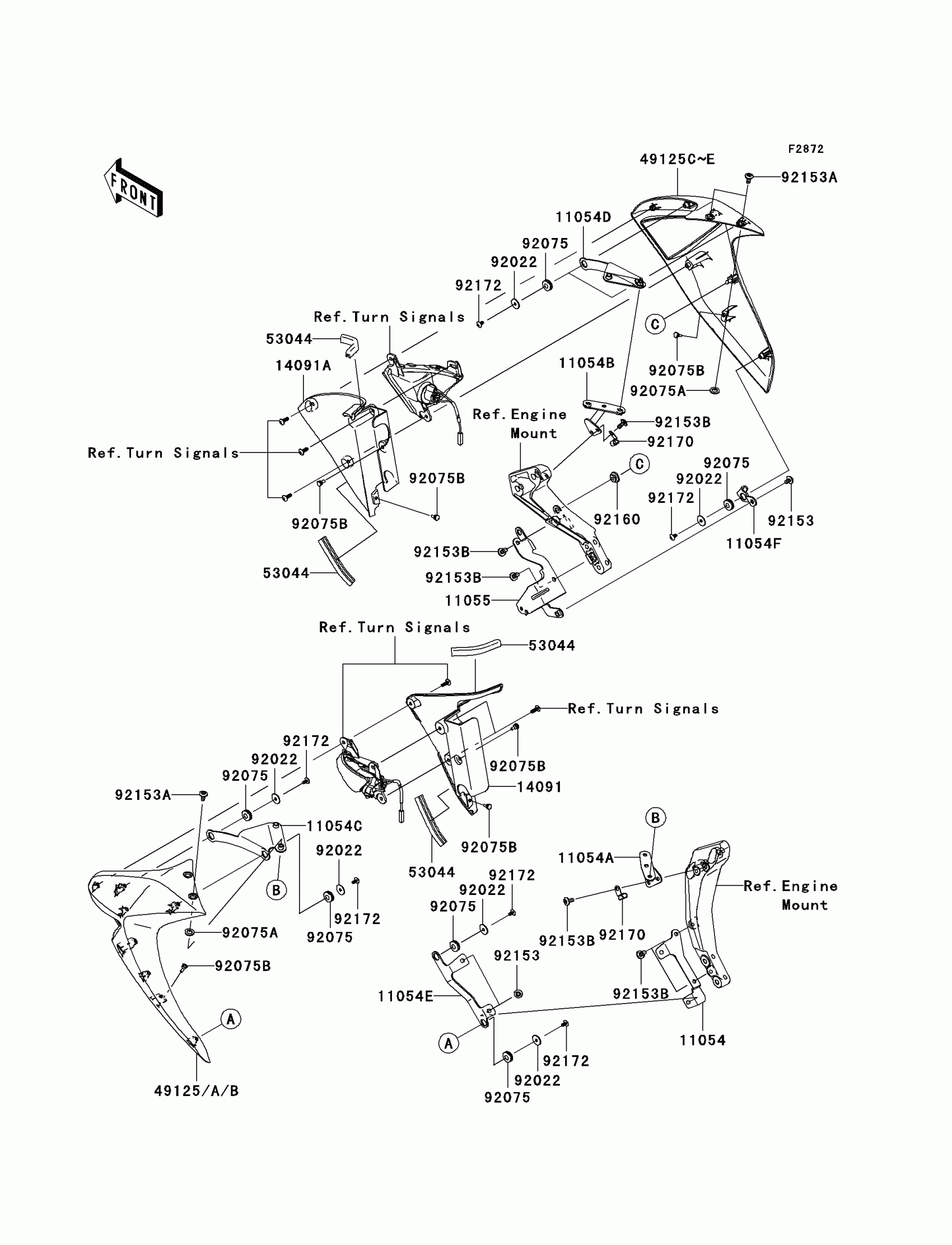

2008 Kawasaki Z1000 Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,SHROUD,LH,LWR

11054-0779

1
Out of stock

11054A

BRACKET,SHROUD,LH,UPP

11054-0797

1
Out of stock

11054B

BRACKET,SHROUD,RH,UPP

11054-0798

1
Out of stock

11054C

BRACKET,SHROUD,LH,UPP

11054-0848

1
Out of stock

11054D

BRACKET,SHROUD,RH,UPP

11054-0849

1
Out of stock

11054E

BRACKET,SHROUD,LH,LWR

11054-1498

1
Out of stock

11054F

BRACKET,SHROUD,RH,LWR

11054-1508

1
Out of stock

11055

BRACKET,SHROUD,RH,LWR

11055-0025

1
Out of stock

14091

COVER,SHROUD,LH

14091-0604

1
Out of stock

14091A

COVER,SHROUD,RH

14091-0605

1
Out of stock

53044

TRIM,L=100

53044-1200

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92075A

DAMPER

92075-1564

1
Out of stock

92075B

DAMPER,6X10X15

92075-1808

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-0410

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92153B

BOLT,SOCKET,6X14

92153-1612

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92170

CLAMP

92170-1804

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-1061

1
Out of stock

49125A

SHROUD,LH,P.C.WHITE

49125-0022-667

1
Out of stock

49125B

SHROUD,LH,L.GREEN

49125-0022-777

1
Out of stock

49125D

SHROUD,RH,P.C.WHITE

49125-0023-667

1
Out of stock

49125E

SHROUD,RH,L.GREEN

49125-0023-777

1
Out of stock
