2009 Kawasaki Z1000 (European) Ignition Switch Diagram

← All diagrams

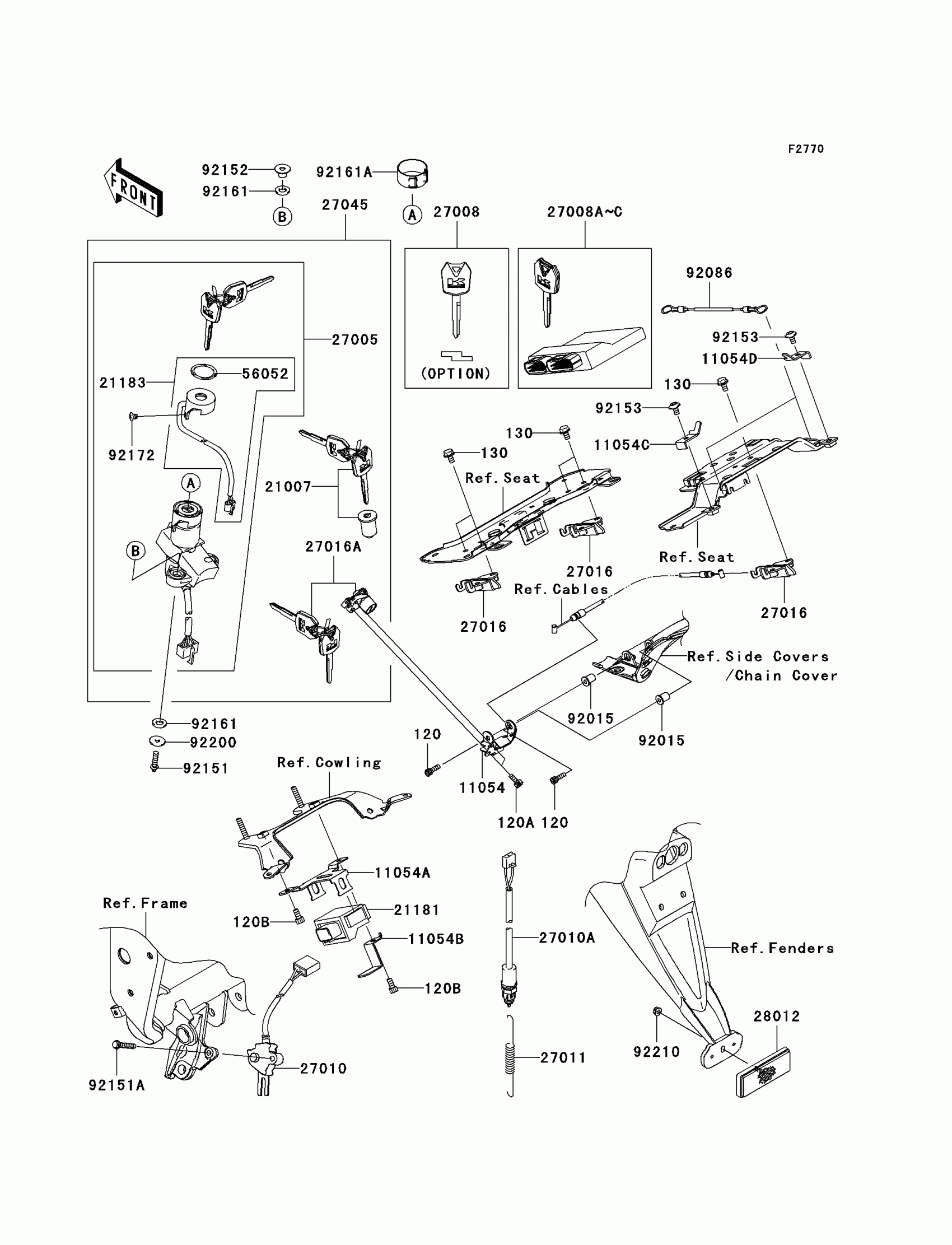

Find the part on the Ignition Switch diagram for your 2009 Kawasaki Z1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Z1000 (European) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X16

120CA0516

1
Out of stock

120A

BOLT-SOCKET,5X12

120CB0512

1
Out of stock

120B

BOLT-SOCKET,6X12

120CB0612

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

11054

BRACKET,SEAT LOCK

11054-0510

1

$21.64

In stock

11054A

BRACKET,IMMOBI AMP.

11054-0904

1

$16.05

In stock

11054B

BRACKET,IMMOBI AMP.

11054-0905

1

$8.44

In stock

11054C

1

$13.39

In stock

11054D

1

$13.39

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5056

1
Out of stock

21181

AMPLIFIER,IMMOBI

21181-0004

1
Out of stock

21183

ANTENNA,IMMOBI

21183-0002

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5138

1
Out of stock

27008

KEY-LOCK,BLANK,IMMOBI,SUB

27008-0029

1
Out of stock

27008C

MASTER KEY SET(BLANK),IMMOBI

27008-5054

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0065

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1479

1
Out of stock

27011

SPRING,BRAKE LAMP SWITCH

27011-021

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5310

1
Out of stock

27045

SWITCH-ASSY

27045-5338

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1077

1
Out of stock

56052

MARK,IMMOBI

56052-0292

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92086

WIRE,L=150

92086-1075

1
Out of stock

92151

BOLT,TORX,6X22

92151-1946

1
Out of stock

92151A

BOLT,6X35

92151-1982

1
Out of stock

92152

COLLAR

92152-0352

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-0410

1
Out of stock

92161

DAMPER,IGNITION SWITCH

92161-0240

1
Out of stock

92161A

DAMPER,IGNITION SWITCH

92161-0257

1
Out of stock

92172

SCREW,4X8

92172-0188

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
